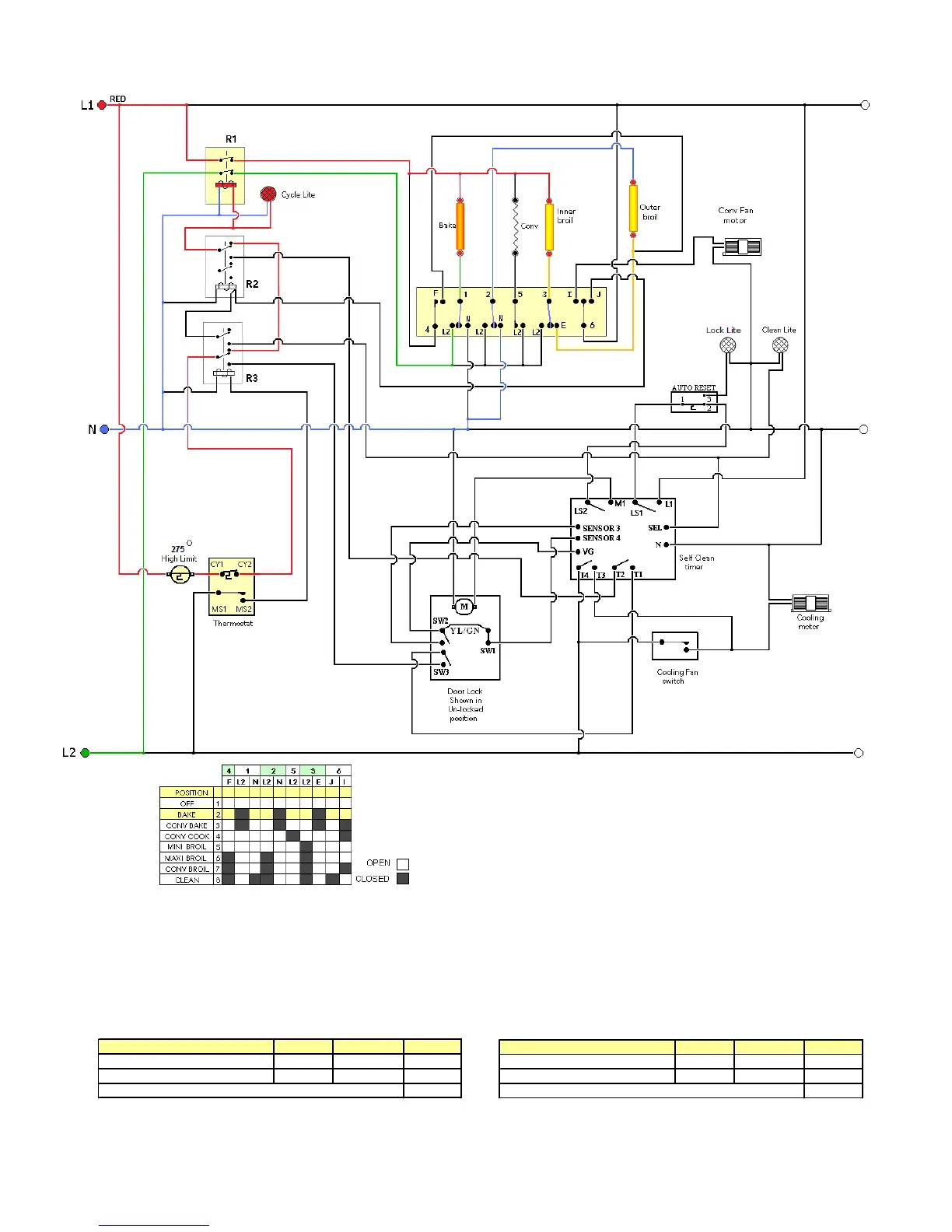

Selector Bake position closes Switches 1-L2, 2-N, and 3-E. The Thermostat closes Switches
Cy1-Cy2, which cycles with the oven temperature powering Relay 1 and the Oven cycle light. When
Relay 1 closes, it powers the Bake Element (208 – 240). Both the Inner and Outer Broil Elements
are in series across a 120v circuit.
240 Volts 208 Volts
240v OHMS [R] WATTS [W] AMPS [I]
Bake element 21.1 2725 11.35
Inner and Outer broil (
in series
)
77.8 739 3.10
Total amps 14.45
208v OHMS [R] WATTS [W] AMPS [I]
Bake element 21.1 2050 9.85
Inner and Outer broil (in series )
77.8 739 2.65
Total amps 12.50
BAKE
11
To Next Page
