VOLTAGE and RESISTANCE READINGS

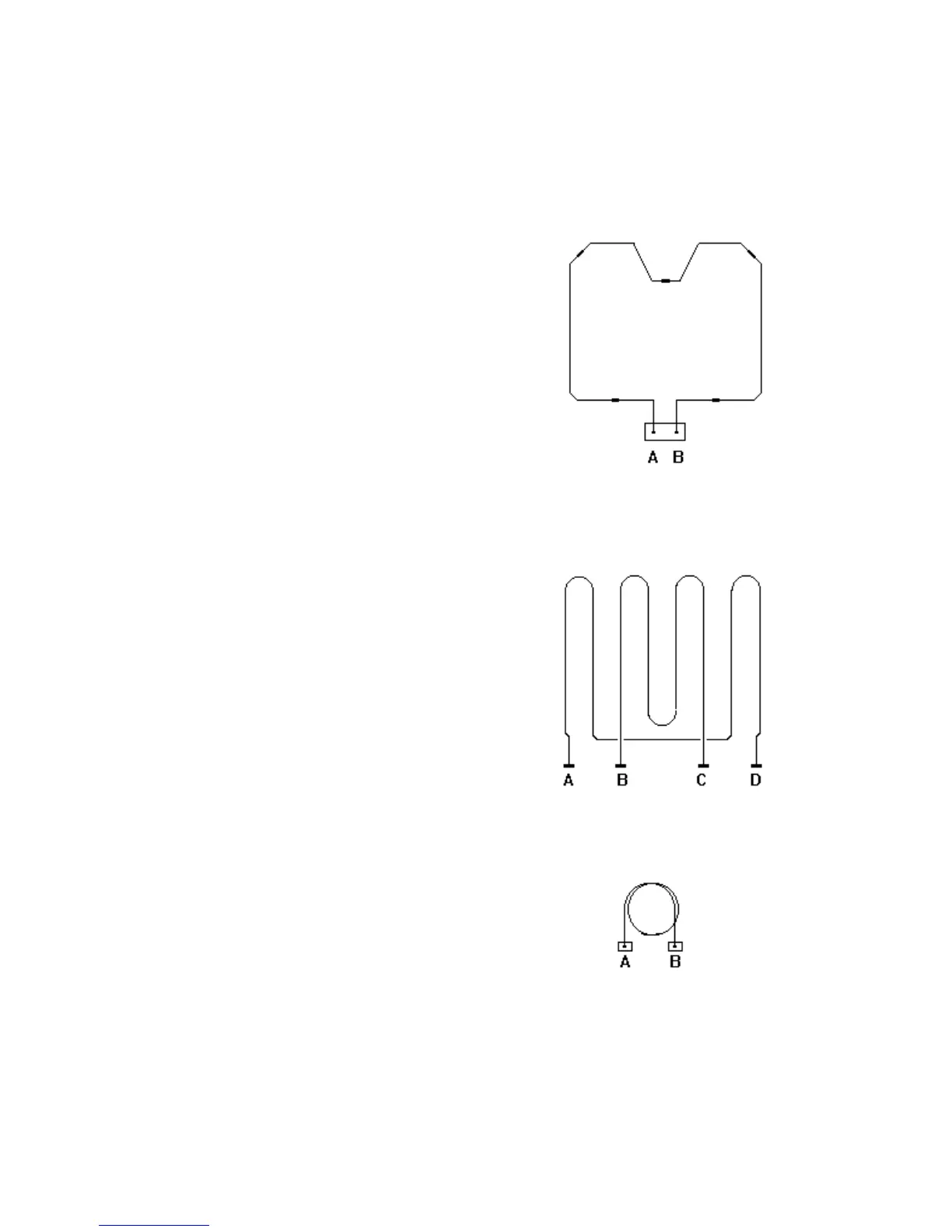

BAKE ELEMENT:
“A” to “B” 21.1 Ohms
“A” to “B” 240VAC during Bake and
Convection Bake.
BROIL ELEMENT:
“A” to “D” ( outside element ) 32.6 Ohms
“A” to “D” 50VAC during Bake and
Convection Bake.
240VAC during Maxi Broil.
240VAC during Convection Broil
240VAC during Self-clean
“B” to “C” ( inside element ) 45.2 Ohms
“B” to “C” 70VAC during Bake and Convection
Bake.
240VAC during Mini Broil
240VAC during Maxi Broil
240VAC during Convection Broil
240VAC during Self-clean
CONVECTION ELEMENT:
“A” to “B” 26 Ohms
“A” to “B” 240VAC during Convection Cook
9
