VDSC 305 SELF CLEAN LOCK ( Con’t )

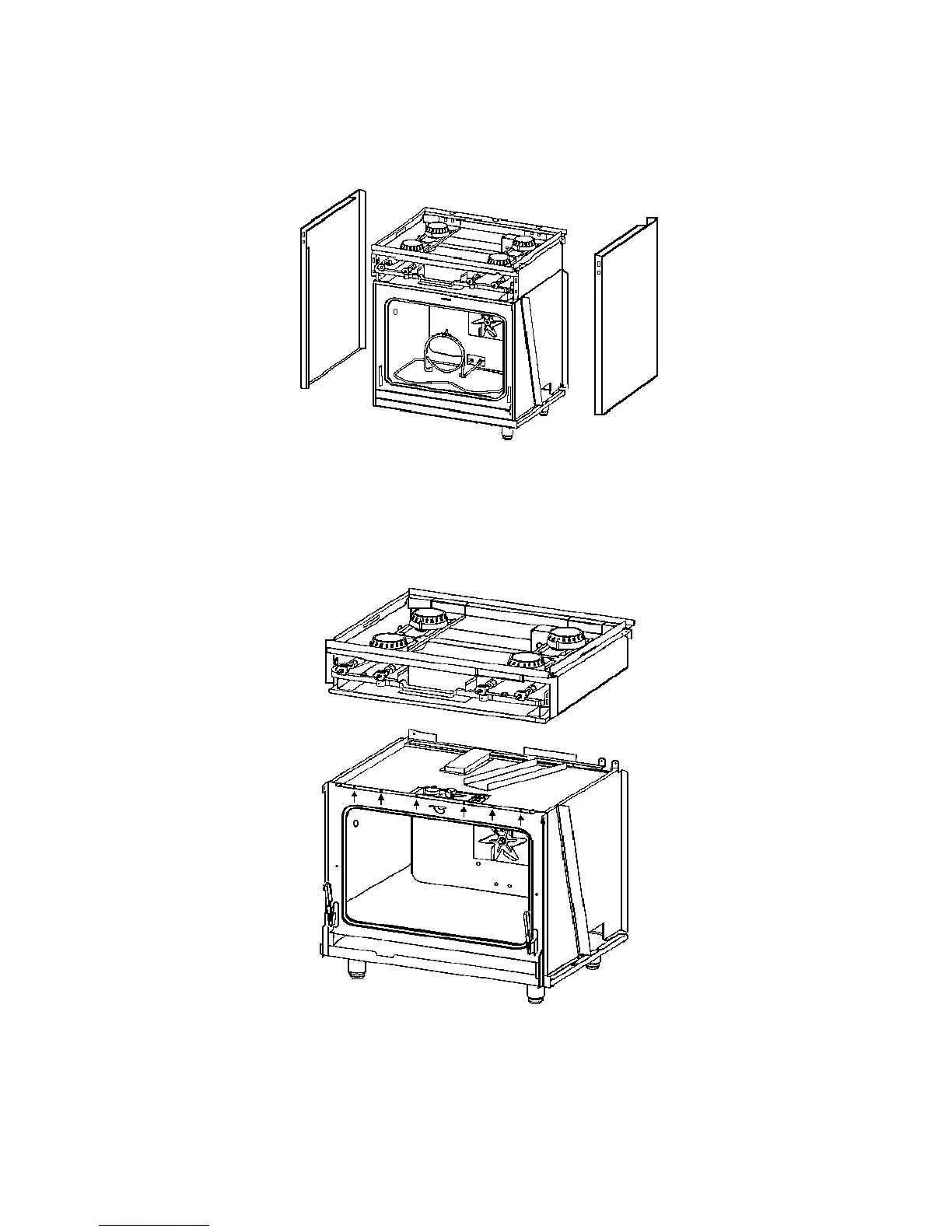

Remove both side panels and insulation.
Remove the 6 screws along the upper frame above the door that hold the burner box assembly to the oven body. Lift the
front of the burner box high enough to gain access to the self clean lock and associated components ( High Limit Switch
and Cooling Fan Switch ). Use a block, approximately 6" high, to hold the burner box in place while working on the
lock.
26
