VDSC305 SELF CLEAN LOCK

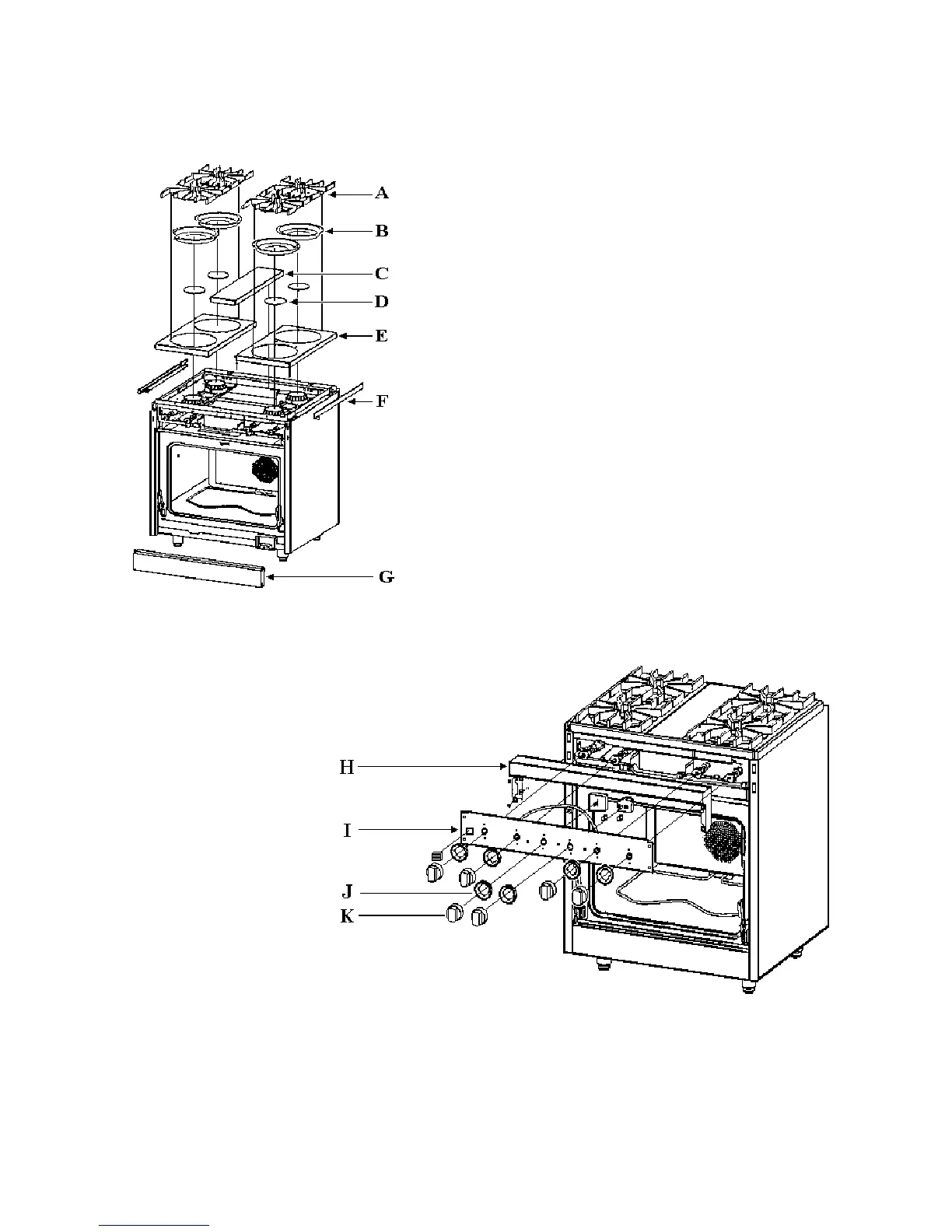

To replace the self clean lock mechanism you will need
to remove:
A. Burner Grates
B. Burner bowls
C. Center Work Space
D. Burner Caps
E. Grate Supports
F. Grate Support Trims
G. Access Panel
H. Landing Ledge
I. Control Panel
J. Knob Bezels
K. Knobs
( Continued on next page )
