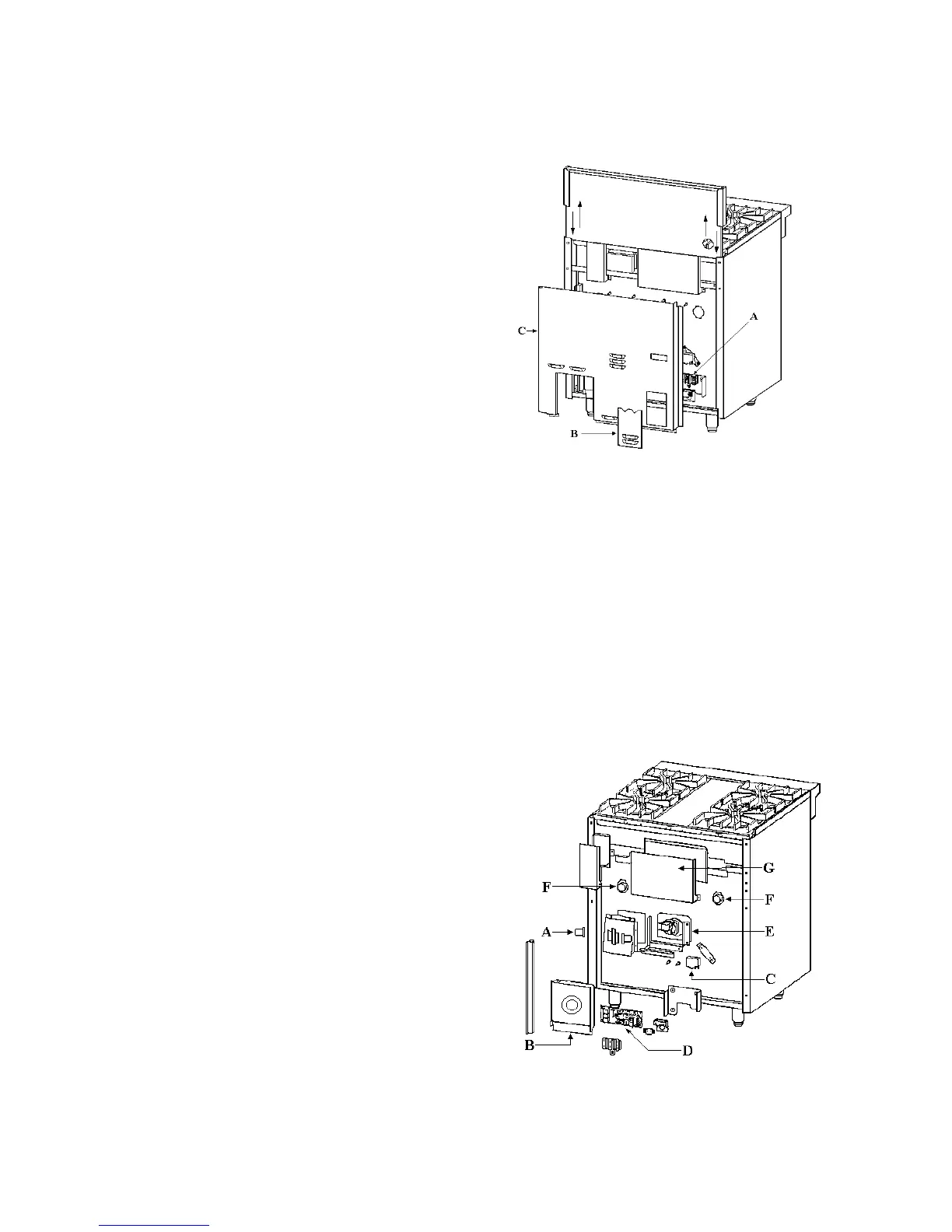

VDSC 305 BACK COVER ASSEMBLY
Remove the range from the cabinet and
remove the back cover to service the
electronic components for self clean.
A. DISCONNECT THE VOLTAGE
BEFORE REMOVING BACK
COVER. (CAUTION 240 AC).
B. A.C. Disconnect Cover.
C. Back Cover
VDSC 305 REAR PANEL ASSEMBLY
A. Relay ( 2 )
B. Cooling Fan
C. Auto Reset
D. Self Clean / Timer
E. Convection Motor ( serviced from
inside the oven cavity ).
F. Oven Lights
G. Oven Flue
