VDSC “ LOCKED “ DOOR
In the unlikely event the door lock motor
should fail in the “ Locked “ position you will
need:
1. To fashion a hook on the end of a 12"
long stiff wire.

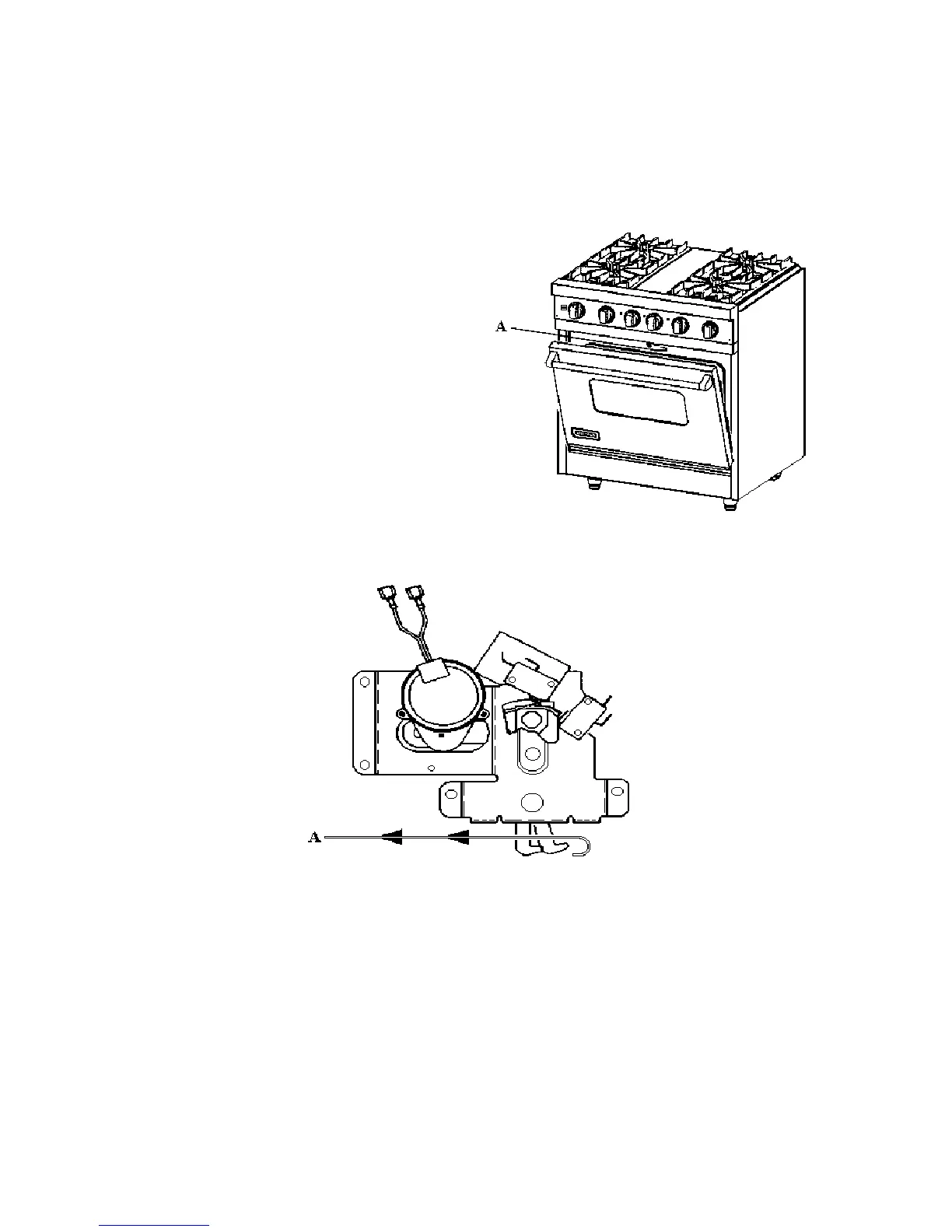

2. Insert the hook between the door and
the front frame assembly at the top, see
“A” illustrated at right. The hook on
the wire should be to the right of the
latch hook.
3. Engage the door latch hook with the
wire hook and pull the latch hook to
the left until the door is released, see
illustration below.
27
