Chapter 7 Deployment Profibus communication Manual VIPA System 300S SPEED7
7-4 HB140E - CPU SC - RE_313-6CF03 - Rev. 07/45
Now the project engineering of your Profibus DP master is finished. Please
link up now your DP slaves with periphery to your DP master.

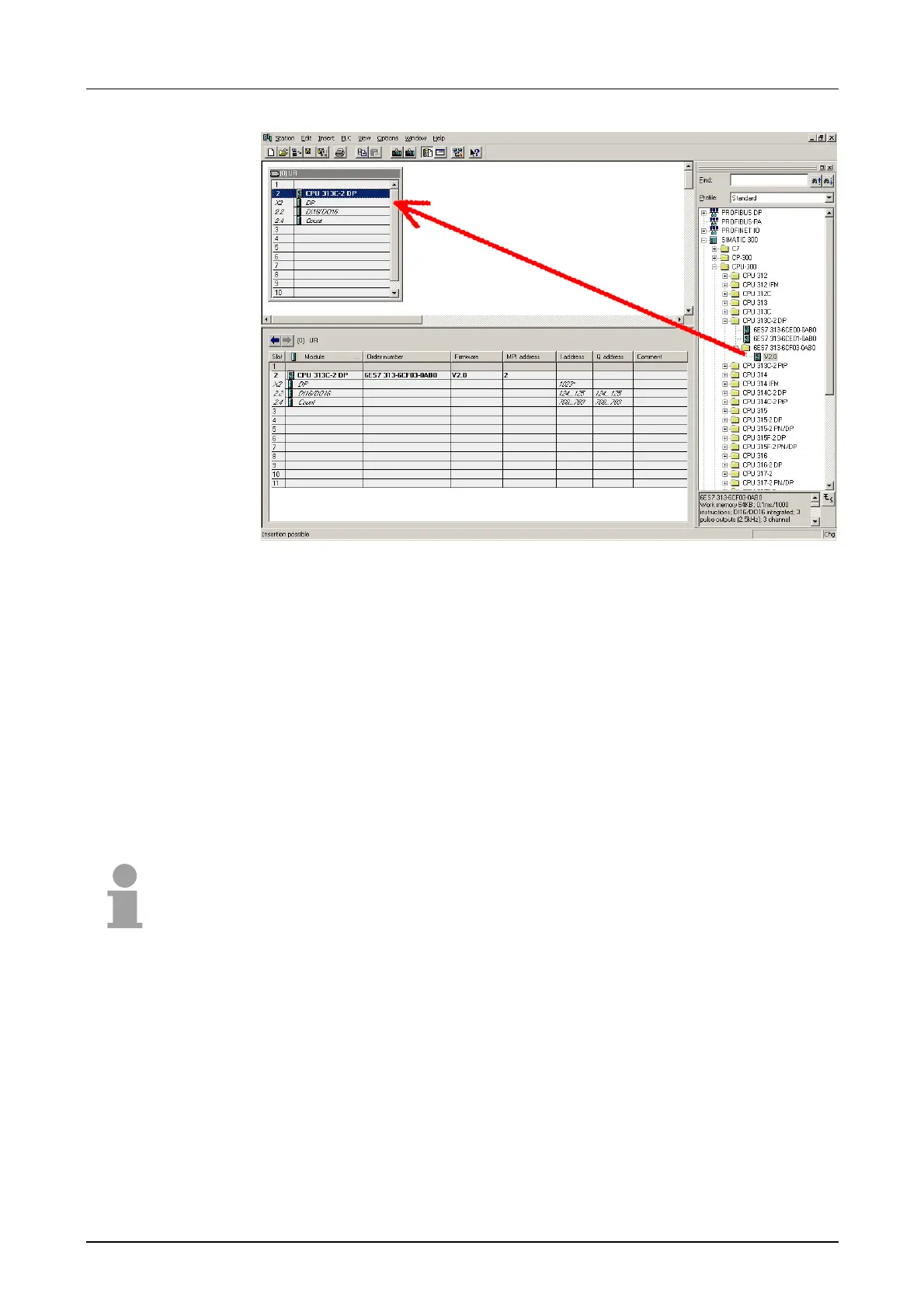

• For the project engineering of Profibus DP slaves you search the
concerning Profibus-DP slave in the hardware catalog and drag&drop it
in the subnet of your master.
• Assign a valid Profibus address to the DP slave.
• Link up the modules of your DP slave system in the plugged sequence
and add the addresses that should be used by the modules.
• If needed, parameterize the modules.
• Save, compile and transfer your project. More detailed information about
project engineering and project transfer may be found at chapter
"Deployment CPU 313SC/DPM".
Note!
If you deploy an IM153 from Siemens under a VIPA CPU 313SC/DPM,
please use the "compatible" DP slave modules.
These are listed in the hardware catalog under
PROFIBUS-DP/Additional Field Devices/
Compatible Profibus-DP-Slaves.
You may deploy your Profibus part from your CPU 313SC/DPM as DP
slave. The approach is described on the following page.
Slave operation
possible
