Cabling
The CPUs are exclusively delivered with CageClamp contacts. The
connection of the I/O periphery happens by 40pole front screw connection.
Danger!
• The power supplies must be released before installation and repair
tasks, i.e. before handling with the power supply or with the cabling you
must disconnect current/voltage (pull plug, at fixed connection switch off
the concerning fuse)!
• Installation and modifications only by properly trained personnel!
For the cabling of power supply of a CPU, a green plug with CageClamp
technology is deployed.
The connection clamp is realized as plug that may be clipped off carefully if
it is still cabled.
Here wires with a cross-section of 0.08mm
2
to 2.5mm
2
may be connected.
You can use flexible wires without end case as well as stiff wires.
1
2
3
[1] Test point for 2mm test tip
[2] Locking (orange) for screwdriver
[3] Round opening for wires
1
2
3

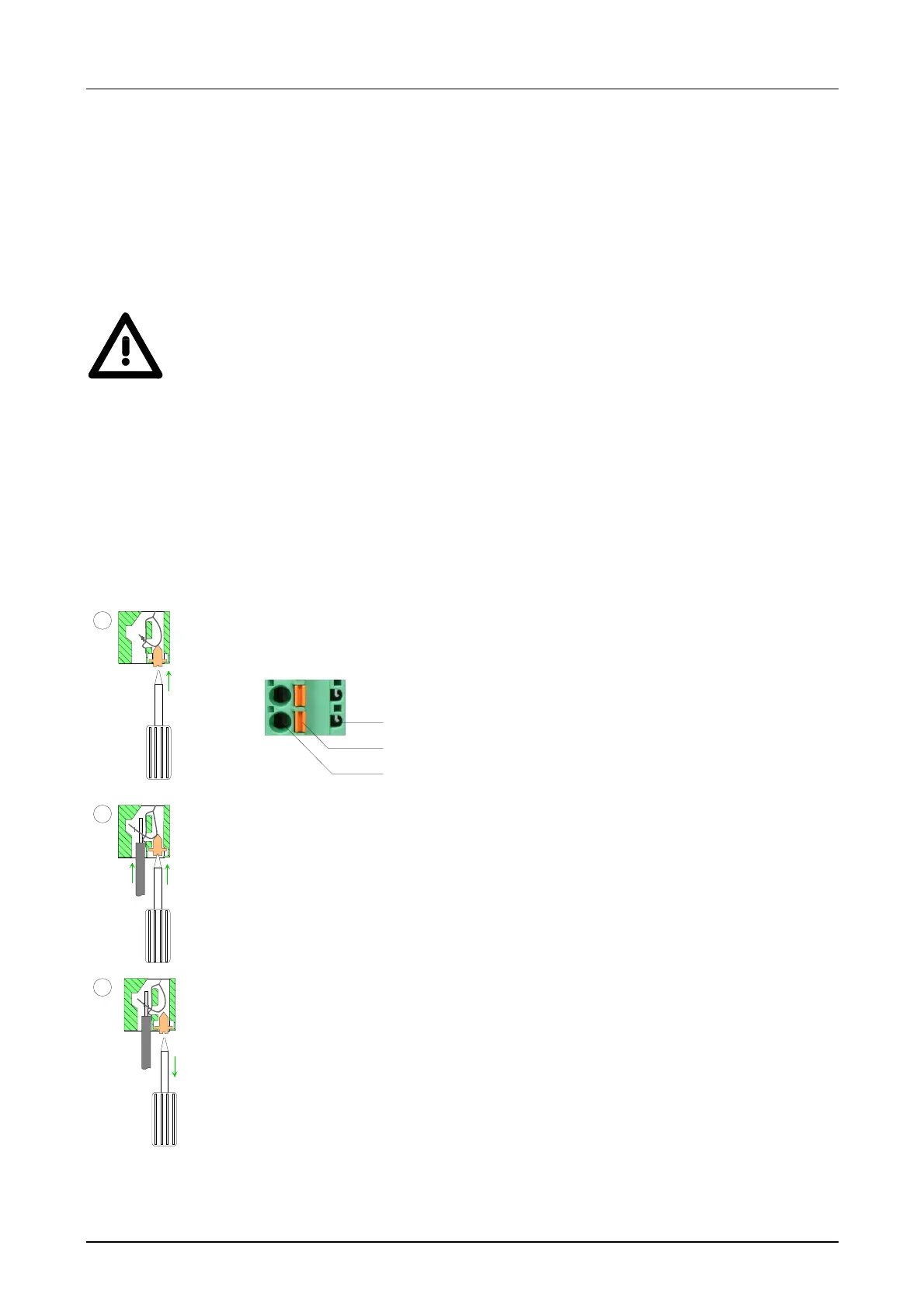

The picture on the left side shows the cabling step by step from top view.
• For cabling you push the locking vertical to the inside with a suiting
screwdriver and hold the screwdriver in this position.
• Insert the de-isolated wire into the round opening. You may use wires
with a cross-section from 0.08mm
2
to 2.5mm
2
.
• By removing the screwdriver the wire is connected safely with the plug
connector via a spring.
