Chapter 4 Deployment CPU 313SC/DPM Manual VIPA System 300S SPEED7
4-10 HB140E - CPU SC - RE_313-6CF03 - Rev. 07/45
Access to the internal web page
The Ethernet PG/OP channel provides a web page that you may access
via an Internet browser by its IP address. The web page contains
information about firmware versions, current cycle times etc. The current
content of the web page is stored on MMC by means of the MMC-Cmd
WEBPAGE. More information may be found at "MMC-Cmd - Auto
commands".
A PG/OP channel connection should be established between PC with
Internet browser and CPU 313SC/DPM. This may be tested by Ping to the
IP address of the Ethernet PG/OP channel.
Web page

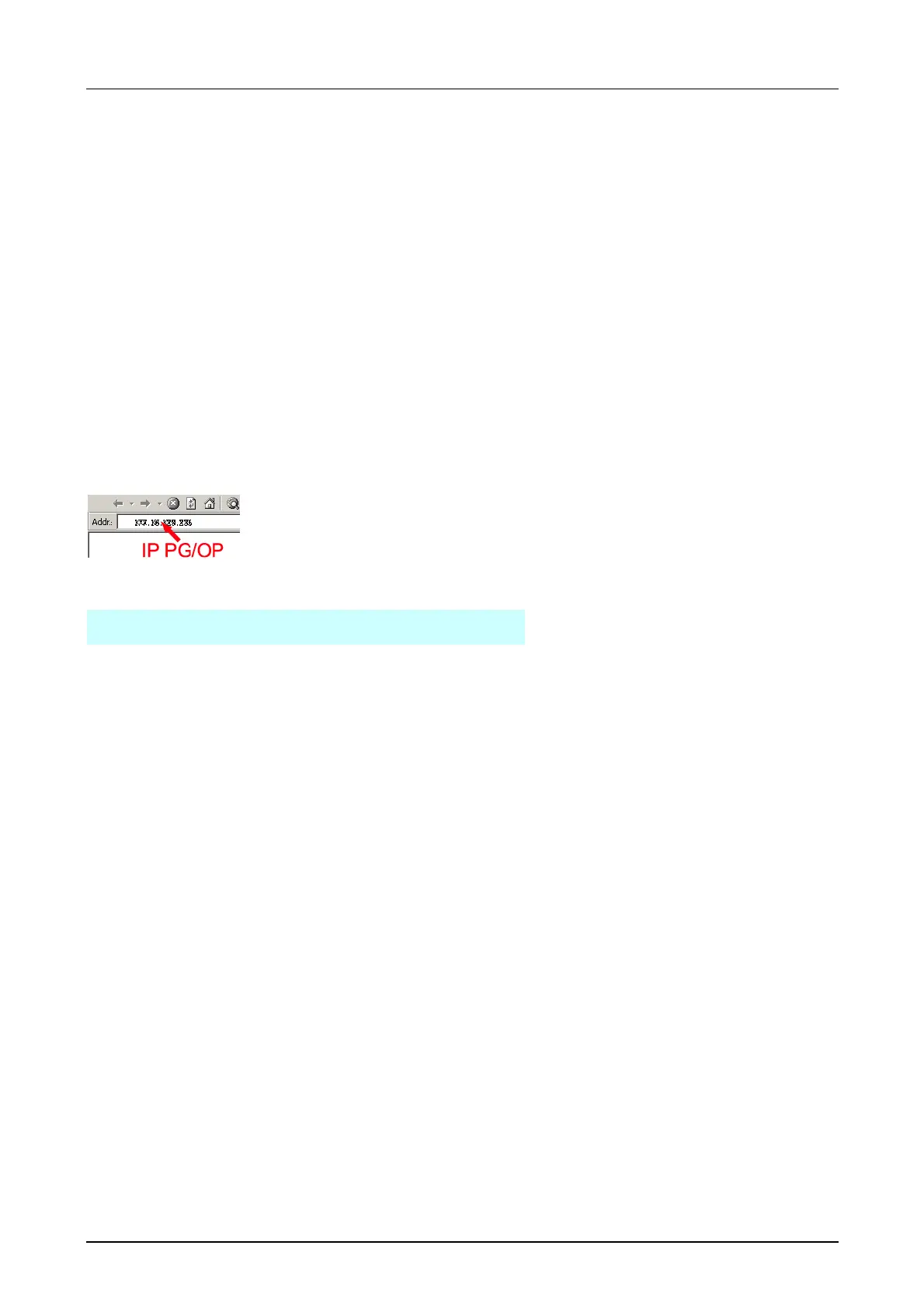

The access takes place via the IP address of the Ethernet PG/OP channel.
The web page only serves for information output. The monitored values are
not alterable.
CPU WITH ETHERNET PG/OP
Slot 100
VIPA 313-6CF03 V3.2.9 Px000075.pkg,
SERIALNUMBER 02119
Order no., firmware vers., package,
serial no.
SUPPORTDATA: PRODUCT V3118, HARDWARE ...
Information for support
OnBoardEthernet : MacAddress : 0020d5771524,
IP-Address : , SubnetMask : , Gateway :
Ethernet PG/OP: Addresses
Cpu state : RUN
CPU state
FunctionRS485 X2: MPI
RS485 function of X2
FunctionRS485 X3: DPM-async
RS485 function of X3
Cycletime [microseconds] : min=17000
cur=17000 ave=17000 max=17000
CPU cycle time:
min= minimal, cur= current
ave= average, max= maximal
MCC-Trial-Time: 70:23
Remaining time for deactivation of the
expansion memory if MCC is removed.
Additional CPU components:
Slot 201
Slot 201 (Profibus DP master):
KOMPAKT-1DP00 V3.1.2 Px000064.pkg,
Name, firmware version, package
SUPPORTDATA: PRODUCT V3120, Module Type ...
Information for support
Cycletime [microseconds] : min=65535000
cur=0 ave=0 max=0 cnt=0
Profibus cycle time:
min= minimal, cur= current
ave= average, max= maximal
Slot 202
Slot 202 (Digital I/Os):
VIPA DI16/DO16 V3.2.9,SUPPORTDATA:PRODUCT...
Name, firmware version, module type
SUPPORTDATA: PRODUCT V3290, Module Type ...
Information for support
Address Input 124...125
Configured input base addresses
Address Output 124...125
Configured output base addresses
Slot 204
Slot 204 (Counter)
VIPA 3 COUNTERS V3.2.9,
Name, firmware version, module type
SUPPORTDATA: PRODUCT V3290, Module Type ...
Information for support
Address Input 768...783
Configured input base addresses
Address Output 768...783
Configured output base addresses
Standard Bus 8 Bit Mode
Modules at standard bus
Access to the
web page
Requirements
