Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 313SC/DPM
HB140E - CPU SC - RE_313-6CF03 - Rev. 07/45 4-9
• Establish a network connection between Ethernet PG/OP channel of the
CPU and PC.
• Start the SIMATIC Manager from Siemens and create a new project.
• Add a new System 300 station via Insert > Station > SIMATIC 300-
Station.
• Activate the station "SIMATIC 300" and open the hardware configurator
by clicking on "Hardware".
• Engineer a rack (SIMATIC 300 \ Rack-300 \ Profile rail)

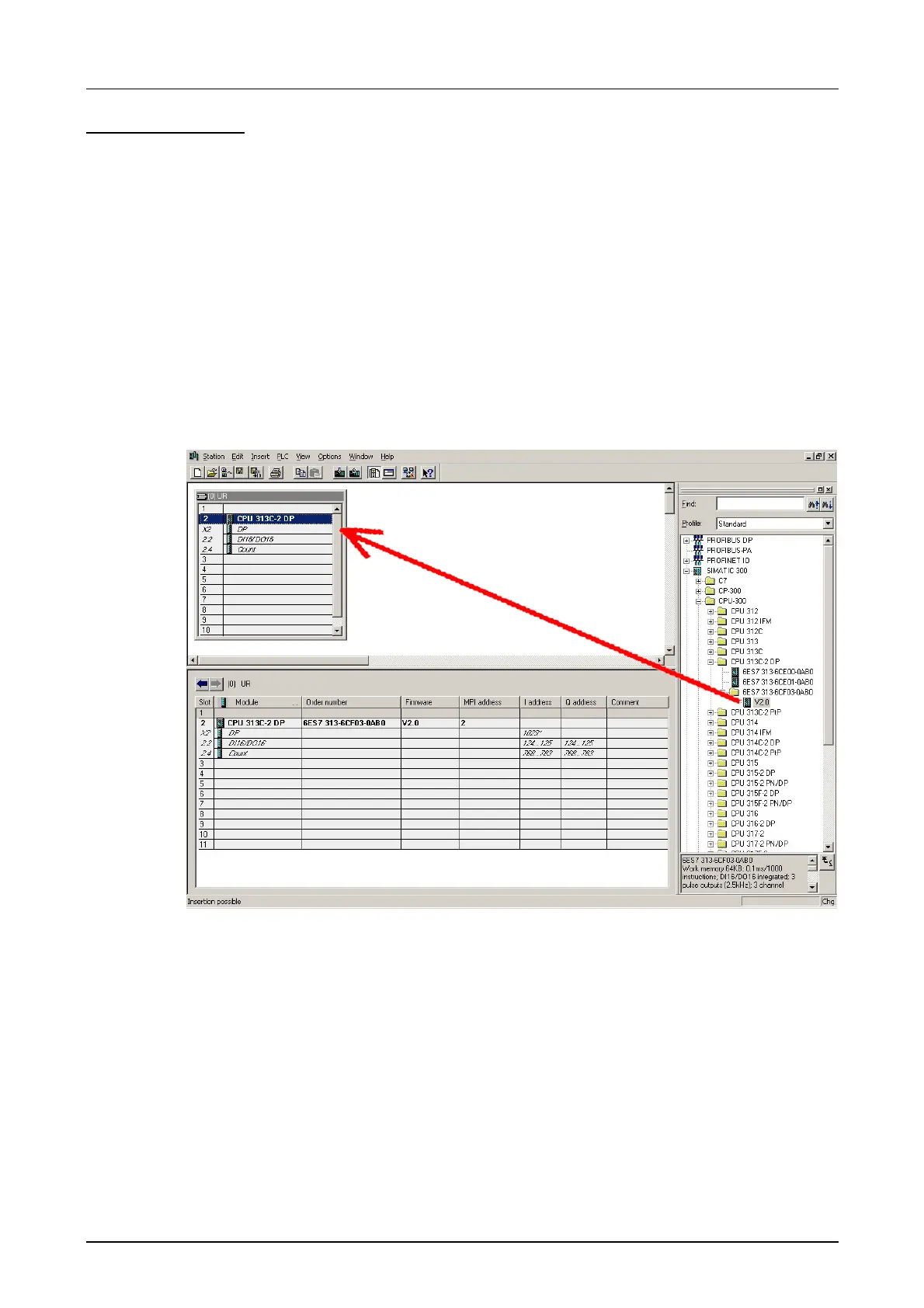

• Place the Siemens CPU 313C-2DP with the order no. 6ES7 313-6CF03-
0AB0 V2.0 from the hardware catalog. This may be found at SIMATIC
300 \ CPU 300 \ CPU 313C-2DP.
• Include the CP 343-1EX11 at slot 4 (SIMATIC 300 \ CP 300 \ Industrial
Ethernet \ CP 343-1).
• Type the wanted IP address and subnet mask into the dialog window of
"Properties" of the CP 343-1 and connect the CP with "Ethernet".
• Save and compile your project.
• Transfer your project via MPI or MMC into your CPU. More information
about transfer methods may be found in the chapter "Project transfer".
Direct after the assignment the Ethernet PG/OP channel may be reached
by the Siemens SIMATIC manager by means of these IP address
parameters and the Access Path "TCP/IP -> Network card .... Protocol
RFC 1006".
Initialization via
minimal project
