VIPA System 300S SPEED7 CPU 313SC/DPM User Manual

Manual VIPA System 300S SPEED7 Chapter 5 Deployment I/O periphery
HB140E - CPU SC - RE_313-6CF03 - Rev. 07/45 5-3

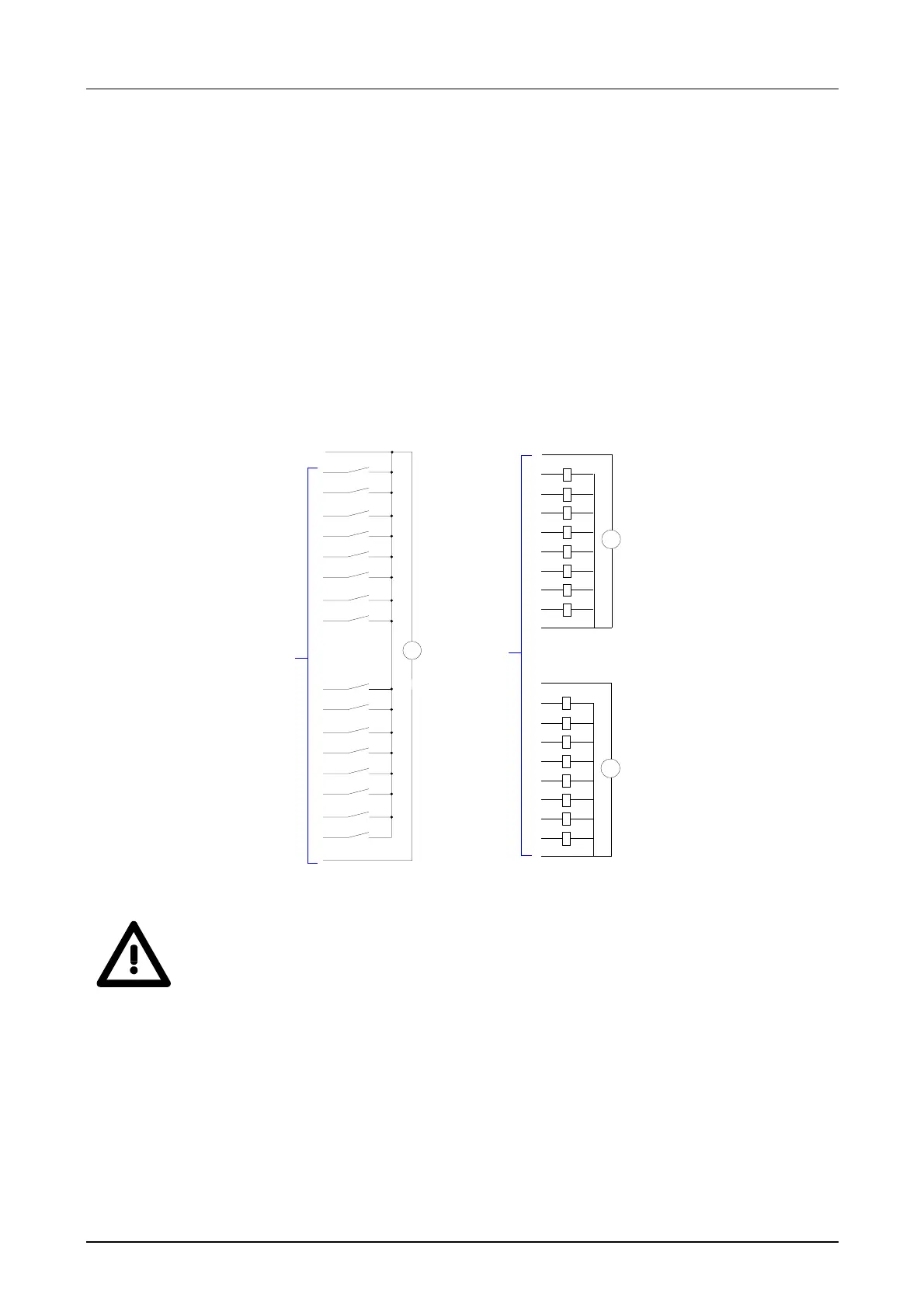

In-/Output range CPU 313SC/DPM
The CPU 313SC/DPM has the following digital in- and output ranges
integrated in one casing:
• Digital Input: 16xDC 24V
• Digital Output: 16xDC 24V, 0.5A
• Technological functions: 3 Channels
Each of the digital in-/ outputs monitors its state via a LED. Via the
parameterization you may assign alarm properties to every digital input.
Additionally the digital inputs are parameterizable as counter.
1
2
3
4
5
6
7
8
9
DI
1L+
12
13
14
15
16
17
18
19
20
1M
=
=
2L+
2M
31
32
33
34
35
36
37
38
39
40
=
3L+
3M
22
21
23
24
25
26
27
28
29
30
DO
Attention!
Please take care that the voltage at an output channel always is ≤ the
supply voltage via L+.
Overview
CPU 313SC/DPM
