• Insert another SIMATIC 300 station and name it as "...DP master".
• Open the hardware configurator and insert a profile rail from the
hardware catalog.
• Place the following Siemens CPU at slot 2:
CPU 313C-2DP (6ES7 313-6CF03-0AB0 V2.0)
• Add your modules according to the real hardware assembly.
• Connect the CPU to Profibus, set a Profibus address >1 (preferably 2)
and switch the Profibus section via operating mode to "master
operation"..
• Connect your slave system to the master system by dragging the
"CPU 31x" from the hardware catalog at configured stations onto the
master system and select your slave system.
• Open the Configuration at Object properties of your slave system.
• Via double click to the according configuration line you assign the
according input address area on the master CPU to the slave output
data and the output address area to the slave input data.
• Save, compile and transfer your project. More detailed information about
project engineering and project transfer may be found at chapter
"Deployment CPU 313SC/DPM".

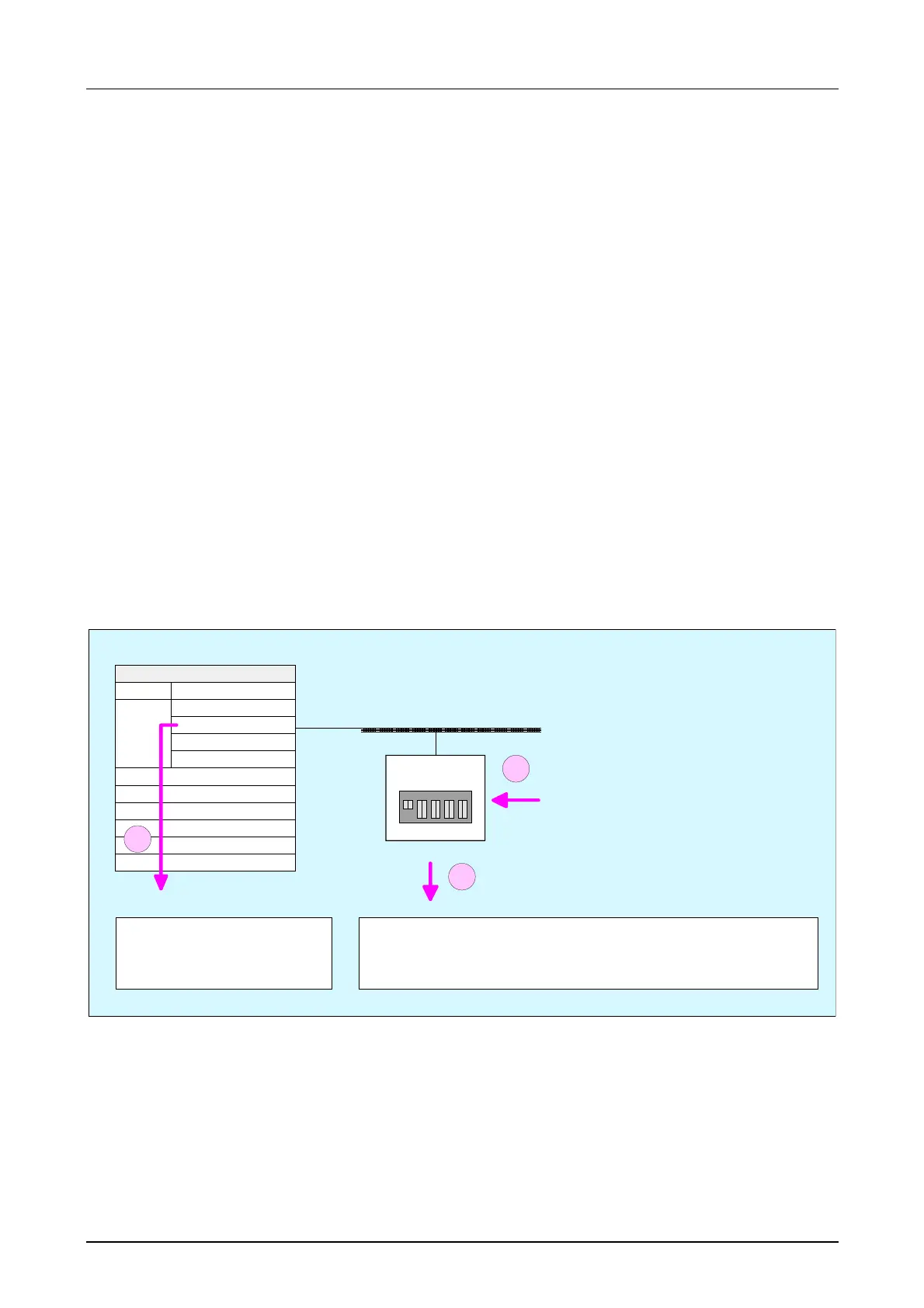

Object properties
Operating mode: DP master
Connect: Profibus
Profibus address: > 1
Master section
DP master system
S7-300
Hardware catalog: CPU 31x from
configured stations
Object properties
Configuration:
Input area slave CPU = Output area master-CPU
Output area slave CPU = Input area Master-CPU
2
3
Standard bus
Module
CPU 313C-2DP
DP
DI16/DO16
Count
...
I/O devices
Slot
1
2
X2
2.2
2.4
3
1
Project
engineering of the
master section
