VIPA System 300S SPEED7 CPU 313SC/DPM User Manual

Manual VIPA System 300S SPEED7 Chapter 7 Deployment Profibus communication
HB140E - CPU SC - RE_313-6CF03 - Rev. 07/45 7-9
Note!

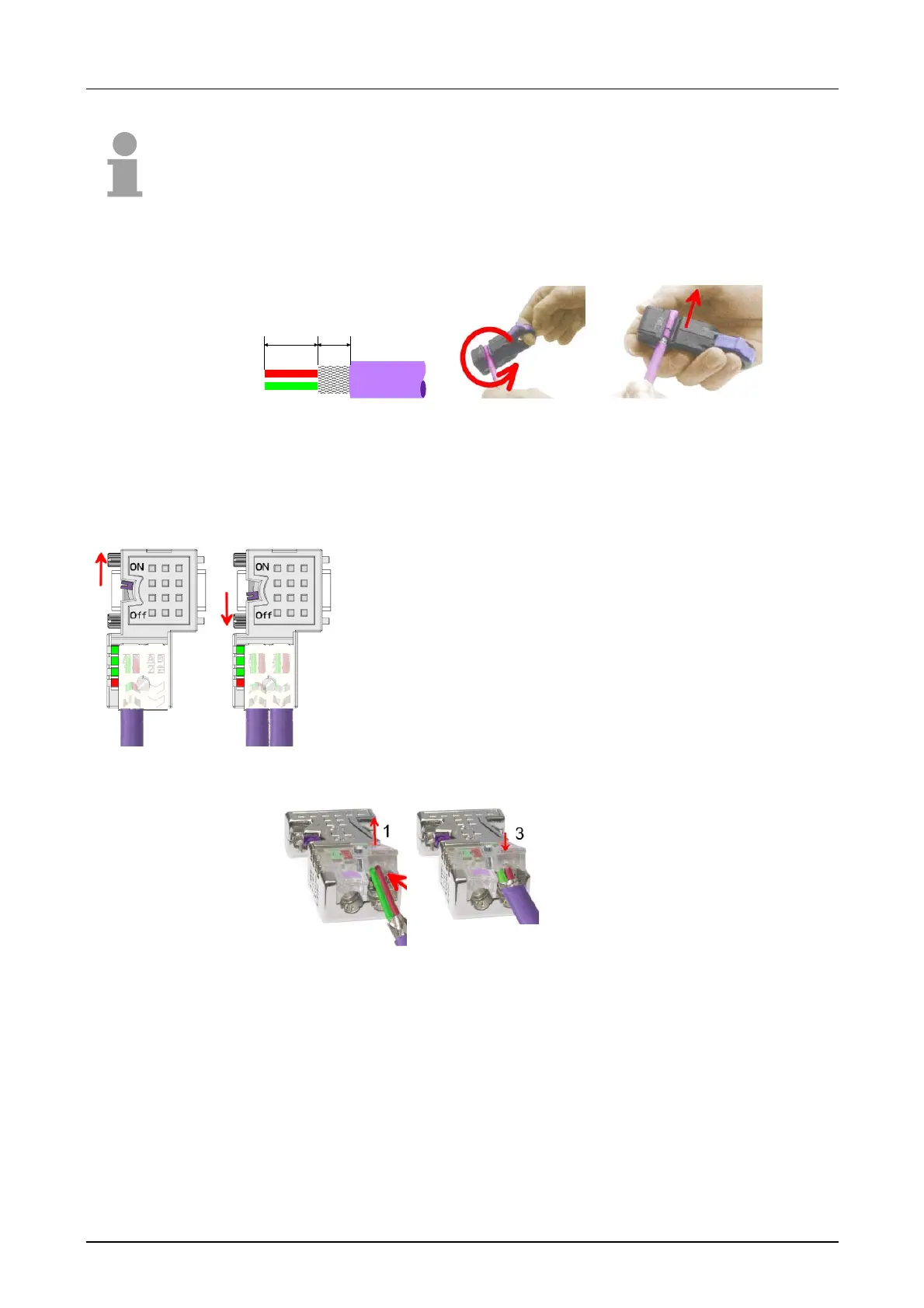

To connect this EasyConn plug, please use the standard Profibus cable
type A (EN50170). Starting with release 5 you also can use highly flexible
bus cable: Lapp Kabel order no.: 2170222, 2170822, 2170322.
Under the order no. 905-6AA00 VIPA offers the "EasyStrip" de-isolating
tool, that makes the connection of the EasyConn much easier.
11 6
Dimensions in mm
The "EasyConn" bus connector is provided with a switch that is used to
activate a terminating resistor.
Attention!
The terminating resistor is only effective, if the connector is
installed at a slave and the slave is connected to a power
supply.
Note!
A complete description of installation and deployment of the
terminating resistors is delivered with the connector.
• Loosen the screw.
• Lift contact-cover.
• Insert both wires into the ducts provided
(watch for the correct line color as below!)
• Please take care not to cause a short
circuit between screen and data lines!
• Close the contact cover.
• Tighten screw
(max. tightening torque 4Nm).
The green line must be connected to A, the red line to B!
Termination with
"EasyConn"
Assembly
Please note:

VIPA System 300S SPEED7 CPU 313SC/DPM Specifications

General

Type	CPU 313SC/DPM
Processor	SPEED7
Digital Outputs	16
Analog Outputs	2
Number of DP master interfaces	1
Number of PROFINET IO controller interfaces	0
Number of PROFINET IO device interfaces	0
Number of serial interfaces	0
Number of MPI interfaces	1
Power Supply	24 V DC
SIPLUS extreme	No
Work memory for program	96 kByte
Work memory for data	64 KB
Load memory, integrated	512 KB
Communication Ports	MPI, PROFIBUS
Operating Temperature	0 to 60°C
