Manual VIPA System 300S SPEED7 Chapter 2 Assembly and installation guidelines
HB140E - CPU SC - RE_313-6CF03 - Rev. 07/45 2-7
... continued

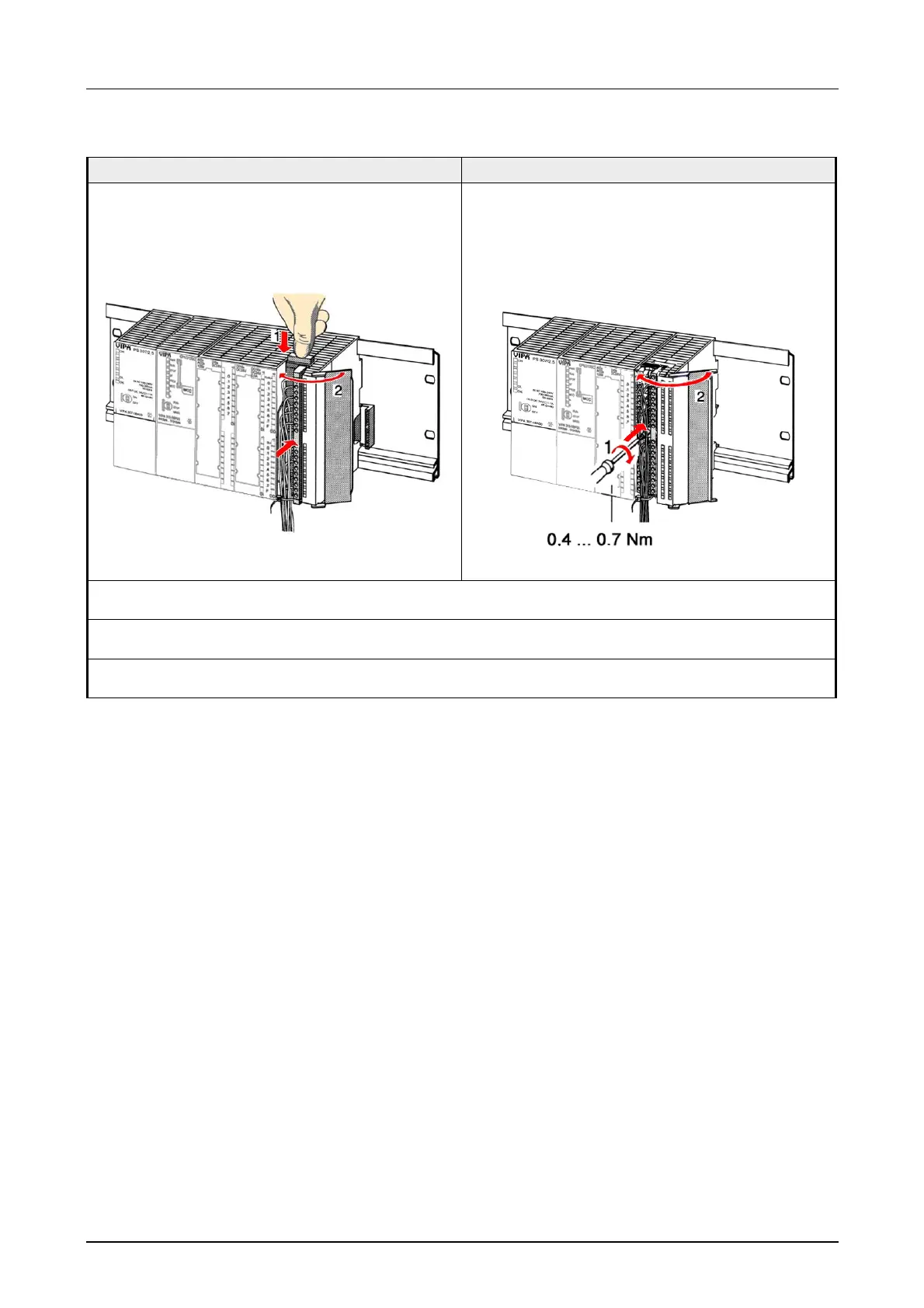

20pole screw connection 40pole screw connection
Push the release key at the front connector on
the upper side of the module and at the same
time push the front connector into the module
until it locks.
Bolt the fixing screw of the front connector.
Now the front connector is electrically connected with your module.
Close the front flap.
Fill out the labeling strip to mark the single channels and push the strip into the front flap.
