For the hardware configuration you use the hardware configurator from
Siemens. Among others, you assign the IP address of the CP and
configure the hardware components of your PLC.
Please regard that the following software packages have to be installed for
the hardware configuration:
- SIMATIC manager from Siemens V. 5.1 or V.5.2 with SP1
- SIMATIC NET
• Start the SIMATIC manager from Siemens and create a new project.
• Insert a new System 300 station via Insert > Station > SIMATIC 300
station.
• Activate the station "SIMATIC 300" and open the hardware configurator
by clicking on "Hardware".
• Configure a rack (Simatic300 > Rack-300 > Rail).
• For all CPUs 31x from VIPA are configured as CPU 315-2DP, you select
the CPU 315-2DP with the order no. 6ES7 315-2AF03-0AB0 V1.2 in the
hardware catalog.
This is to find under Simatic300 > CPU-300 > CPU 315-2 DP.
• Place your modules starting at plug-in location 4. After that place your
virtual CP343-1 TCP(Simatic300 > CP-300 > Industrial Ethernet > CP
343-1 TCP).
• If needed parameterize the CPU res. the modules. The parameter
window is opened at double click on the depending module.

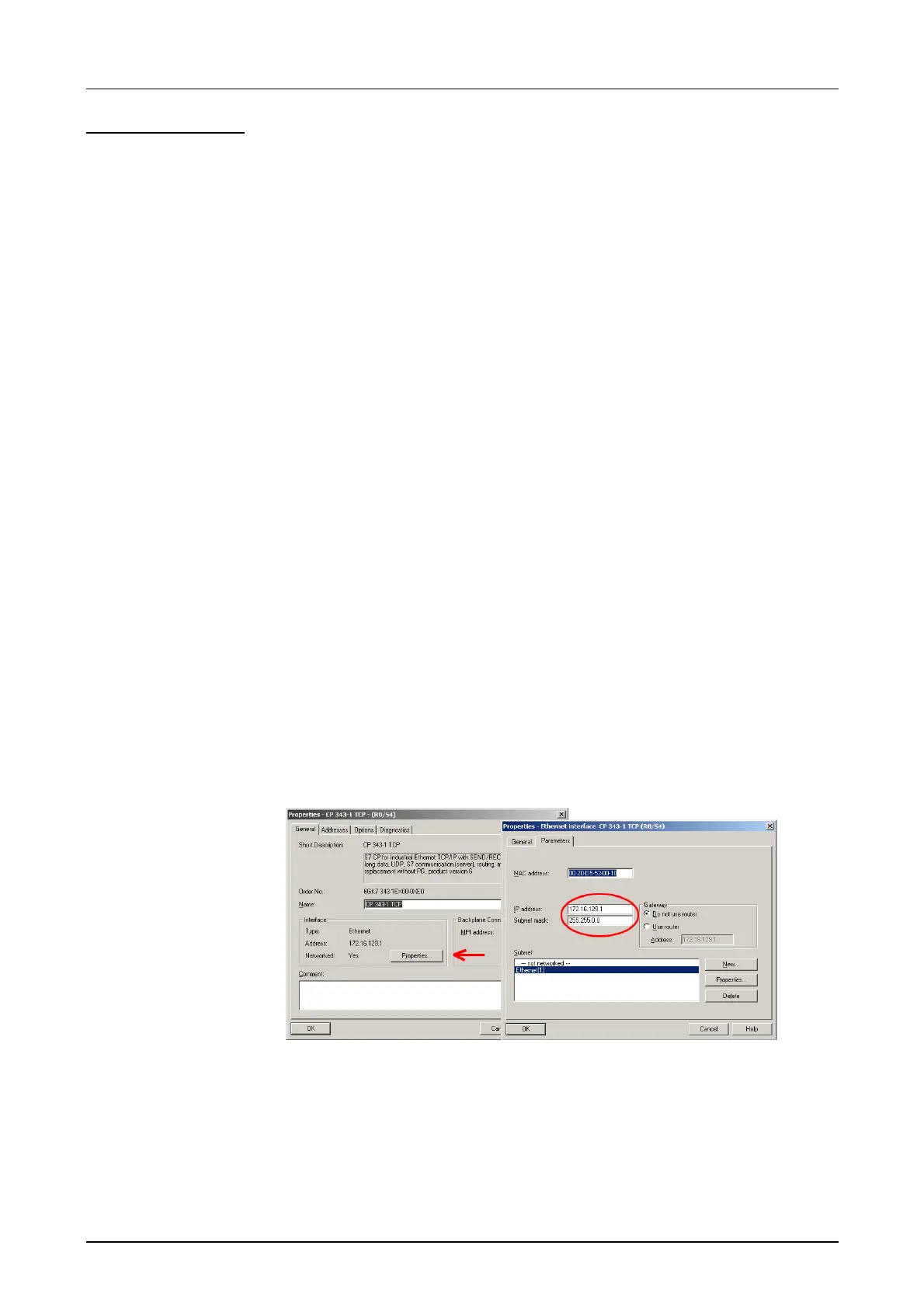

• Via a double click on the CP 343-1 TCP you open the properties window
and you type that IP address and that Subnet mask into properties that
you have defined in WinNCS.
• Save your project.
Now the hardware configuration is ready. The transfer of the hardware
configuration happens together with the PLC user application and is
described on the following pages under "Online-Transfer of program and
hardware configuration".
Hardware
configuration
Preconditions
Approach
