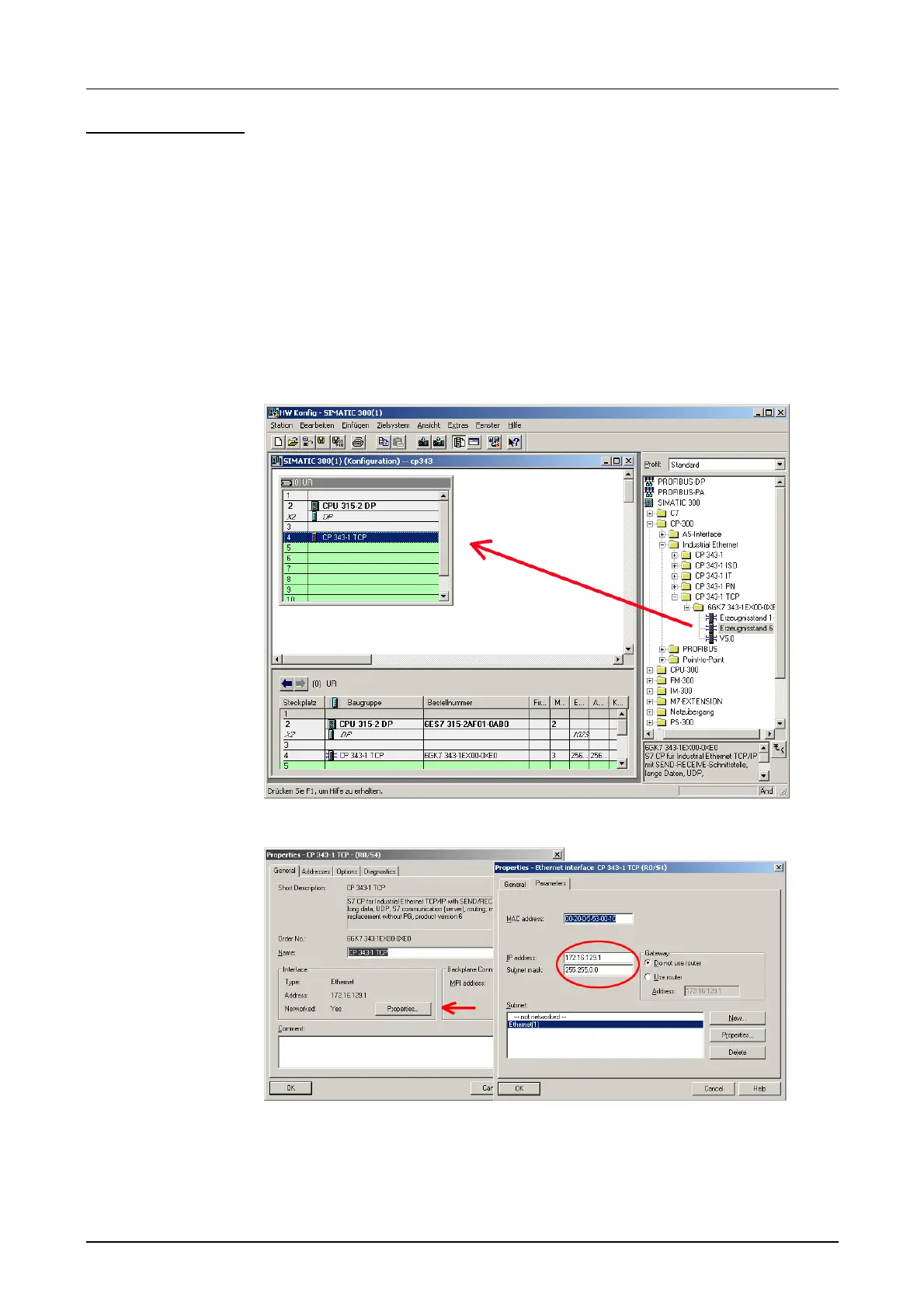

• Start the SIMATIC manager from Siemens and create a new project.
• Insert a new System 300 station via Insert > Station > SIMATIC 300
Station.
• Activate the "SIMATIC 300" station and open the hardware configurator
by clicking on "Hardware".
• Configure a rack (Simatic300 > Rack-300 > Rail).
• For all CPUs 31x from VIPA are configured as CPU 315-2DP, you select
the CPU 315-2DP with the order no. 6ES7 315-2AF03-0AB0 in the
hardware catalog.
This is to find under Simatic300 > CPU-300 > CPU 315-2 DP.
• Insert the CP343-1 TCP at the plug-in location 4 (Simatic300 > CP-300
> Industrial Ethernet > CP 343-1 TCP).
• Via a double click on the CP 343-1 TCP you open the properties window
and choose the valid IP address.
• If needed parameterize the CPU res. the modules. The parameter
window is opened at double click on the depending module.
• Save your project.
CPU and CP project
engineering in the
SIMATIC manager
from Siemens
