TCPTest.exe is to be found at the service area using the link
www.vipa.de/support/software. This test program that runs on all common
Windows operating systems allows you to establish and analyze simple
TCP/IP connections via Ethernet.
Here follows a short description of the deployment of this test program
together with the already configured CPU 31xNET.

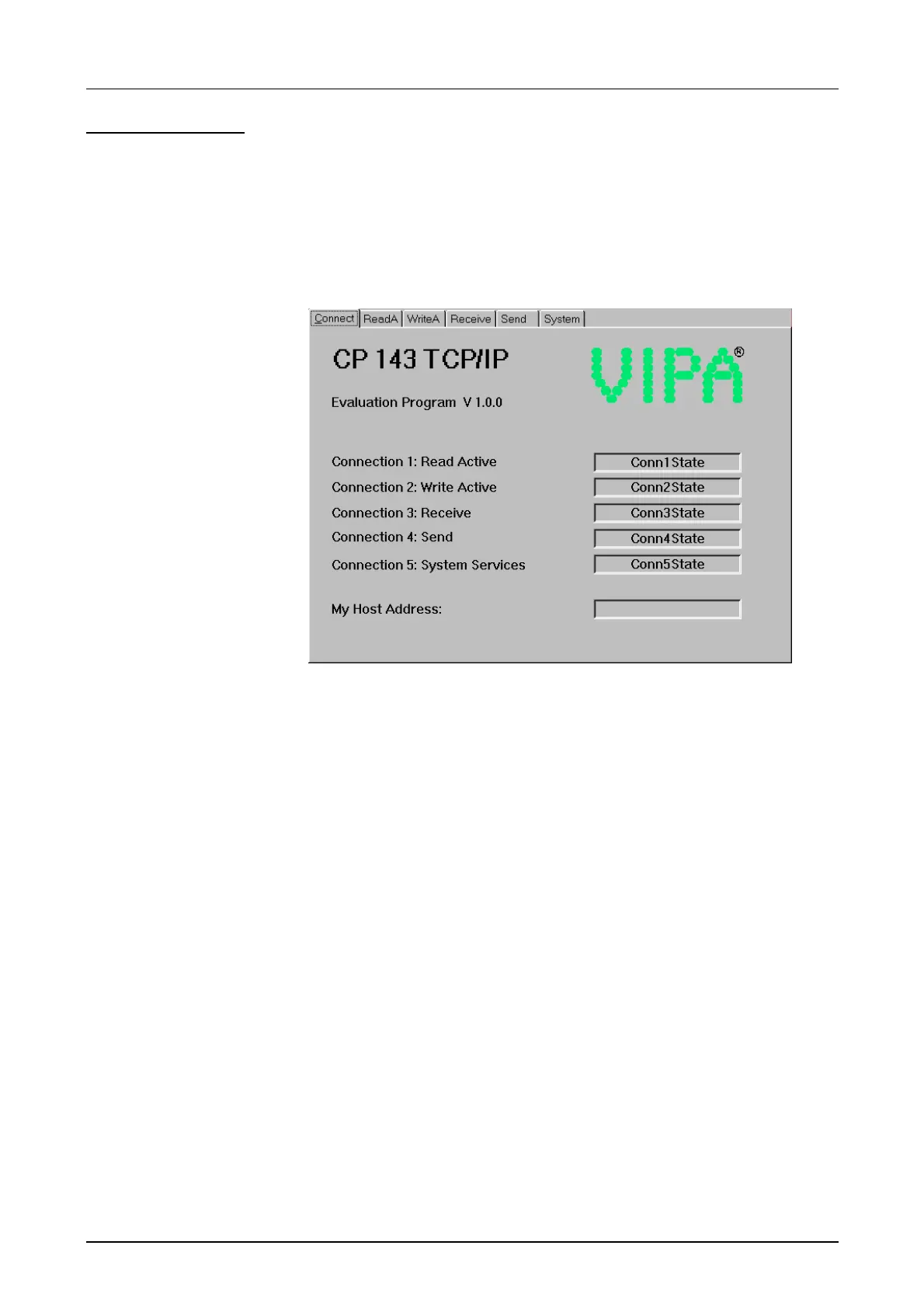

Start TCPTEST.EXE. The test program starts with the following window:
The menu has the form of register tabs. By clicking with the left mouse
button, the chosen dialog window comes into view.
The following preconditions have to be fulfilled:
• PC and CPU 31xNET are connected to Ethernet.
• PC and CPU 31xNET need to be inside the same IP address circle (see
note for „Transfer "WinNCS project").
• The PLC program and the CP project engineering are in the
CPU 31xNET.
• The CPU has been booted and is in RUN.
• The CP has been configured and is in RUN.
Deployment of
TCPTest
Preconditions
