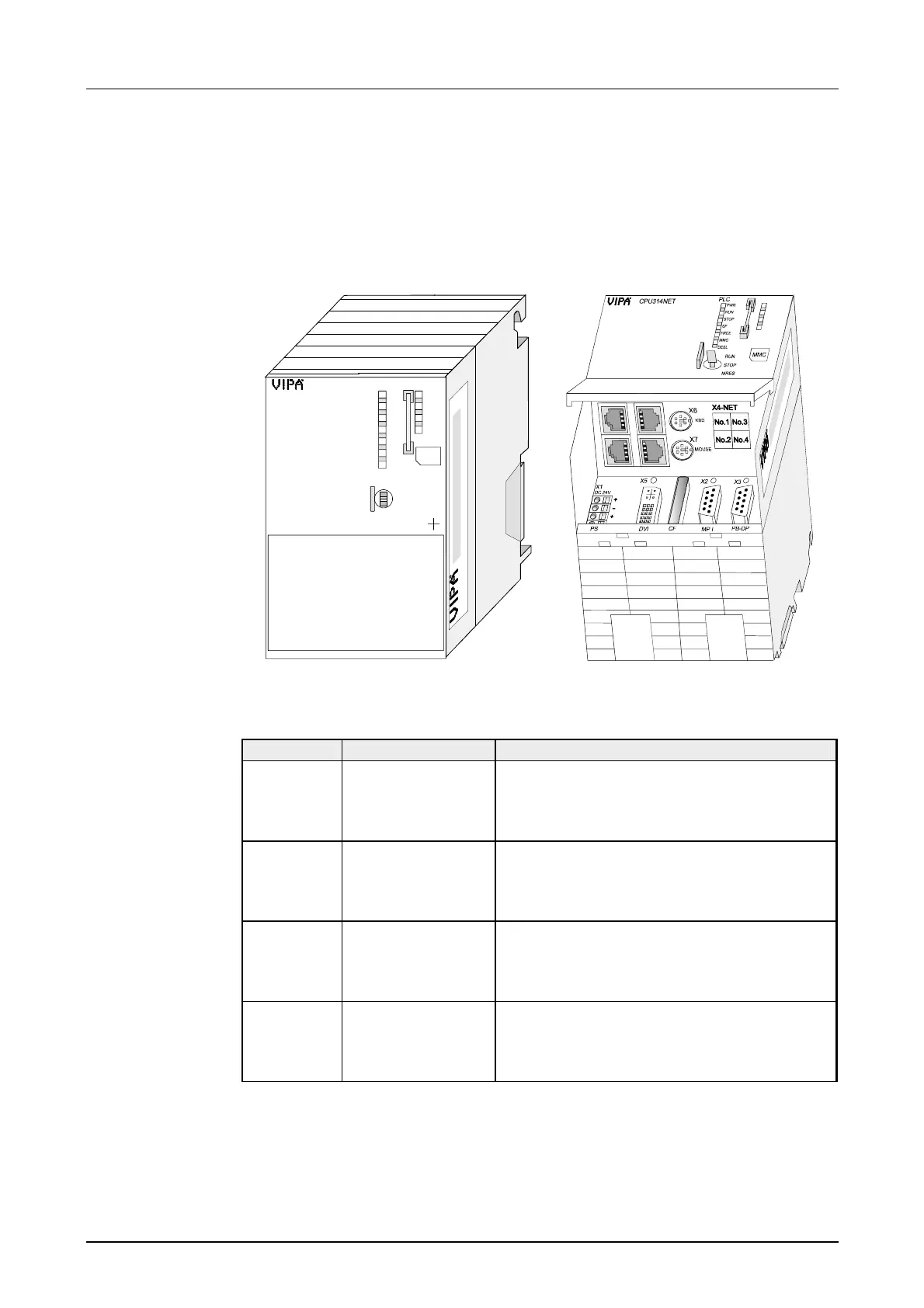

Like CPU 31x additionally with:
• integrated TCP/IP-CP with Auto RUN
• integrated 4port Switch
PWR
RUN
STOP
SF
FRCE
MMC
DESL
MMC
RUN
STOP
MRES
PLC
X1
VIPA 314-3SL01
X5
X2 X3
CPU314NET
X2
3
4
DC 24V
+
-
+
-
Type Order number Description
CPU 314 VIPA 314-3SL01 SPS CPU 314 with DP slave, Ethernet
TCP/IP-Interface, 4port Switch,
96kB Work / 144kB Load memory
CPU 315 VIPA 315-3SL01 SPS CPU 315 with DP slave, Ethernet
TCP/IP-Interface, 4port Switch,
192kB Work / 256kB Load memory
CPU 316 VIPA 316-3SL01 SPS CPU 316 with DP slave, Ethernet
TCP/IP-Interface, 4port Switch,
256kB Work / 512kB Load memory
CPU 317 VIPA 317-3SL01 SPS CPU 317 with DP slave, Ethernet
TCP/IP-Interface, 4port Switch,
512kB Work / 1MB Load memory
CPU 31xNET
Ordering data
CPU 31xNET
