Chapter 3 Hardware description Manual VIPA System 300V
3-12 HB130E - CPU - Rev. 11/50

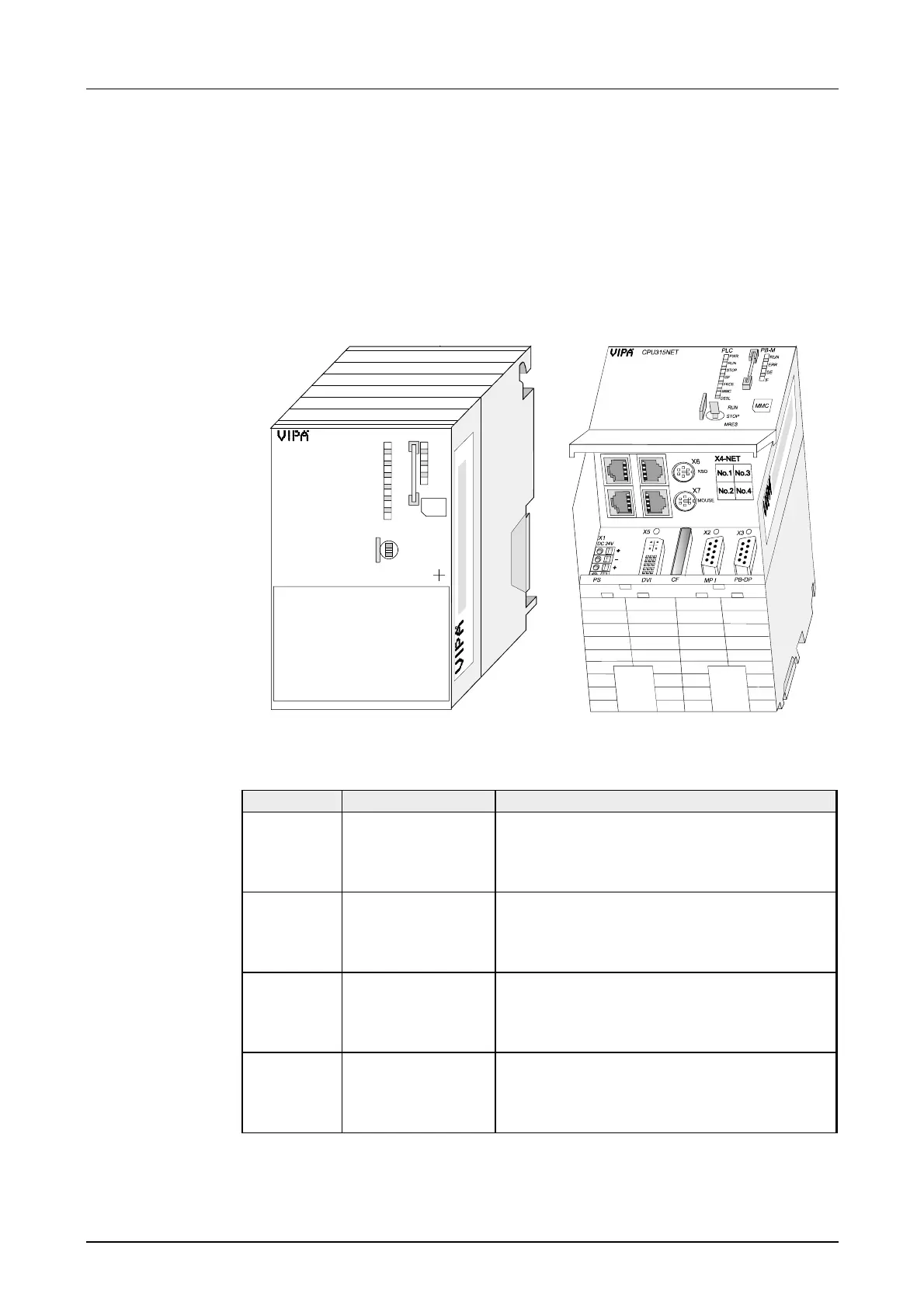

Like CPU 31x additionally with:
• integrated TCP/IP-CP with Auto RUN
• integrated 4port Switch
• integrated Profibus-DP master with Auto RUN instead of DP slave
• status display for Profibus-DP master
PWR
RUN
STOP
SF
FRCE
MMC
DESL
RUN
ERR
DE
IF
MMC
RUN
STOP
MRES
PLC
X1
VIPA 314-3DP01
PB-M
X5
X2 X3
CPU314NET
X2
3
4
DC 24V
+
-
+
-
Type Order number Description
CPU 314 VIPA 314-3DP01 SPS CPU 314 with DP master, Ethernet
TCP/IP-Interface, 4port Switch,
96kB Work / 144kB Load memory
CPU 315 VIPA 315-3DP01 SPS CPU 315 with DP master, Ethernet
TCP/IP-Interface, 4port Switch,
192kB Work / 256kB Load memory
CPU 316 VIPA 316-3DP01 SPS CPU 316 with DP master, Ethernet
TCP/IP-Interface, 4port Switch,
256kB Work / 512kB Load memory
CPU 317 VIPA 317-3DP01 SPS CPU 317 with DP master, Ethernet
TCP/IP-Interface, 4port Switch,
512kB Work / 1MB Load memory
CPU 31xNET with
DP master
Ordering data
CPU 31xNET
with DP master
