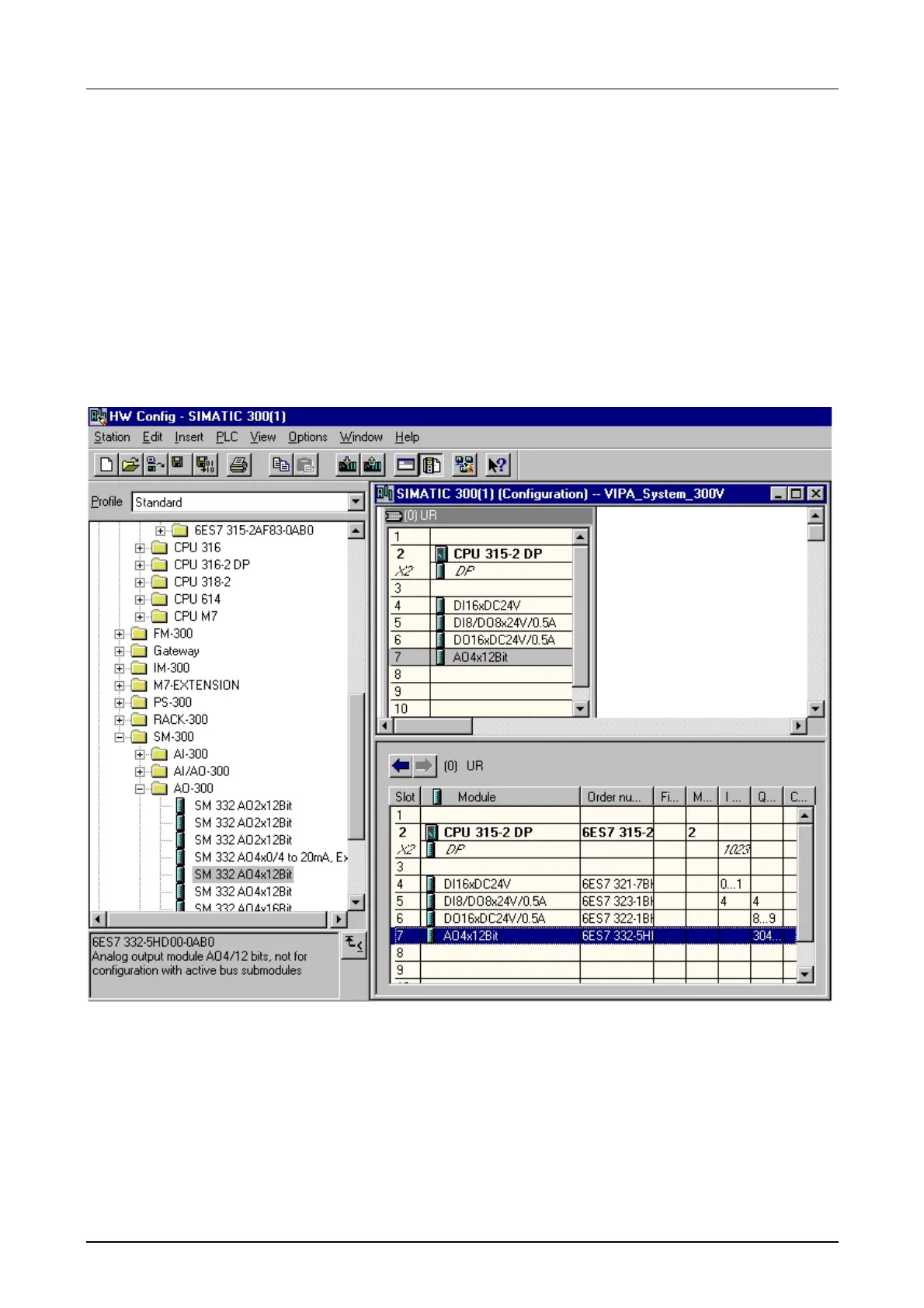

This is the approach to configure the modules that are on the bus beside
the CPU:
• Create a new project.
• Add the CPU 315-2DP (6ES7 315-2AF03-0AB0 V1.2) from the
hardware catalog.
You will find this at
Simatic 300 > CPU 300 > CPU 315-2 DP.
• Link-up your System 300V modules in the plugged-in sequence starting
with slot 4.
• If needed, parameterize the CPU res. the modules. The parameter
window appears as soon as you double click on the according module.
• Save your project.
Approach of the
project
engineering
