Viper AS430C User Manual

USER MANUAL
4
MACHINE DESCRIPTION

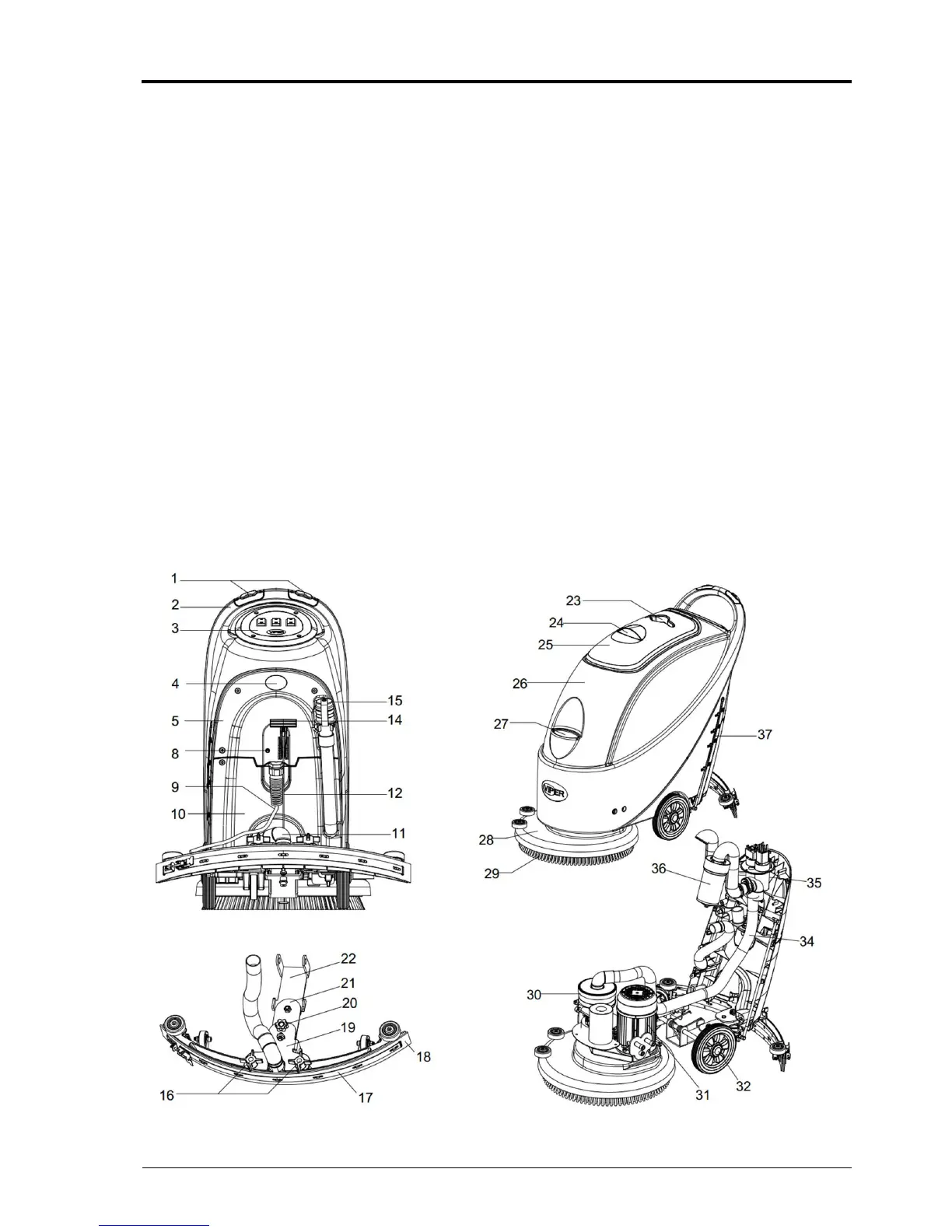

MACHINE EXPLODED VIEW
1. Safety switch button 20. Squeegee adjusting knob
2. Handle 21. Squeegee rear support frame
3. Control panel 22. Squeegee front support frame
4. Serial number plate/Technical data 23. Cup holder
5. Control cover 24. Recovery tank cover handle
6.
N/A 25. Recovery tank lid
7.
N/A 26. Recovery tank
8. Reset switch 27. Solution fill
9.
Power cable 28. Brush deck
10.
Battery cover 29. Brush / pad-holder
11.
Drain hose 30. Vacuum motor
12.
Squeegee lift cable 31. Brush motor
13.
N/A 32. 8” wheel
14.
Squeegee lift handle 33. N/A
15.
Drain cap 34. Vacuum tube
16.
Squeegee knob 35. Electric box
17.
Squeegee clip 36. Float filter
18.
Squeegee blade 37. Water level site tube
19.
Squeegee bracket
Figure 1

Viper AS430C Specifications

General

Brand	Viper
Model	AS430C
Category	Scrubber
Language	English
