USER MANUAL
5

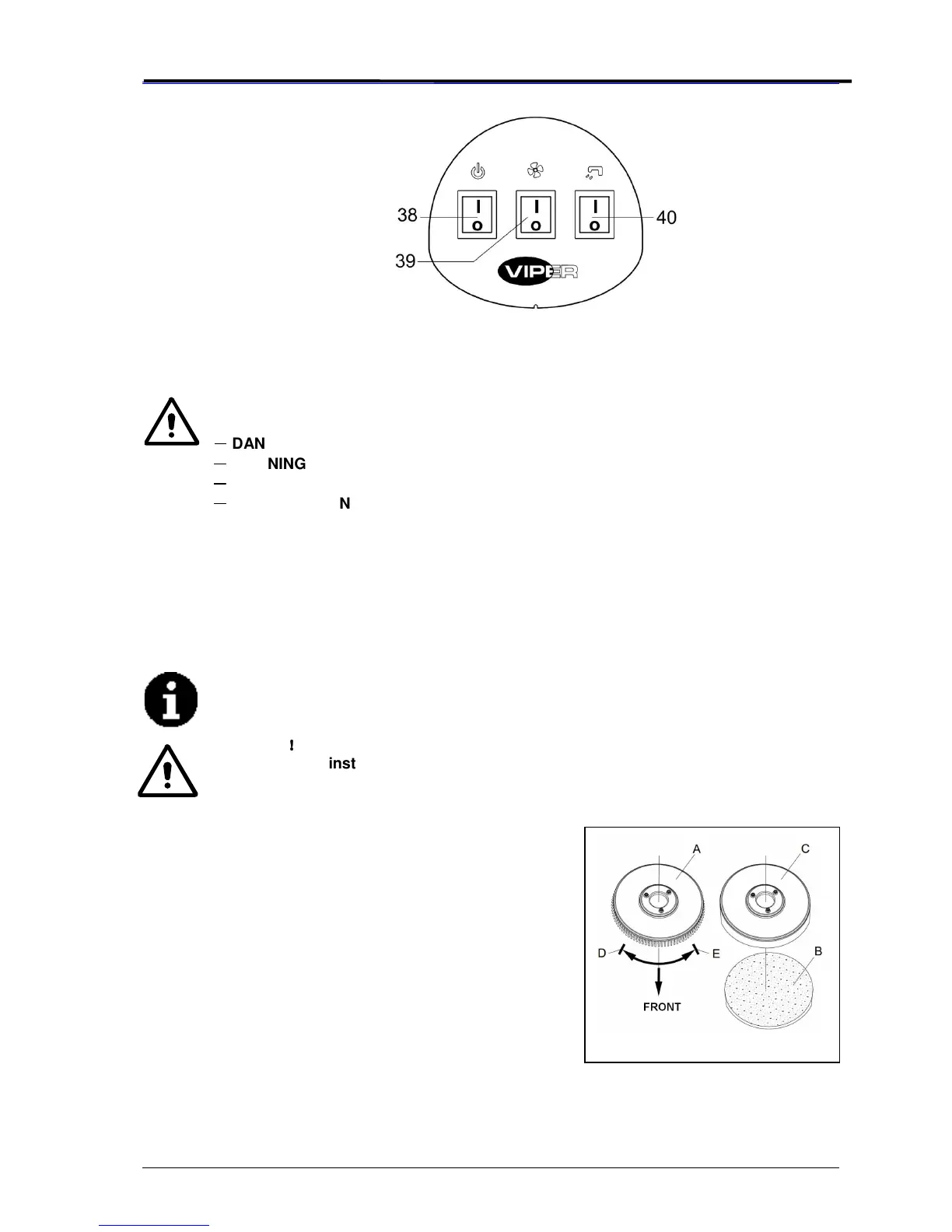

CONTROL PANEL (Figure2)
38. Power switch
39. Vacuum switch
40. Solution switch
Figure 2
GUIDE FOR USE
WARNING
On certain parts of the machine are pasted some indicative signs:
－
－－
－
DANGER
－
－－
－
WARNING
－
－－
－
CAUTION
－
－－
－
CONSULTATION
When reading this manual, the operator must pay particular attention to the symbols on these labels.
Under no circumstances shall these labels be covered. If they are damaged, please replace them
immediately.
BEFORE MACHINE START-UP
BRUSH / PAD-HOLDER INSTALLING AND REMOVAL
NOTE
According to the type of floor to be cleaned, the machine may be installed with brush
(Figure 3, A), or a pad-holder (Figure 3, B and C).
CAUTION
！
！！
！
When manually installing or removing the brush/pad-holder, first ensure that all the
switches are in the “off” position and lift the squeegee off the floor. Only after which
can the brush or pad-holder be worked on. Always wear protective gloves.
1. (Only applicable to AS430C ): make sure the power cable
(9) disconnecting the power supply and the switch (38) is
at the disconnecting (Off) condition.
2. Press down the handle (2) to lift the tank body (26).
1. Put the brush (A) or the pad-holder (B – C) under the case.
2. Use the handle (2) to lower the tank body (26) to come into
contact with the brush or pad-holder.
3. Manually attach by following the arrow head (D) to install
the brush/pad-holder (as shown in Figure 3).
6. Remove by turning the brush/pad-holder in the opposite
direction and it can be taken off. (Figure 3)
SQUEEGEE ADJUSTING
7. Install the squeegee and tighten the knobs. Then connect
the vacuum hose to the squeegee assembly.
.
8. Adjust the squeegee through the adjusting handle (A) of the squeegee (Figure 4).
1) If the mid-section of the rear squeegee bracket, section B, has a gap with the floor or the
downward pressure is relatively light, adjust the handle in an anti-clockwise direction until the
