Viper AS7690T User Manual

INSTRUCTION FOR USE
ENGLISH
8

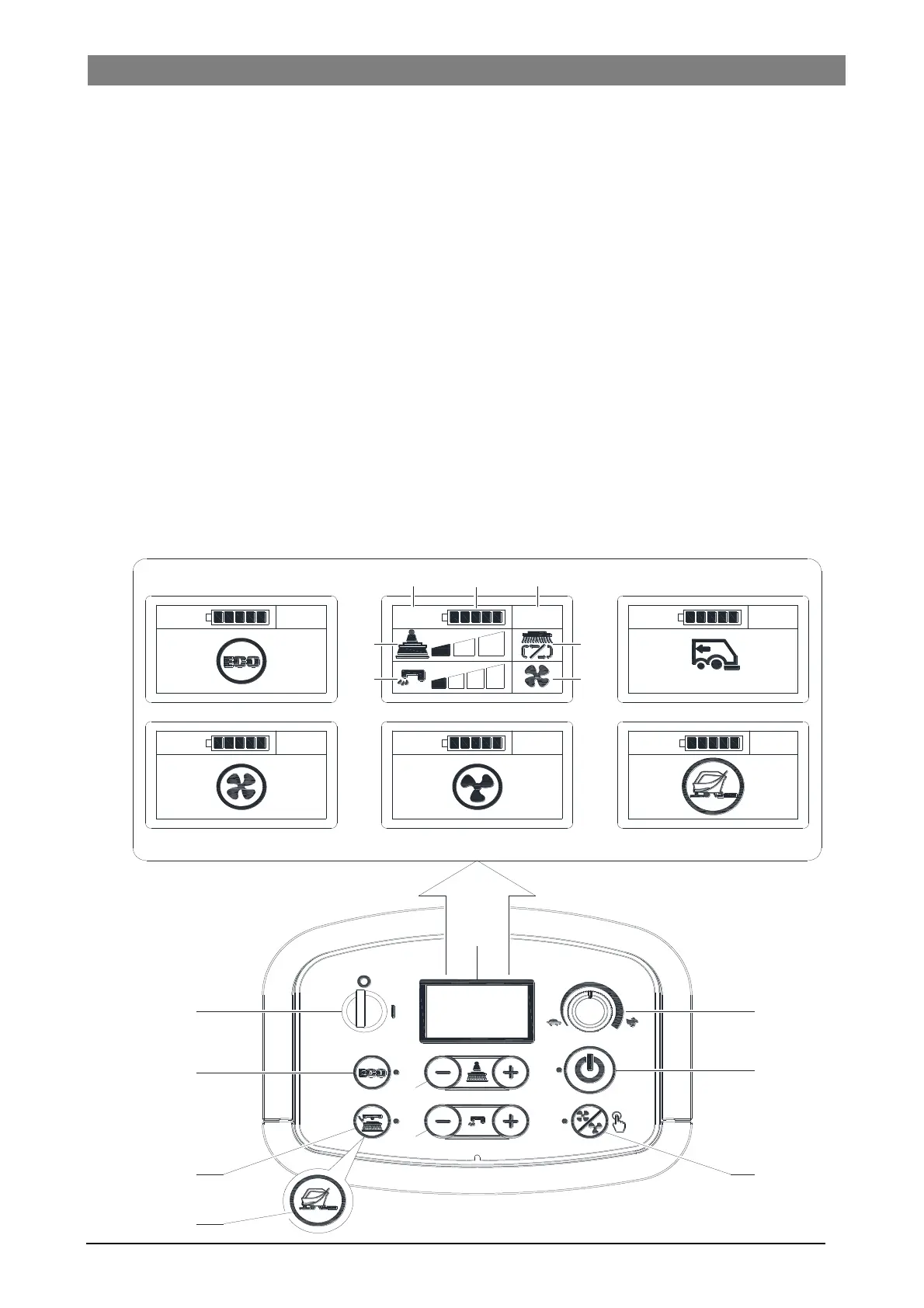

CONTROL PANEL (as shown in Figure 3)
41. Multifunction display
Items displayed:
A) Battery type
B) Battery charge level
C) Hours worked
D) ECO mode
E) Vacuum normal mode
F) Vacuum silence mode
G) Reverse mode
H) Extra pressure active
I ) Detergent solution flow quantity
J ) Brush work mode
K) Vacuum mode
L) Floor prep mode
42. Ignition key (0 - I)
43. ECO mode button
• LED on-below function activated
• water flow at minimum (level 1)
• pressure at minimum (level 1)
• The vacuum in silent mode
44. Brush/pad-holder release button (only for disc
machine)
• Flashing LED-Releasing system activated
45. Floor prep button (only for orbital machine)
• Travel speed pre-set to 1Km/hour
• LED on-below function activated
• water flow at minimum (level 1)
• pressure at maximum (level 3)
• The vacuum in normal mode
46. Brush pressure adjusting button
47. Solution flow adjusting button
48. Speed adjuster
49. One-button start
• LED on below-function activated
• water system minimum (level 1)
• pressure at minimum (level 1)
• vacuum system normal
50. Vacuum system adjustment button (press the button 1
second to activation)
• LED on-normal mode
• Flashing LED-Slient mode
1S
0000.H
AGM
R
AGMAGM
AGM AGM
0000.H0000.H
0000.H 0000.H
AGM
0000.H
I
H
K
J
L
B
G
D
E
F
41
48
49
50
42
43
44
47
46
A
C
45
Figure 3
