Viper AS7690T - Machine Structure and Components

INSTRUCTION FOR USE
ENGLISH
6
MACHINE DESCRIPTION
MACHINE STRUCTURE (as shown in Figure 1)
1. Recovery tank lid
2. Can holder
3. Handlebar
4. Control panel
5. Control box
6. Serial number plate/technical data
7. Outlet cover
8. Squeegee knobs
9. Squeegee vacuum hose
10. Squeegee balance adjusting knob
11. Squeegee
12. Solution filter
13. Driving wheels
14. Solution tank
15. Hinge
16. Recovery tank
17. Filter cover
18. Filler hose holder
19. Filter support
20. Tank cover gasket
21. Debris collection box
22. Float ball filter
23. Solution /clean water tap
24. Rear steering wheels
25. Brush system (only for disc machine)
26. Splash guard
27. Orbital head adjusting knob
28. Orbital system (only for orbital machine)

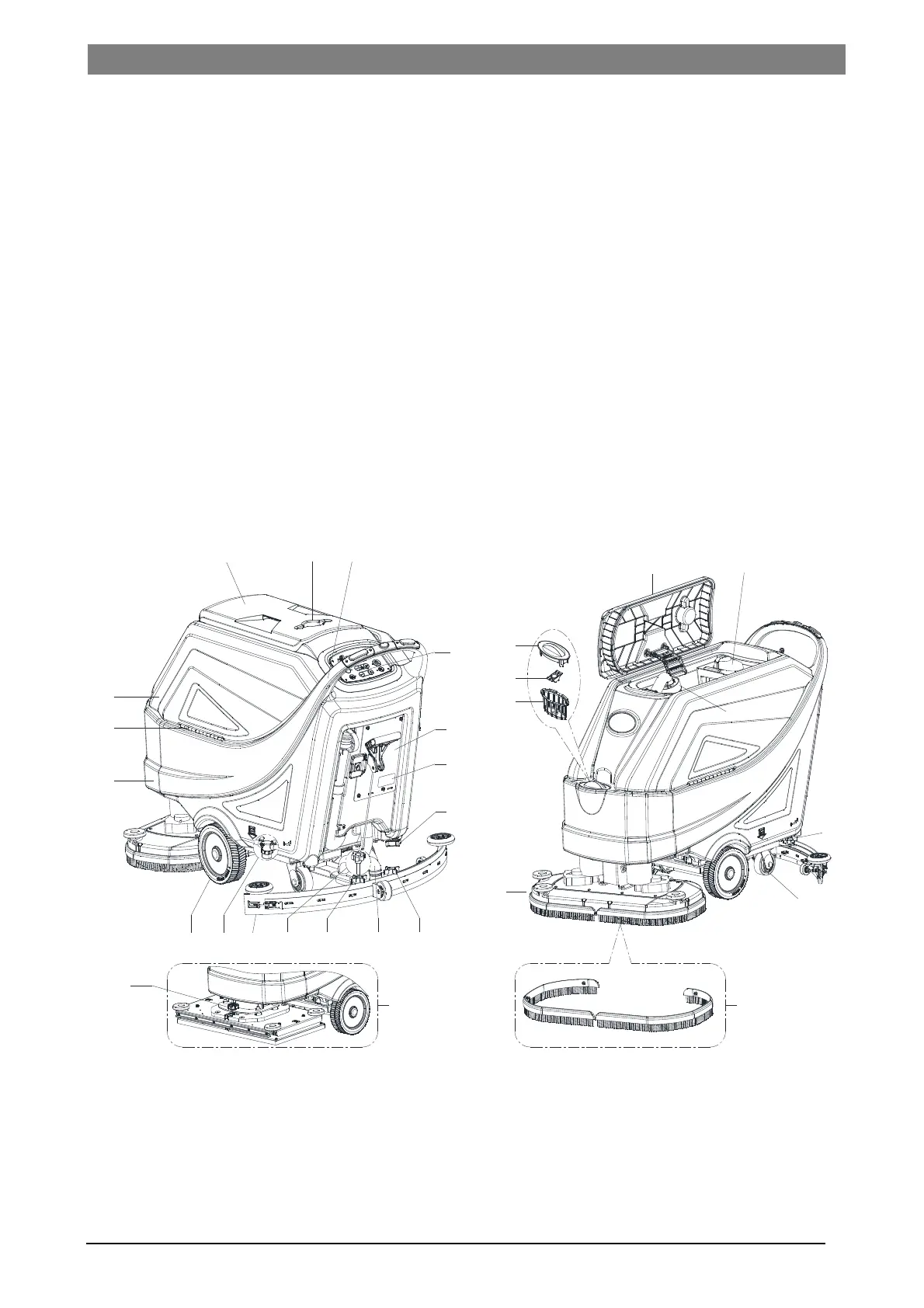

Figure 1
