15
BATTERY INSTALLATION AND BATTERY TYPE SETTING (WET OR GEL/ AGM)
Battery installation
1. Open the recovery tank lid (1, Figure. 1) and check that the recovery tank (16) is empty; otherwise empty it with the drain hose.
(37, Figure. 2)
2. Close the recovery tank lid (1, Figure. 1).
3. Raise the recovery tank (16, Figure. 1) carefully.
4. The machine is supplied with cables suitable to install two 12V batteries or four 6V batteries. Carefully put the batteries into the
compartment, then install them correctly. Put the battery fixed plate correctly as (Figure. 4).
5. Route and install the battery cable as shown in (Figure 4), then carefully tighten the nut on each battery terminal.
6. Place the protection cap on each terminal, then connect the battery connector (29, Figure. 2).
7. Carefully lower the recovery tank (16, Figure. 1).

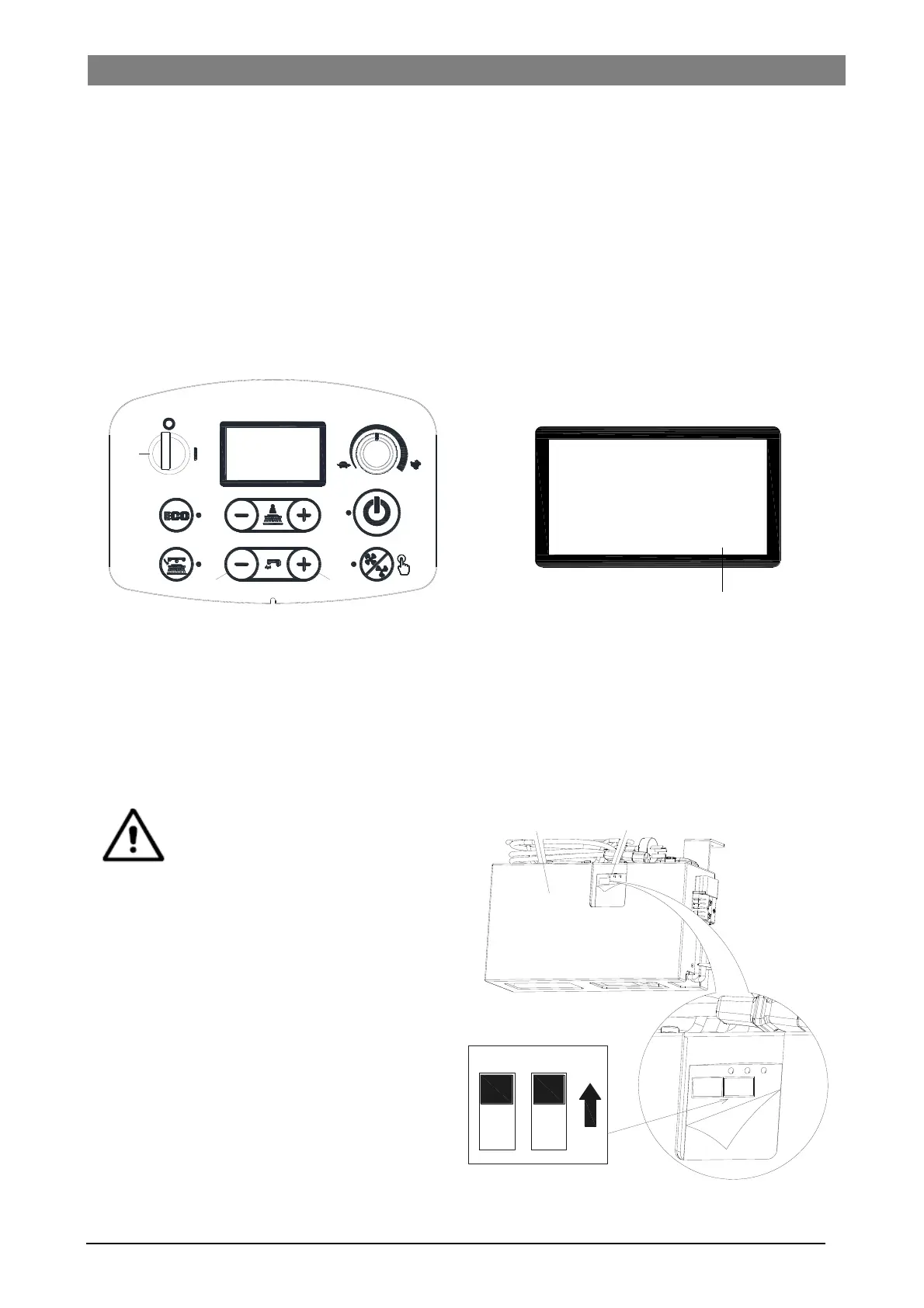

Battery type setting (WET OR GEL/AMG)
Access to select battery mode
According to the type of batteries (WET or GEL/AGM), set the machine as follows:
1. Press water flow button "+"(A, Figure. 5) and "-" (B, Figure. 5) at the same time .
2. Insert the ignition key (C, Figure. 5) and turn it to "I".
3. Several seconds later enter to the screen of selecting battery mode (Figure. 6)
4. Press water flow button "-"(A, Figure. 5) and "+"(B, Figure. 5) to select battery mode (H, Figure. 6)
5. 3 seconds later show " Update OK" means setting succeeds, turn on to restart. (C, Figure. 5)
Battery charger setting (only for on-board charger if installed)
WARNING!
Do not to set charger unless you have pro-
fessional training
1. Turn off the machine and disassemble the On-board charger
(A, Figure. 7) from the machine. Then pry open the label
on the charger cover (B, Figure. 7) you will find the 2 sets
of dipswitches (SW1 and SW2) in the charger.
2. Only the set of dipswitch SW1 (the one on the left side) has
effect on charging curve selection accordingly to the table
below.
Value:
Access to select battery mode
Panel Setting
1 Battery Type
Cust
H
AGM
To Next Page
