Installation and Connections (System Examples)
ONE SOURCE TO MANY DISPLAYS
Sending video from a single source to multiple displays requires a network switch. A single encoder can be linked to multiple
decoders (point-to-multipoint) over a network. Implementing a one to many installations dramatically decreases the amount of
equipment required at the source location.
The encoder and each decoder can be located no more than 100m (328ft) from the switch.

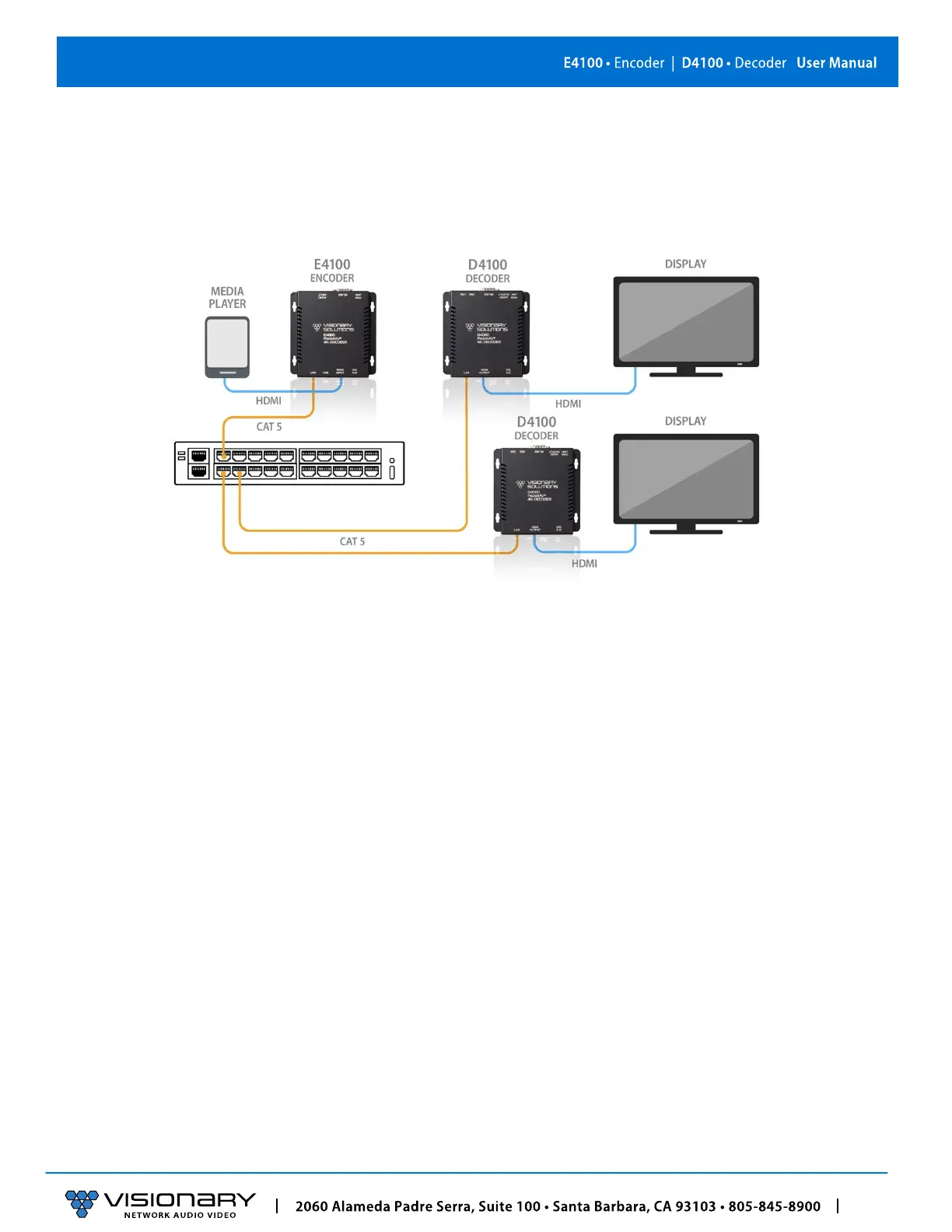

Figure 4. One Source to Many Displays Diagram
