Vislink UltraReceiver LD User Manual

UltraReceiver LD User Manual
Specification
Issue No: 2.01 Page: 9
Ref: ULRXLD-ASUM-700X Copyright © 2020 Vislink Technologies, Inc.
3.11. Input / Output Connections

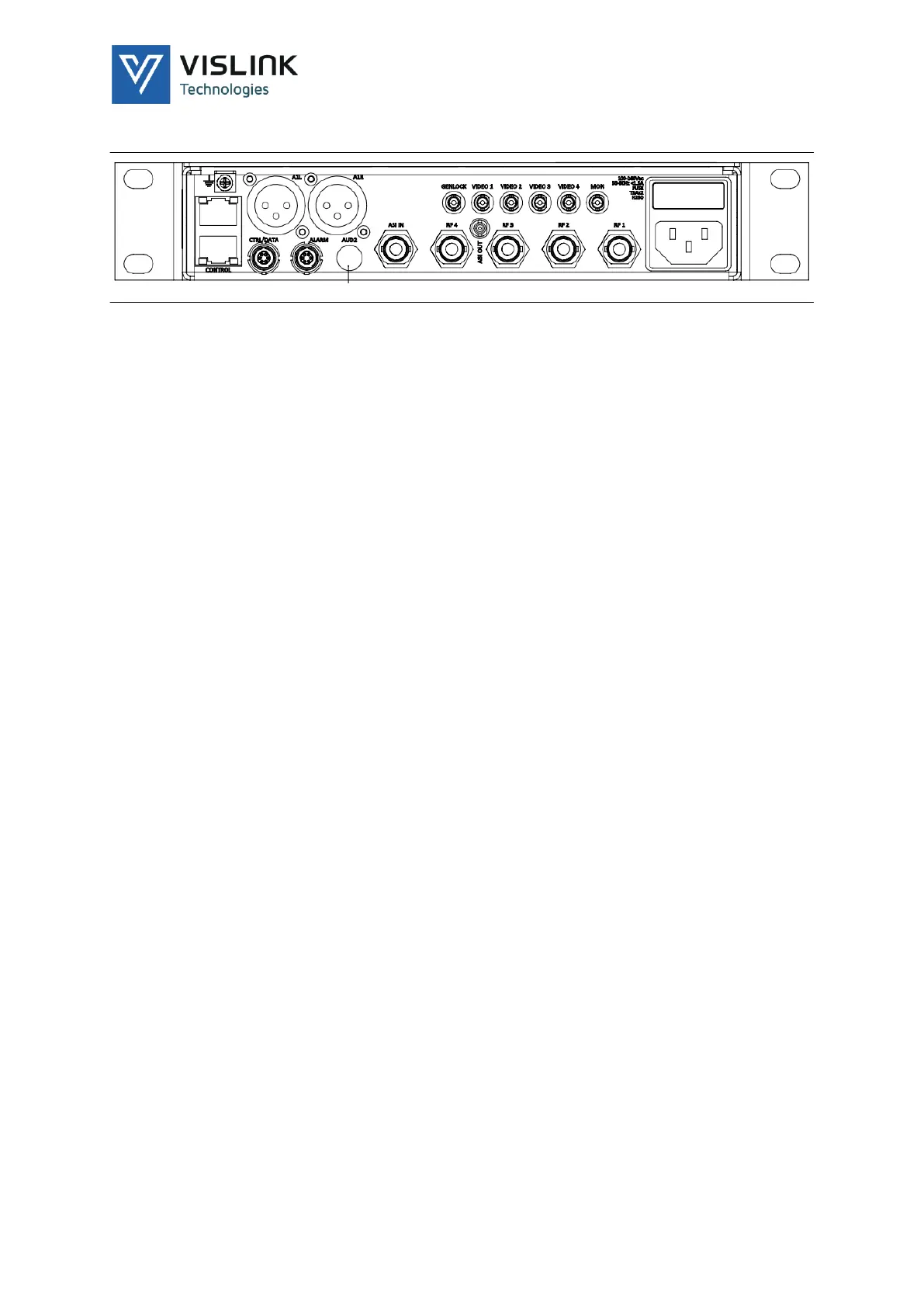

Figure 3-1 Input / Output Connections
3.11.1. Inputs and Outputs
Summary (details in Section 3.12):
 4 x UHF input 70MHz to 860 MHz combined using Maximal Ratio Combining (MRC)
 1 x ASI input (complies with ISO/IEC 13818-2 – 188byte mode)
 1 x Frame lock input (Black/Burst or Tri-level)
 4 x Video outputs UHD or 1x HD
 1 x Analog audio channel output
 1 x Switchable confidence monitor / ASI output
 1 x ASI output (complies with ISO/IEC 13818-2 – 188-byte mode)
 Wayside data channel output
 IP Video connection (Ethernet RJ45) (not used)
