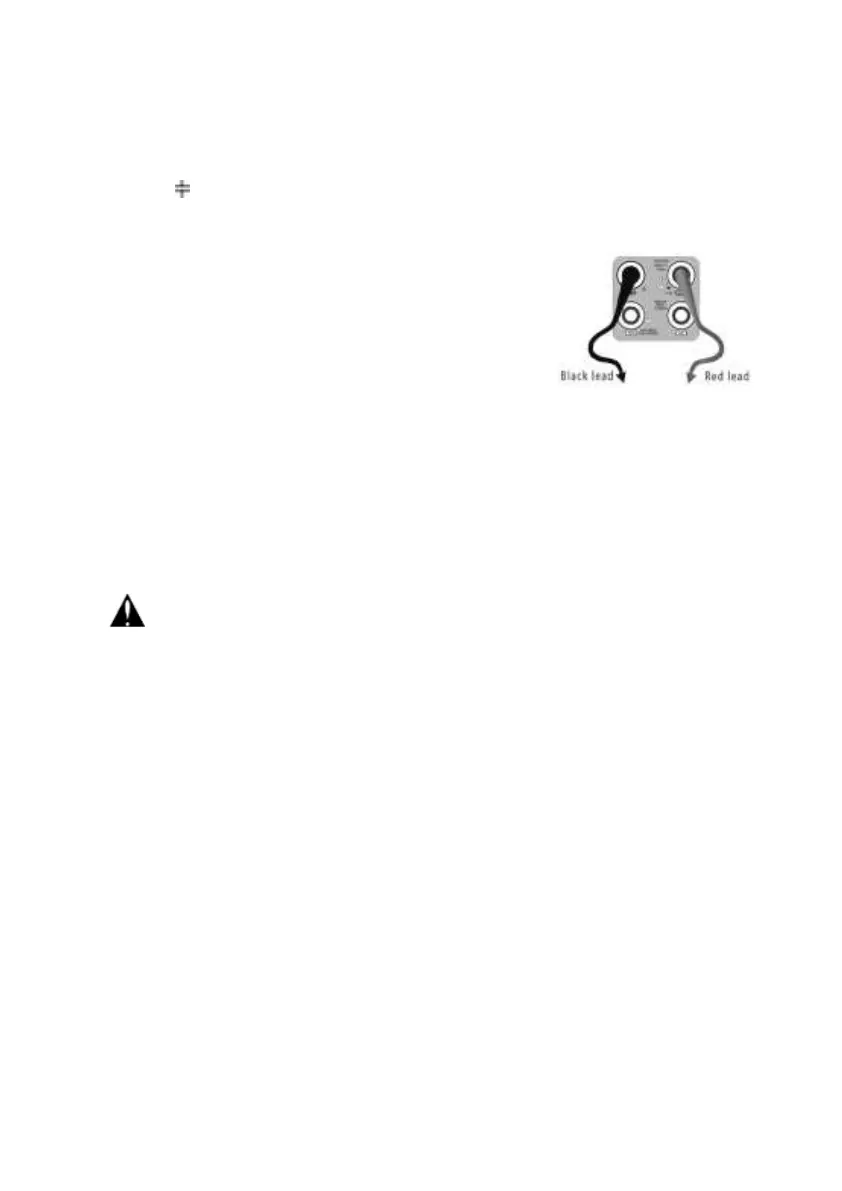

a. Connect the black test lead to the“ COM ” jack and the red test lead to the “V/Ω ” jack.
b. Select “ ” to enter, enter the capacitance measurement.
c. The tester default auto range status, and manual range by press upward and downward key,
Auto rang by press the key “NEAR”
Manual range: 0.000nF 6.600nF range
00.00nF 66.00nF range
000.0nF 660.0nF range
0.000uF 6.600μF range
00.00uF 66.00μF range
000.0uF 660.0μF range
0.000mF 6.600mF range
00.00mF 66.00mF range
d. Before connect test leads across two sides of the capacitor under measurement, be sure
that the capacitor has been discharged fully.
Note:
a. The capacitance of a capacitor should be tested separately, should not test in
the installation of circuit.
b. To avoid electric shock, be sure the capacitors have been discharged fully before measu
ring the capacitance of a capacitor.
c. While testing the capacitance of a capacitor to
660uF, the Max time will be 6.6 seconds, if the capacitor is leaked or damaged,
the data can’t be read. The tester will be normal after disconnecting the capacitor.
