Vivotek FD8166 User Manual

VIVOTEK
44 - User's Manual

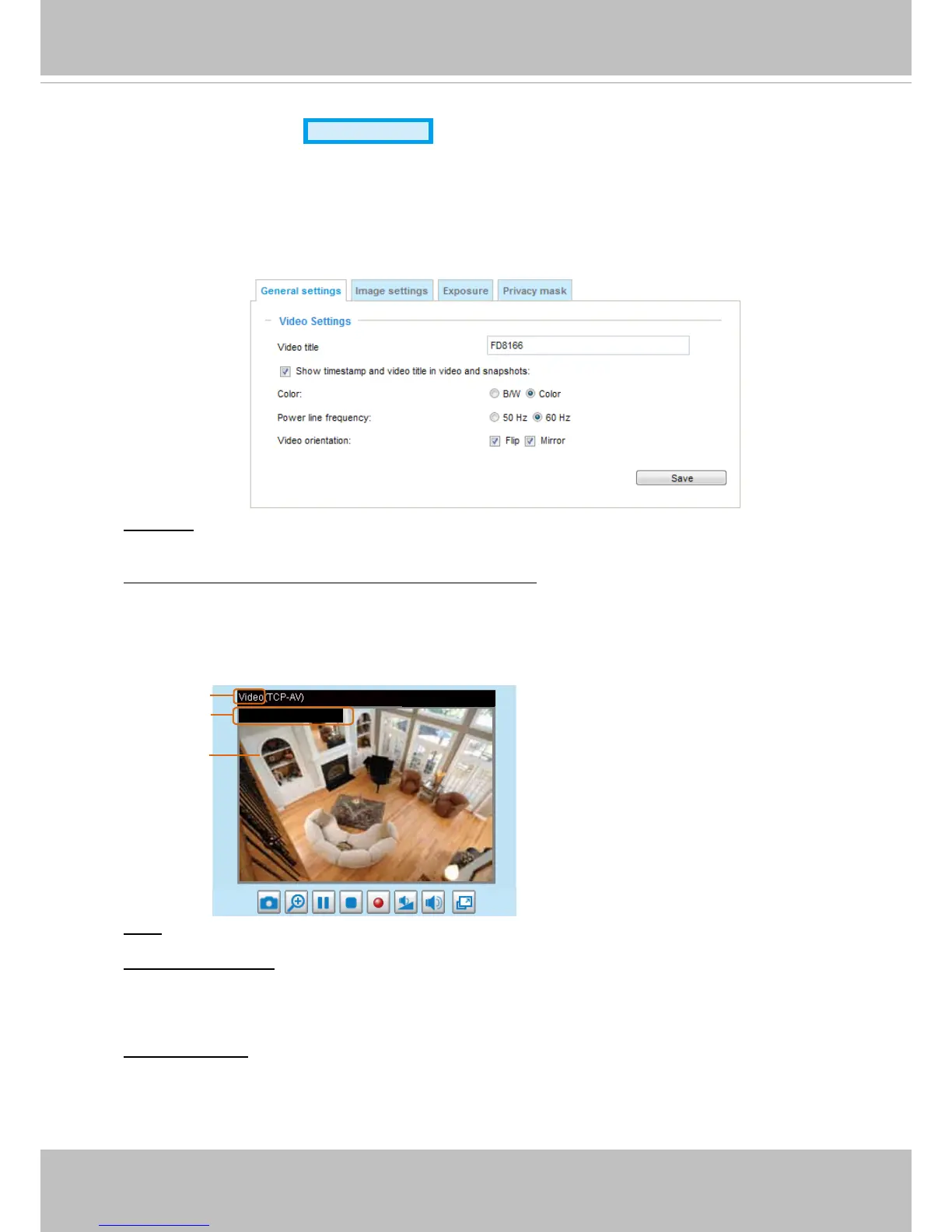

Media > Image
Advanced Mode

This section explains how to configure the image settings of the Network Camera. It is
composed of the following four columns: General settings, Picture settings, Exposure, and
Privacy mask.
General settings
Video title: Enter a name that will be displayed on the title bar of the live video as the picture shown
below.
Show timestamp and video title in videos and snapshots: Select this checkbox if you prefer video
title and time stamp to display in videos and snapshots.
A zoom indicator will be displayed on the Home page when you zoom in/out the live viewing
window as the picture shown below. You may zoom in/out the image by scrolling the mouse
wheel inside the live viewing window, and the maximum zoom in will be up to 4 times.
Video Title
Title and Time
Video 17:08:56 2010/11/25
2012/03/09 17:08:56
X1.1
Zoom Factor
Color: Select to display color or black/white video streams.
Power line frequency: Set the power line frequency consistent with local utility settings to eliminate
image flickering associated with fluorescent lights. Note that after the power line frequency is
changed, you must disconnect and reconnect the power cord of the Network Camera in order for
the new setting to take effect.
Video orientation: Flip--vertically reflect the display of the live video; Mirror--horizontally reflect
the display of the live video. Select both options if the Network Camera is installed upside-down
(e.g., on the ceiling) to correct the image orientation. Please note that if you have congured preset
locations, those locations will be cleared after ip/mirror setting.

Vivotek FD8166 Specifications

General

Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1920 x 1080 (HD 1080)
Pan range	0 - 45 °
White balance	Auto
Tilt angle range	33 - 90 °
Angle of rotation	360 °
Camera shutter type	Electronic
Camera shutter speed	1/32000 s
Minimum illumination	0.18 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
Optical zoom	48 x
Fixed focal length	6 mm
Video motion detection	Yes
Flash memory	16 MB
Compatible memory cards	microSD (TransFlash), SDHC
LED type	IR
Number of illumination LEDs	50
Certification	CE, C-Tick, LVD, VCCI
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Signal-to-Noise Ratio (SNR)	53 dB
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Power source type	PoE
Power consumption (typical)	2.9 W
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	90 mm
Height	50 mm
Weight	144 g
