Vivotek FD8166 User Manual

VIVOTEK
14 - User's Manual

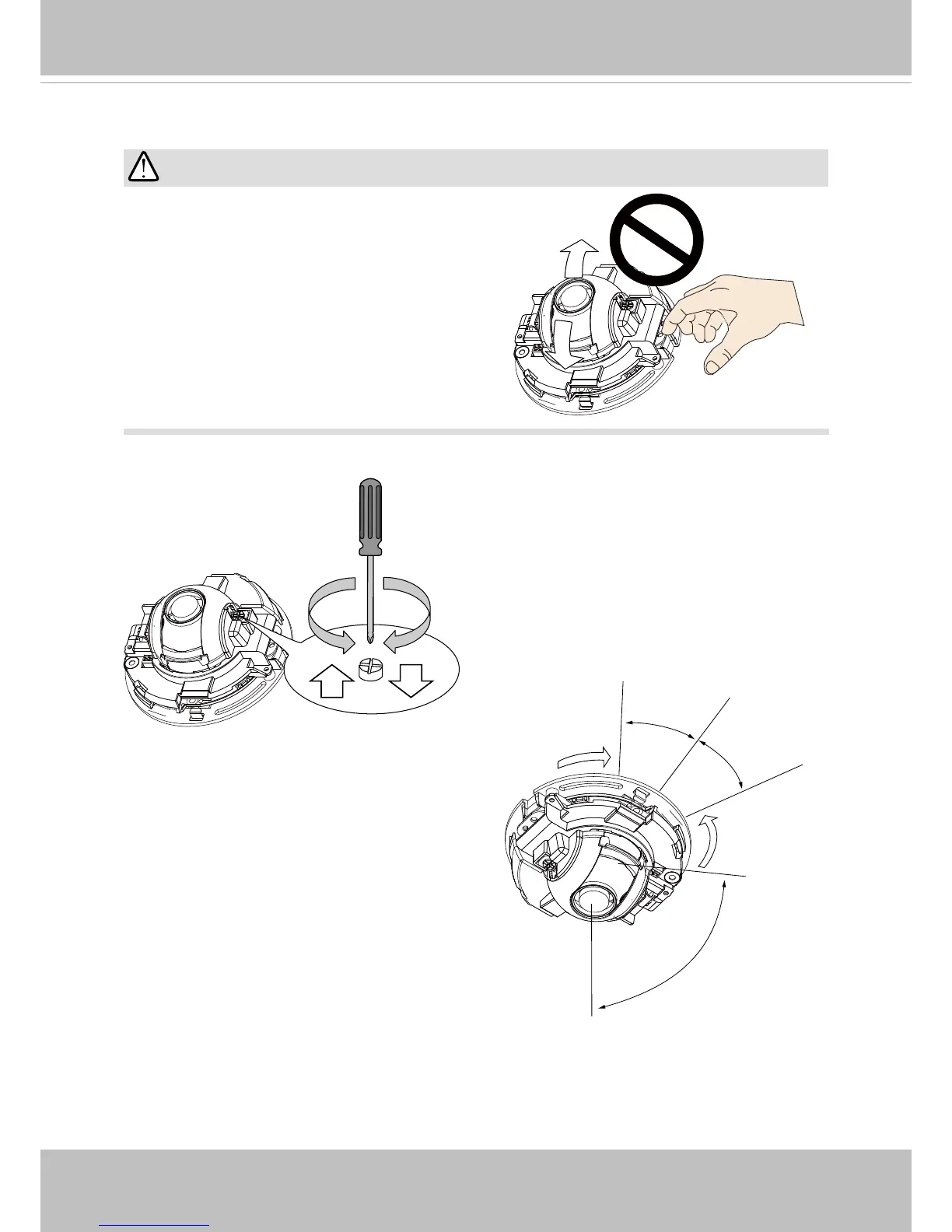

Adjusting the Lens
WARNING!
Do not use your hands to tune the lens module's
tilt angle. Doing so will damage the delicate tilt
mechanism.
1. There is a tilt adjustment screw near the
lens module. Use a #0, #1, or #2 Phillips
screwdriver to turn the screw and the lens
will move upwards or downwards.
3. Tighten the camera's mounting screws
after you change the horizontal shooting
direction.
Lens UP Lens DOWN
2. You may also tune the camera's horizontal
orientation by turning it along its curved
screw slots.
25°
25°
57°

Vivotek FD8166 Specifications

General

Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1920 x 1080 (HD 1080)
Pan range	0 - 45 °
White balance	Auto
Tilt angle range	33 - 90 °
Angle of rotation	360 °
Camera shutter type	Electronic
Camera shutter speed	1/32000 s
Minimum illumination	0.18 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
Optical zoom	48 x
Fixed focal length	6 mm
Video motion detection	Yes
Flash memory	16 MB
Compatible memory cards	microSD (TransFlash), SDHC
LED type	IR
Number of illumination LEDs	50
Certification	CE, C-Tick, LVD, VCCI
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Signal-to-Noise Ratio (SNR)	53 dB
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Power source type	PoE
Power consumption (typical)	2.9 W
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	90 mm
Height	50 mm
Weight	144 g
