Network Deployment

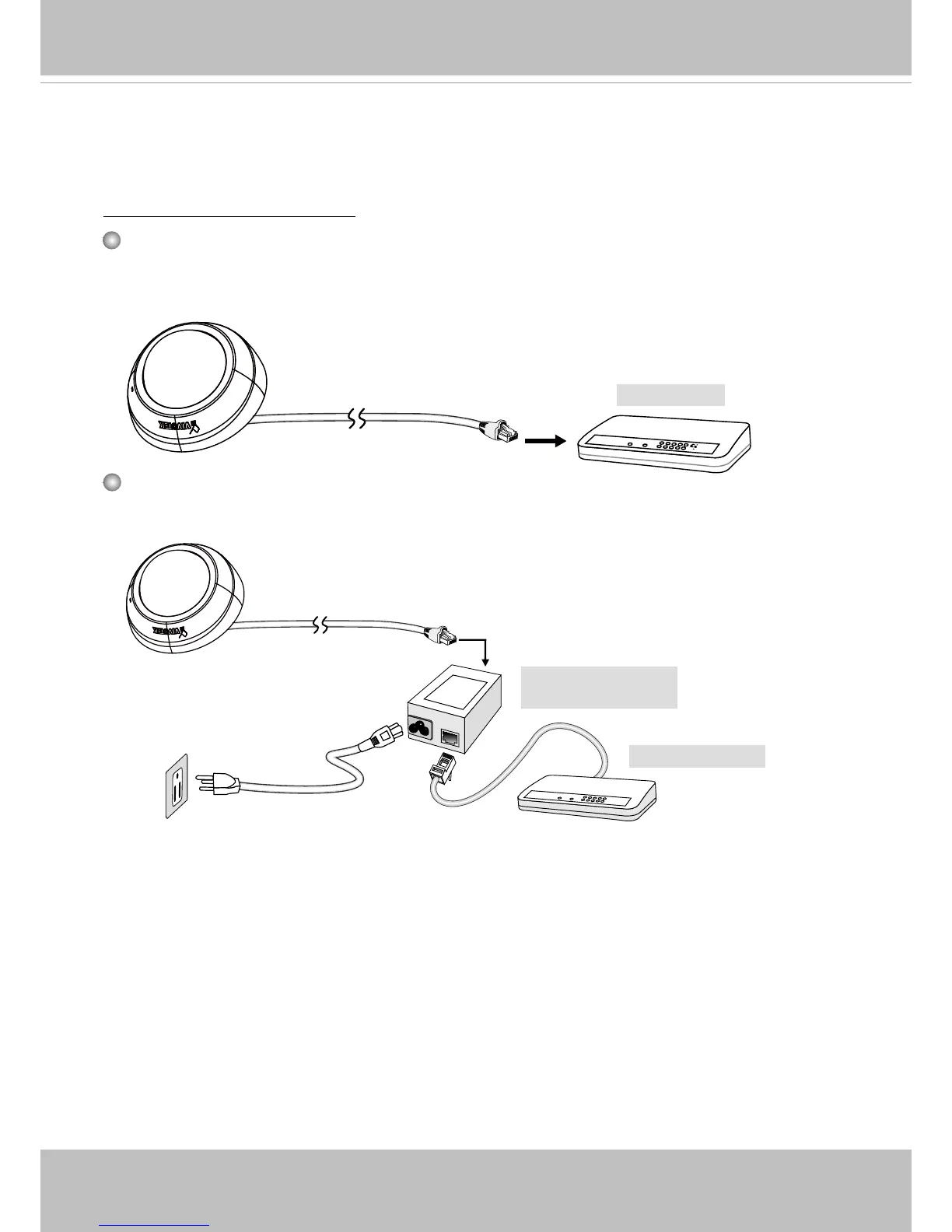

General Connection (without PoE)
Power over Ethernet (PoE)
POW
ER
C
O
LL
I
S
ION
L
I
N
K
RE
CEIVE
PARTITIO
N
1
2
3
4
5
PoE Switch
When using a PoE-enabled switch
This Network Camera is PoE-compliant, allowing transmission of power and data via a single
Ethernet cable. Follow the below illustration to connect the camera to a PoE-enabled switch
via Ethernet cable.
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE
switch.
POW
ER
C
O
LL
I
S
ION
L
I
N
K
RECEIVE
PARTITIO
N
1
2
3
4
5
PoE Power Injector
(optional)
Non-PoE Switch

Vivotek FD8166 Specifications

General

Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1920 x 1080 (HD 1080)
Pan range	0 - 45 °
White balance	Auto
Tilt angle range	33 - 90 °
Angle of rotation	360 °
Camera shutter type	Electronic
Camera shutter speed	1/32000 s
Minimum illumination	0.18 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
Optical zoom	48 x
Fixed focal length	6 mm
Video motion detection	Yes
Flash memory	16 MB
Compatible memory cards	microSD (TransFlash), SDHC
LED type	IR
Number of illumination LEDs	50
Certification	CE, C-Tick, LVD, VCCI
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Signal-to-Noise Ratio (SNR)	53 dB
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Power source type	PoE
Power consumption (typical)	2.9 W
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	90 mm
Height	50 mm
Weight	144 g
