VIVOTEK
User's Manual - 9

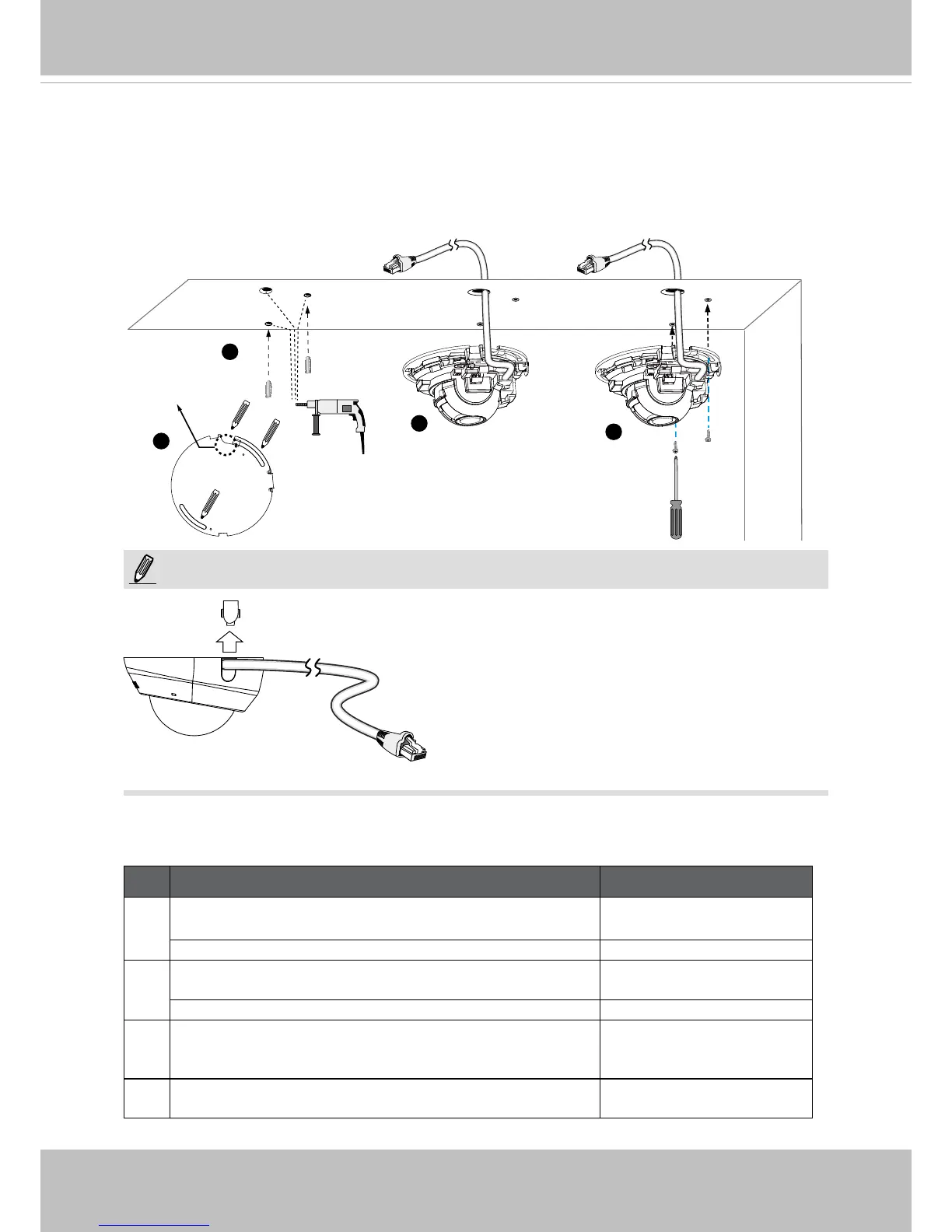

Mounting the Network Camera - Ceiling or Wall Mount
1. Use the curved slots on the camera as a template to mark where holes will be drilled on
the ceiling. Drill two holes into the ceiling; and hammer in the plastic anchors.
2. Drill another hole if you want to route cables through the ceiling or wall.
3. Connect and route an Ethernet cable through the ceiling or wall.
4. Attach the Network Camera to the ceiling using two included screws.
1
2
3
4
NOTE:
1. Do not completely tighten the mounting screws
in the screw slots yet. You may need to turn the
camera left or right for a best shooting direction
later.
2. The camera can only be powered by PoE. There
is no DC or AC input connector.
3. As shown on the left, you may also route cable
from the side.
Routing hole
position
LED Denitions
Item LED Status Description
1 Steady Red Power on and system boot-
ing
Red LED off Power off
2 Steady Red + blinking Green every 1 sec. (Green LED on
for 1 sec and off for another)
Network heartbeat
Steady Red + Green LED off Network disconnected
3 Blinking Red every 0.15 sec. + Blinking Green every 1 sec.
(Red LED on for 0.15 sec. and Green LED on for 1 sec. and
off for another)
Upgrading rmware
4 Blinking Red every 0.15 sec. + blinking Green every 0.15
sec.
Restoring defaults
