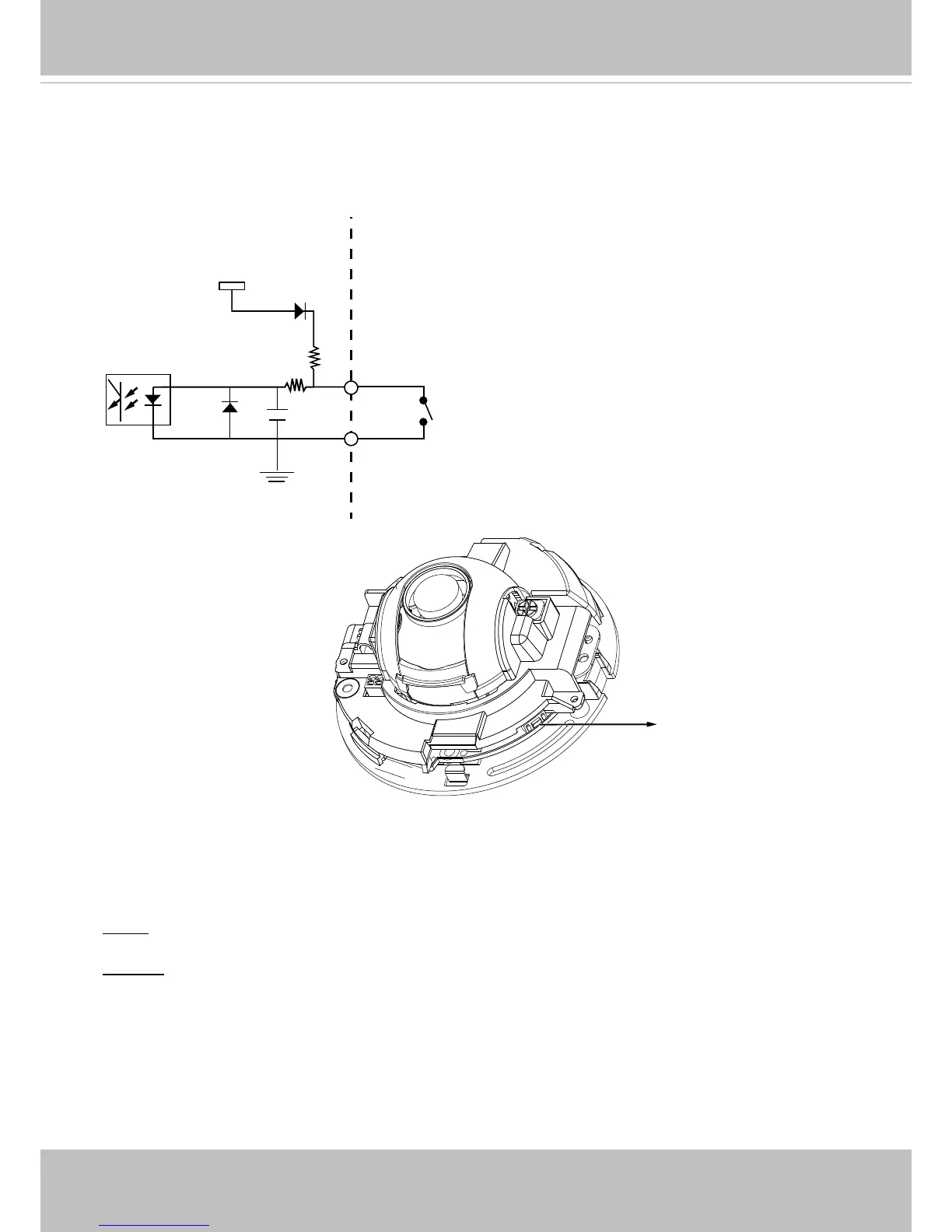

Digital Input Diagram
Please refer to the following illustration for the connection method.
3.3V
Digital input
DI+
DI-: Ground
DI-
Max. voltage: 40V
Hardware Reset
The reset button is used to reset the system or restore the factory default settings. Sometimes
resetting the system can return the camera to normal operation. If the system problems remain
after reset, restore the factory settings and install again.
Reset: Press and release the reset button. Wait for the Network Camera to reboot.
Restore: Press and hold the recessed reset button until the status LED rapidly blinks. Note that
all settings will be restored to factory default. Upon successful restore, the status LED will blink
green and red during normal operation.
Micro SD/SDHC Card Capacity
This network camera is compliant with Micro SD/SDHC 32GB / 16GB / 8GB and other
preceding standard SD cards.
Reset Button

Vivotek FD8166 Specifications

General

Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1920 x 1080 (HD 1080)
Pan range	0 - 45 °
White balance	Auto
Tilt angle range	33 - 90 °
Angle of rotation	360 °
Camera shutter type	Electronic
Camera shutter speed	1/32000 s
Minimum illumination	0.18 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
Optical zoom	48 x
Fixed focal length	6 mm
Video motion detection	Yes
Flash memory	16 MB
Compatible memory cards	microSD (TransFlash), SDHC
LED type	IR
Number of illumination LEDs	50
Certification	CE, C-Tick, LVD, VCCI
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Signal-to-Noise Ratio (SNR)	53 dB
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Power source type	PoE
Power consumption (typical)	2.9 W
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	90 mm
Height	50 mm
Weight	144 g
