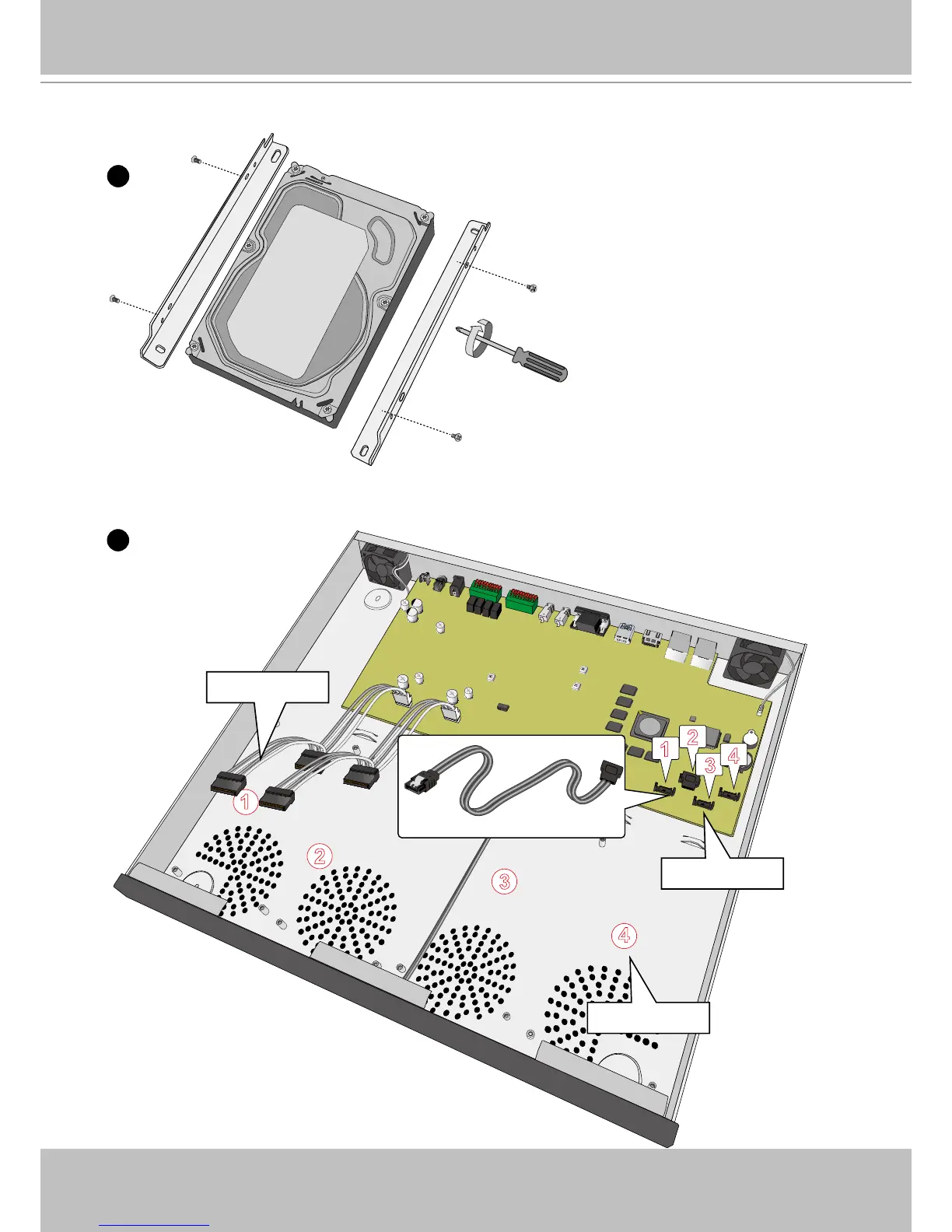

2. Secure the HDD brackets to the hard drives.
2
Label side
3. Connect SATA data cables to the connectors on the main board.
3
1
2
3
4
1
3
4
2
1
2
3
4
HDD connectors
SATA Power
SATA Data
HDD positions
