Physical Description

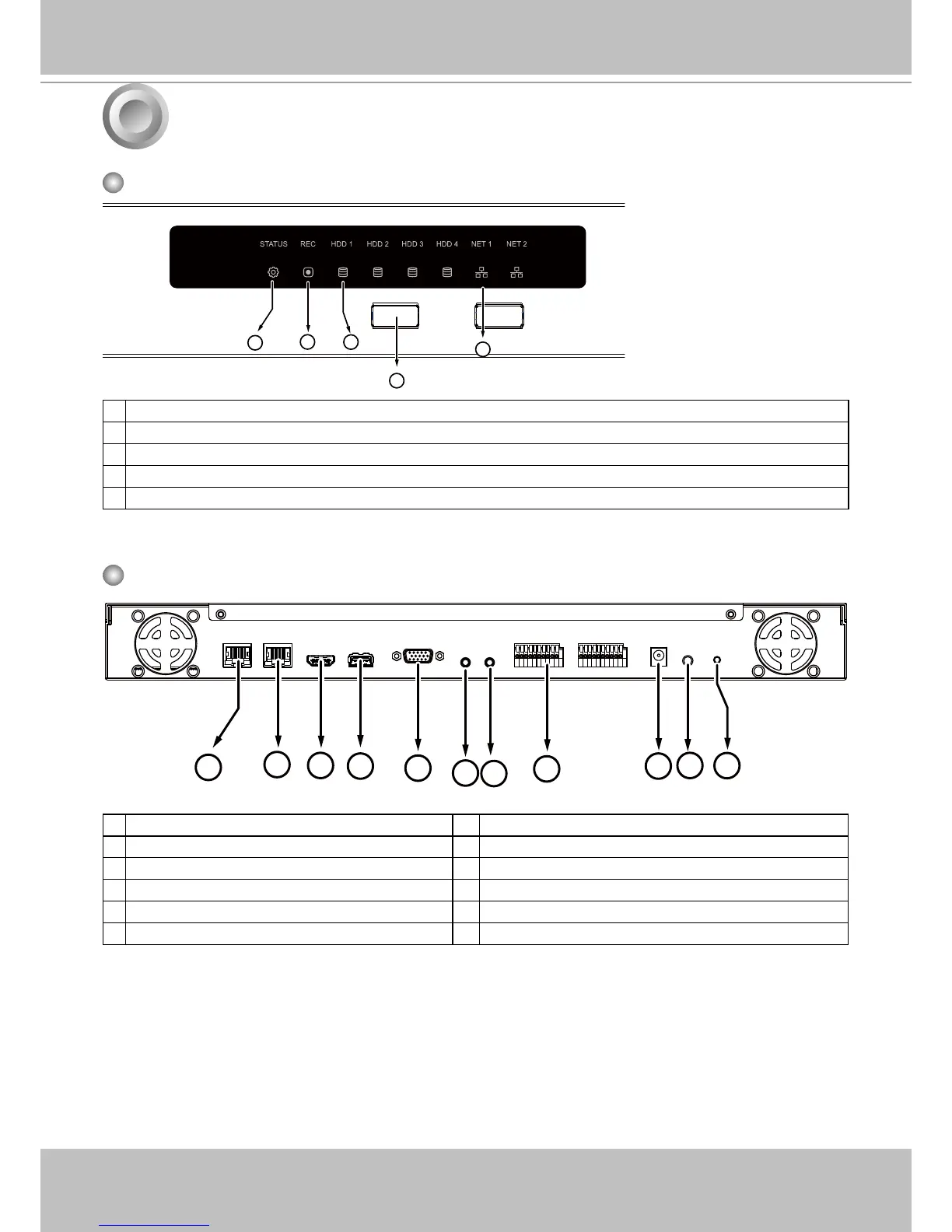

Front View
Rear View
1
2
3
4
5
9
1
2
3
4
5
6
7
8
10
11
1 System status LED
2 Recording activity LED
3 HDD activity LED (#1 ~ 4)
4 USB 2.0 ports
5 Network status/activity LED
1 Net 1 RJ45 port - GbE uplink 7 Audio IN
2 Net 2 RJ45 port - GbE uplink 8 DI/DO terminal block
3 HDMI 9 Power socket (DC56V, 2.5A)
4 USB 3.0 port 10 Power button
5 VGA 11 Reset button
6 Audio OUT
