User's Manual - 45
Chapter Three
Configuation Using the Local Console
The Main Control Portal

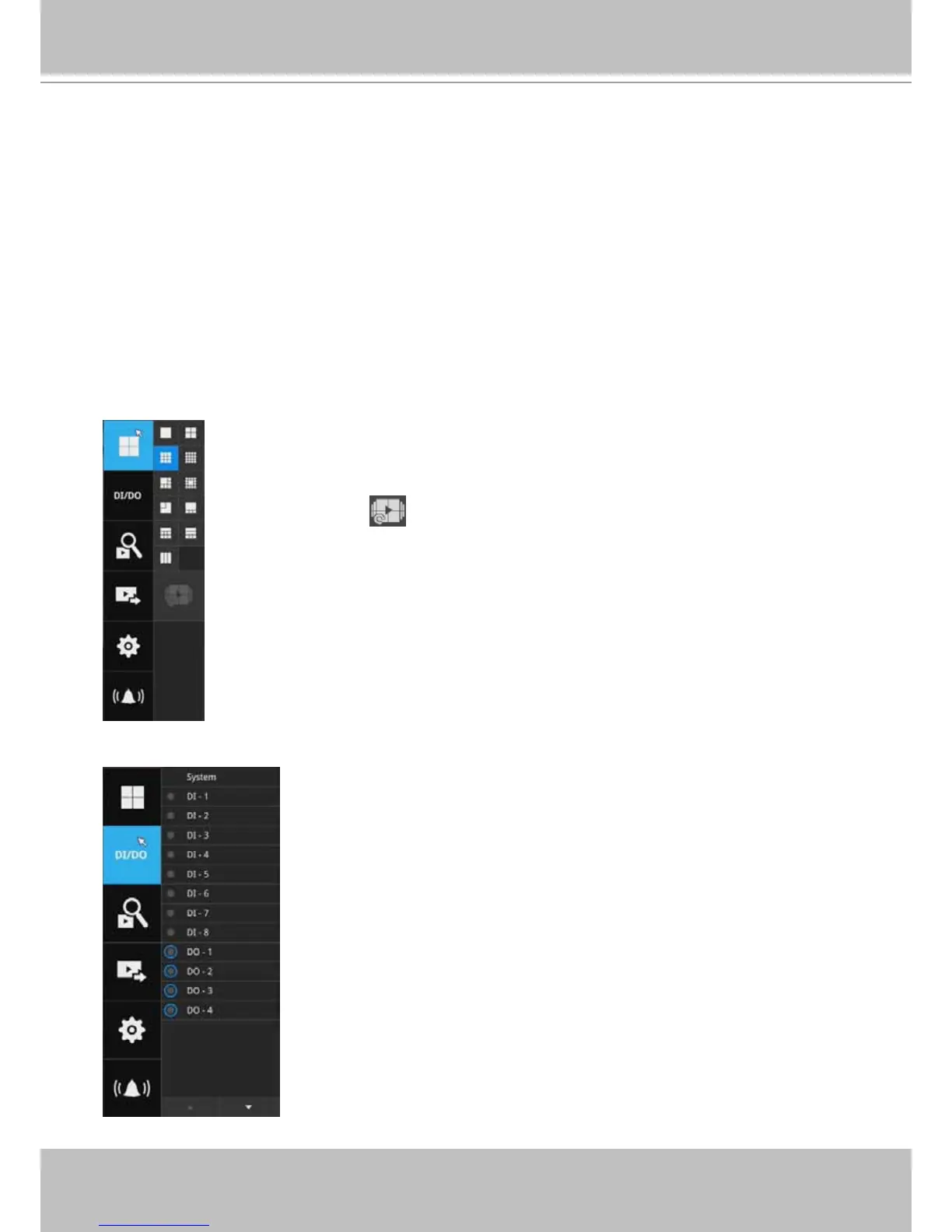

3-1. Layout
By default, 5 typical layouts are provided for the user. They include: 1x1, 2x2,
3x3, 4x4, 1P+3, 1M+5, 1M+12, and 1M+31. If you select the single view layout,
the rotation button
will appear. Click the rotation button below to let the
system swap the display of different cameras by every 10 seconds. The rotation
speed is congurable via Settings > System > Display.
Move your mouse cursor across the screen to display the portal.
3-2. DI/DO
Click on the DI/DO button to display the full list of all DI and DO
signals (whether they are connected or not) from all cameras in the
conguration. If a digital input signal is triggered, e.g., the DI-4 on the
left, its indicator will turn solid white.
