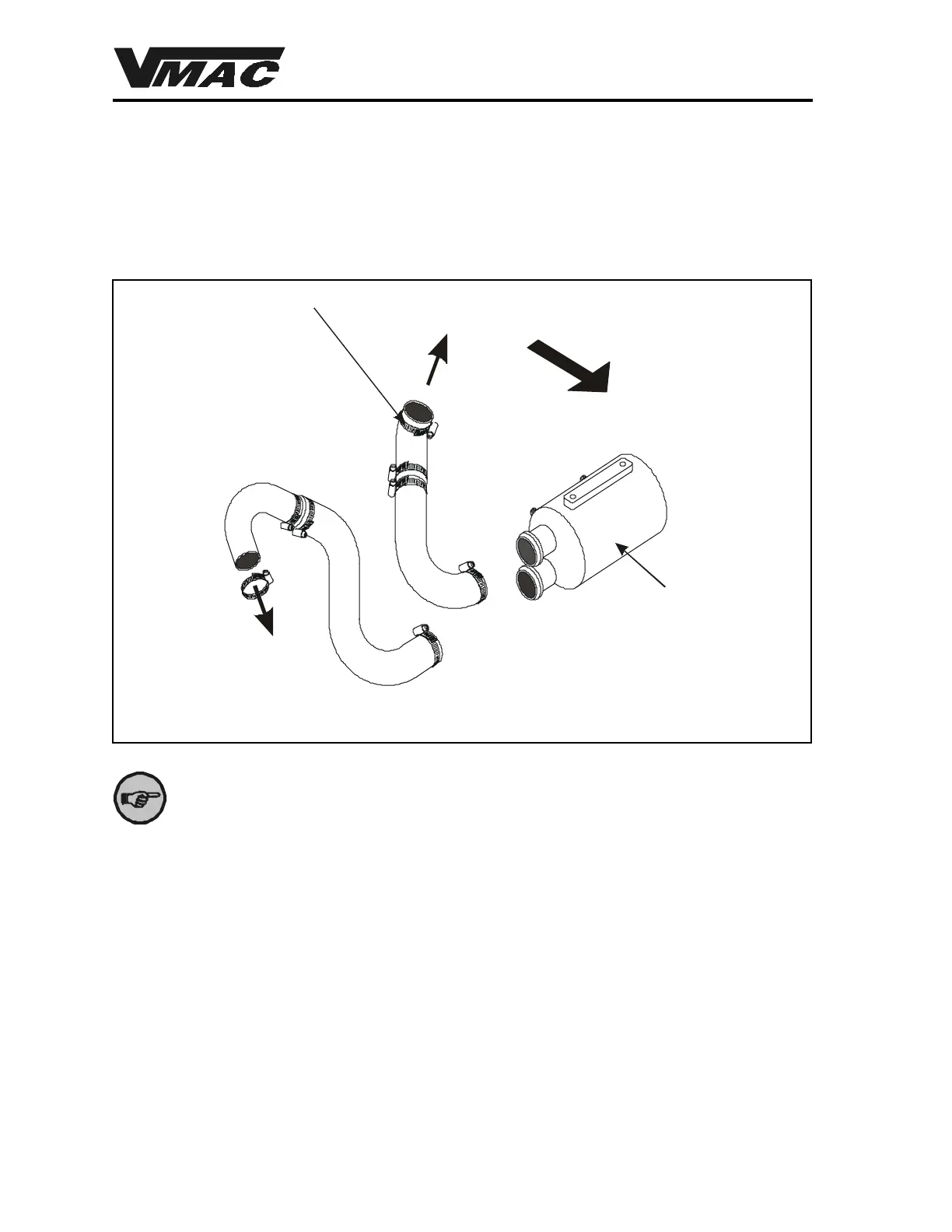

Figure 1.6
NOTE
Figure 1.7 shows the completed installation with cooling hoses and oil lines attached.
1.4.3 All models
1. Slide a hose clamp over the ends of the VR7000 coolant hoses.
2. Insert the hoses on the radiator fitting and the water pump fitting.
3. Tighten all of the clamps securely.
VR7000 Oil Cooler
Part #92051
HS28 Clamp
F
R
O
N
T
O
F
T
R
U
C
K
HS24
Clamps
TO WATER PUMP
TO LOWER RADIATOR
CONNECTION
