Figure 1.7
1.5 Completing the installation
1. Lower the radiator back into place and install the OEM fasteners which hold it in place.
Tighten the fasteners.
2. Install the lower radiator cowling. Replace the fan OEM fan studs with the supplied
8 x 55 mm studs, then install the fan and the supplied fan spacer using Loctite on the
threads. Tighten the fasteners.
3. Install the OEM belt following the belt routing shown in Figure 1.8. Be sure to identify the
correct application. The illustration shows routing for engines with and without air
conditioning and with and without Air Injection Reaction (air pump).

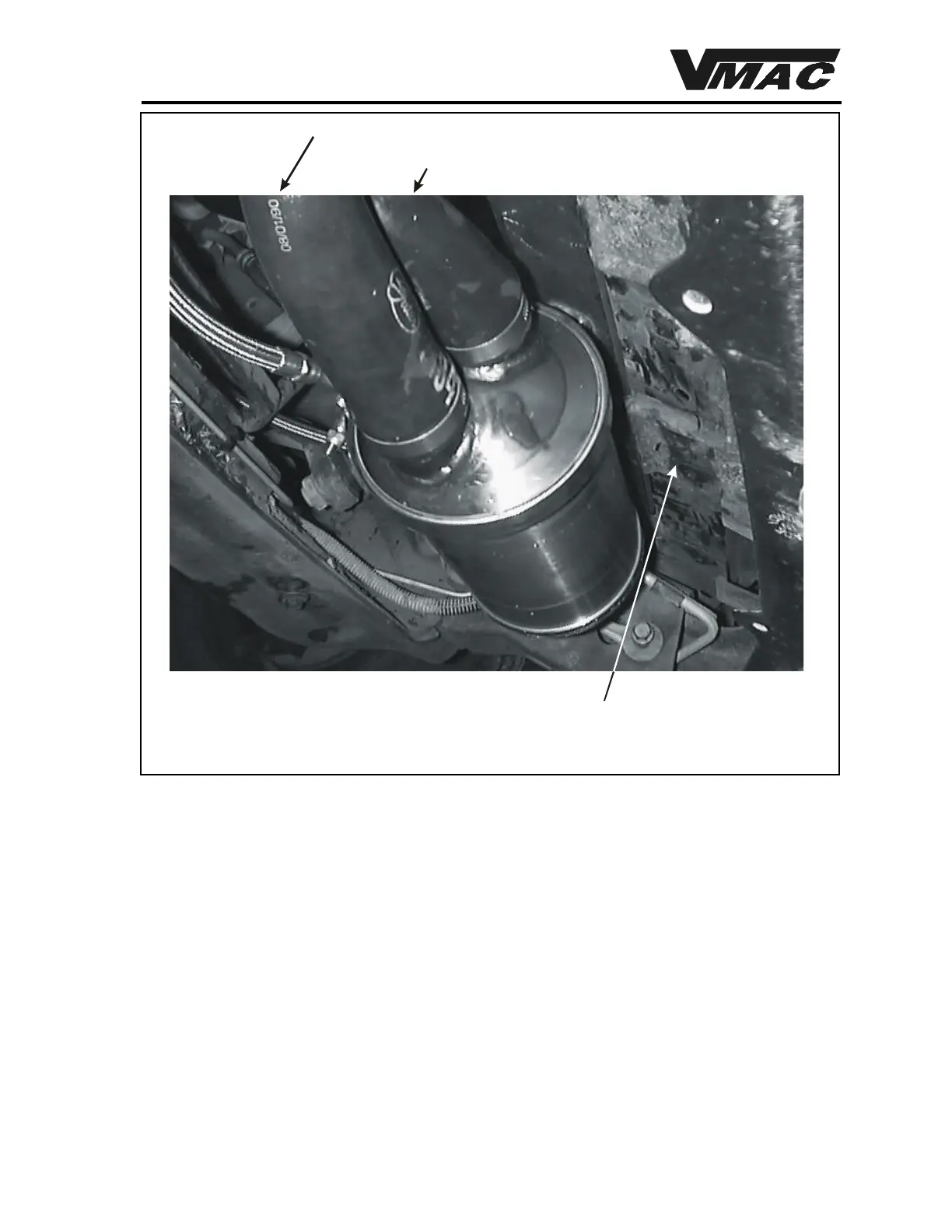

Hose To Lower Radiator Connection
Hose To Water Pump Connection
Cross-Member In Front Of The Radiator
