4. Install the VR7000 belt following the belt routing shown in Figure 1.9. For units without air
conditioning, remove the OEM idler from the OEM bracket and mount it onto the pad on
the front of the VR7000 bracket. Figure 4 shows the belts and idlers in place.
Crankshaft
VR7000 Air Compressor
VR7000 Tensioner
VR7000 Idler
5. Install the upper fan cowling.
A/C
A/C
Alternator
Alternator
Alternator
Alternator
Idler
Idler
Idler
Idler
Idler
Idler
P/S
P/S
P/S
P/S
Crankshaft
Crankshaft
Crankshaft
Crankshaft
Tensioner
Tensioner
Tensioner
Tensioner
Water Pump
Wat er Pum
p
Water Pump
Wat er Pum
p
A.I.R. Pump
A.I.R. Pum
p
WITH AIR CONDITIONING WITHOUT AIR CONDITIONING
WITH AIR CONDITIONING WITHOUT AIR CONDITIONING
WITH
AIR PUMP
WITHOUT
AIR PUMP

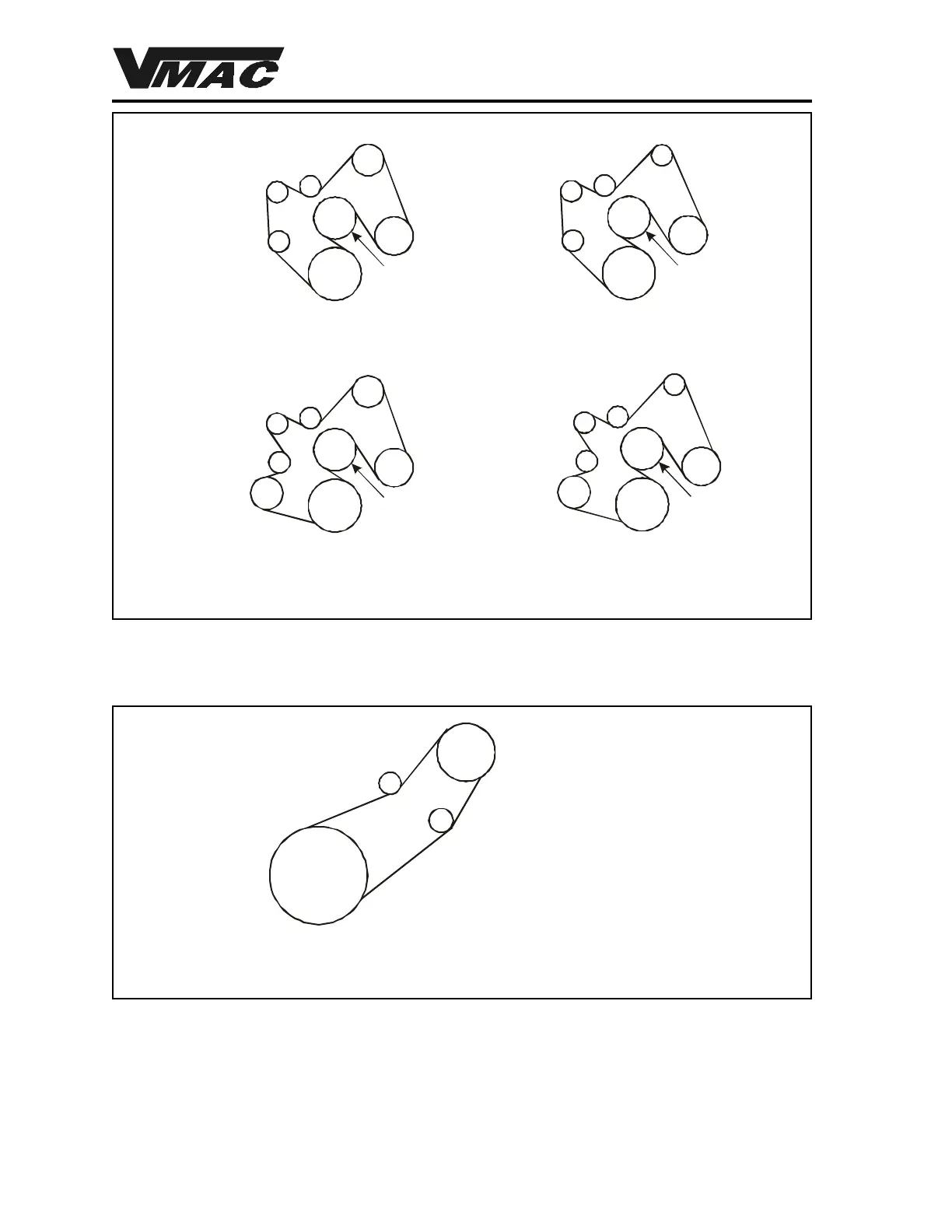

Figure 1.8
Figure 1.9
