Vmac VR7000 - Page 30

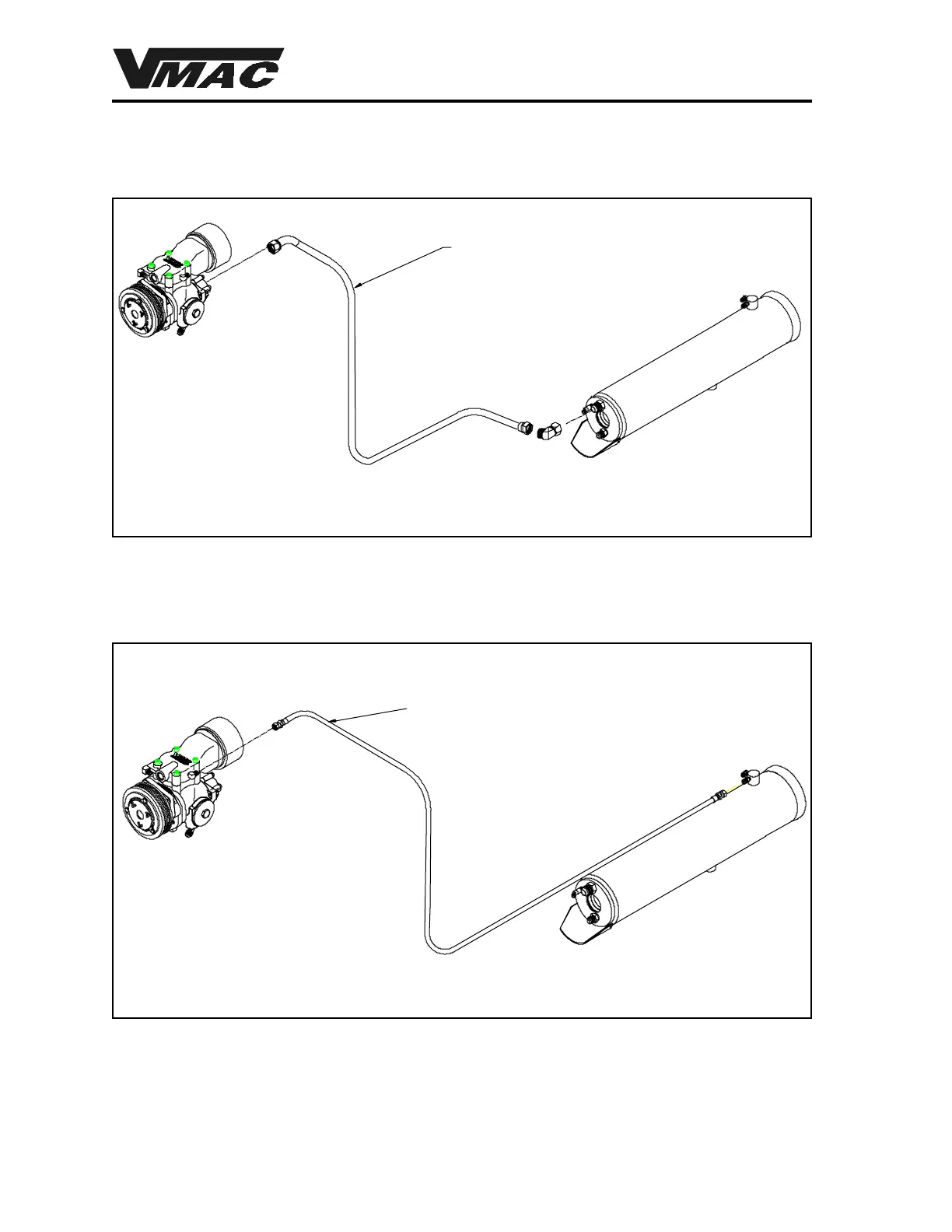

Main Air Line 3/4" x 46-1/2"
Part #17311
3. Connect the 45 degree swaged fitting of the
3
/4“ x 46
1
/2“main air line (part #17311) to the
compressor fitting (Figure 18) and to the air tank at location 1 (Figure 16). Route the lines
to clear the exhaust manifold, along the frame and past the body mount to the tank
(Figure 20).
4. Connect the
5
/16“ x 77
1
/2“ scavenge line (part #17314) to the regulator fitting and to the air
tank at location 3 (Figure 16). Also route this line past the body mount, along the frame and
clear of the exhaust manifold (Figure 21).
Figure 20
DOCUMENT 19297
Scavenge Line 5/16" x 77-1/2"
Part #17314
28
Figure 21
