Vmac VR7000 - Page 31

Pressure Control Line
1/4" x 72-1/2"
Part #17313
29
DOCUMENT 19297

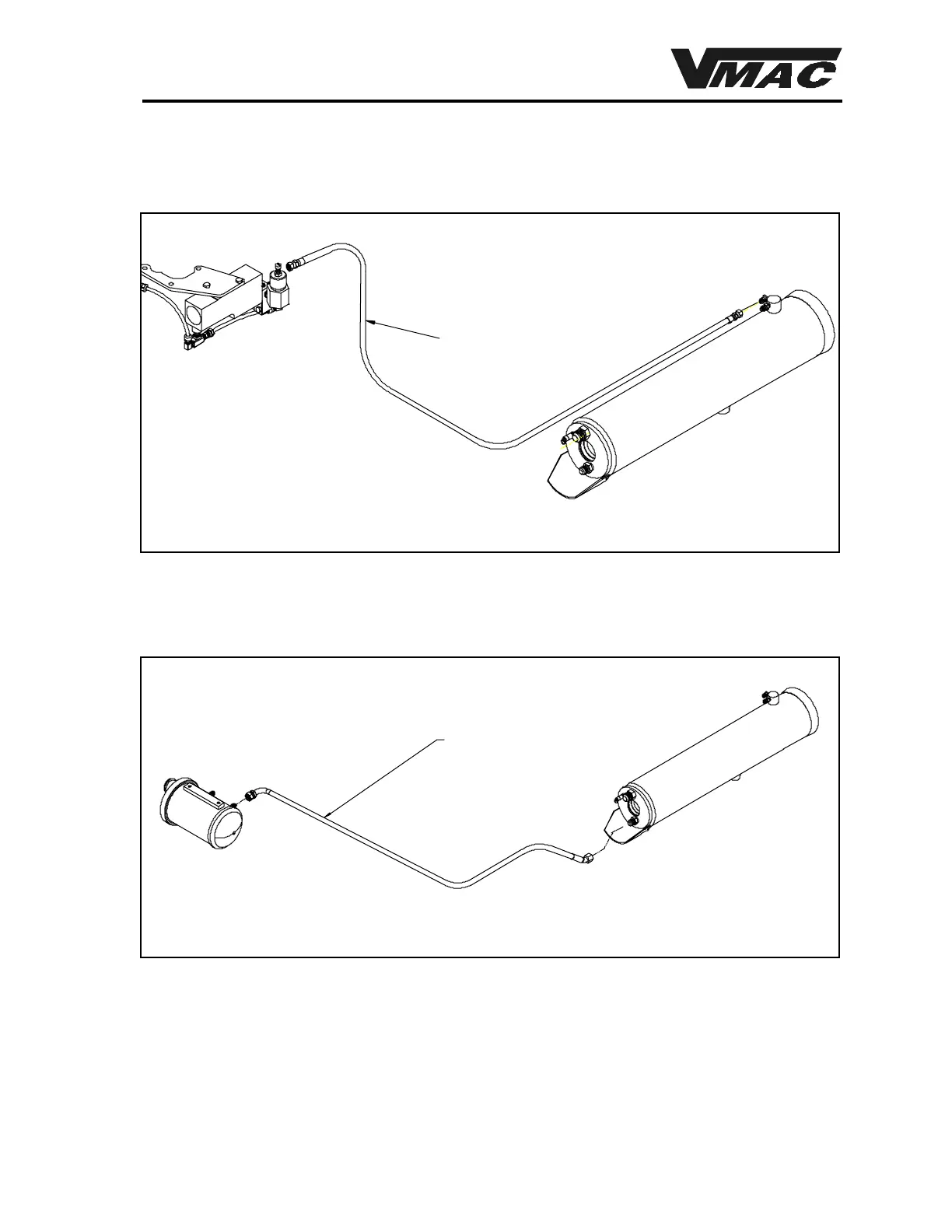

5. Connect the
1
/4“ x 72
1
/2“ pressure control line (part #17313) to the tank fitting at location 2
(Figure 16) and to the 90 degree fitting at the pressure regulator (Figure 22). Route this line
above the body mount and across the fender liner to the regulator. Make sure the lines do
not contact the exhaust manifold.
Figure 22
6. Connect the 90 degree end of the
1
/2“ x 71
1
/2“ tank to cooler oil return line (part #17315)
to driver’s side fitting on the cooler (Figure 23) and 45 degree end to the tank fitting at
location 4 (Figure 16). Route this line through the body mount and along the fender liner.
Figure 23
Oil Ret urn Line
Tank to Cooler
1/2" x 71-1/2"
Part #17315
