7. Connect the
1
/2“ x 31
1
/2“ oil return line (Part #17316) to the passenger side fitting on the oil
cooler. Connect the end with the 45 degree elbow to the 90 degree elbow fitting on the
alternator side of the remote filter (Figure 24).

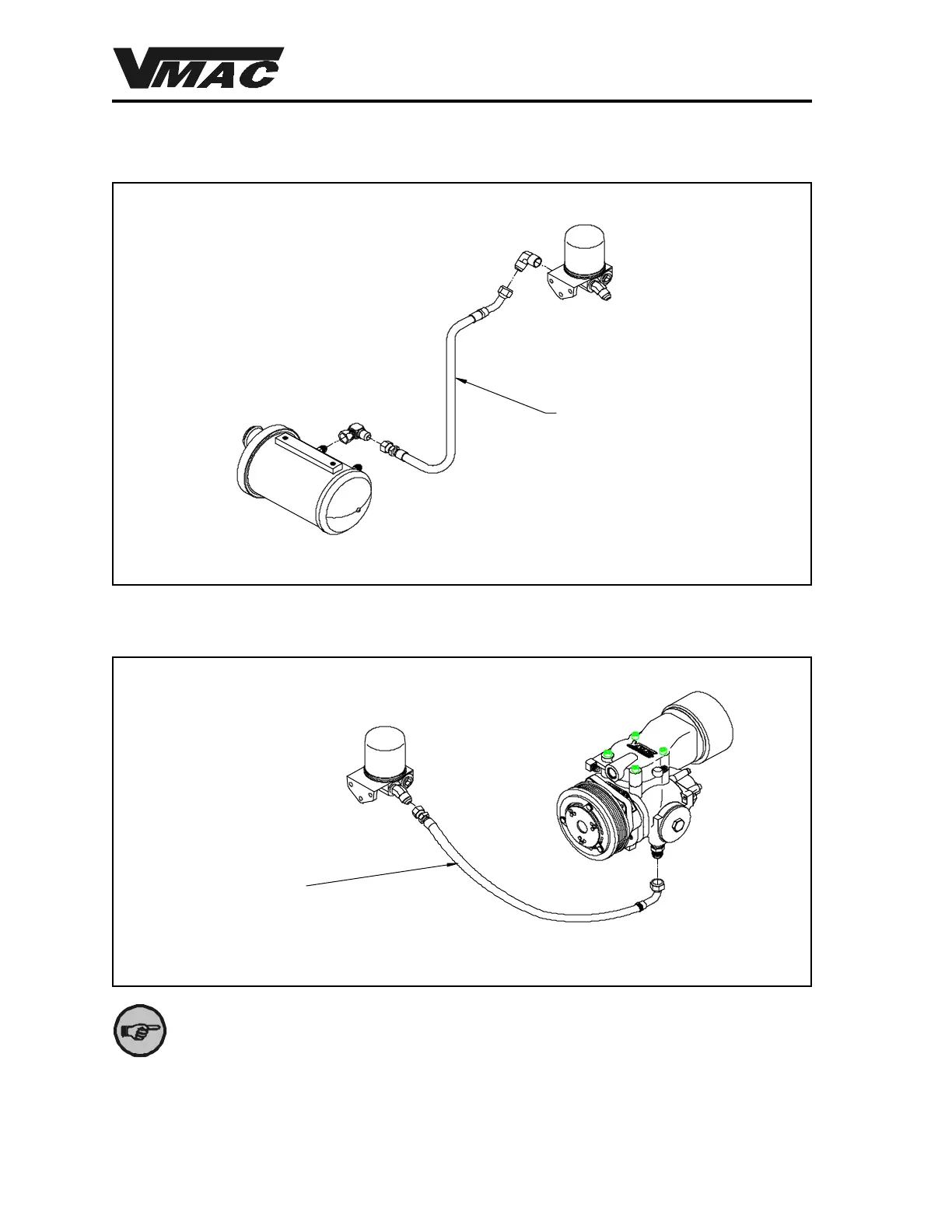

Figure 24
8. Connect the
1
/2“ x 13“ oil return line (Part #17312) between the oil cooler and the fitting on
the bottom of the compressor (Figure 25).
Figure 25
30
DOCUMENT 19297
Oil Return Line
Cooler to Filter
1/2" x 31-1/2"
Part #17316
Oil Return Line
Filter to Compressor
1/2" x 13"
Part #17312
NOTE
For a complete view of the system with all lines shown, see the Illustrated Parts List
diagram at the back of this manual.
