37
DOCUMENT 19298
13. Fit the inner throttle controller cable through the throttle pull bracket nipple, install the cable
stop nipple, pull the inner cable tight and adjust the nipple so that there is
1
/2“ between the
nipple and the pull bracket.
This distance may need to be adjusted if engine speed exceeds 2200 RPM when the system
is operated at full flow. The throttle controller is pre-set and does not require adjustment.

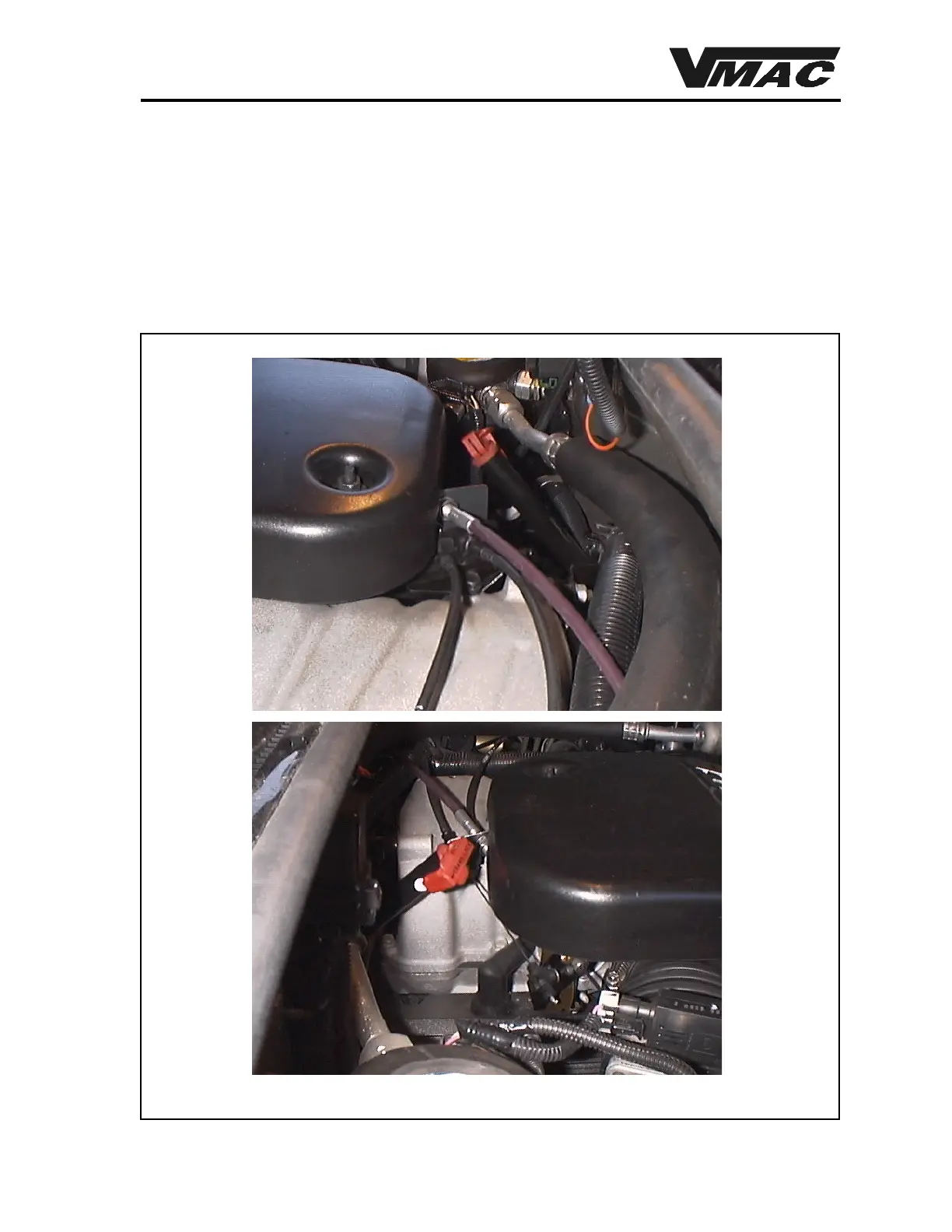

14. Install the air intake plastic cover and make sure that it does not interfere with the throttle
pull bracket. Figure 30 shows two views of the installation.
Figure 30
