4 Oil filter bracket, oil cooler, oil pres‐
sure and oil supply line
Assembly overview - oil filter bracket and oil cooler
⇒ page 120 .
Checking oil pressure and oil pressure switch ⇒ page 121 .
Assembly overview -oil supply line to turbocharger ⇒ page 123
Removing and installing oil supply line to turbocharger
⇒ page 123

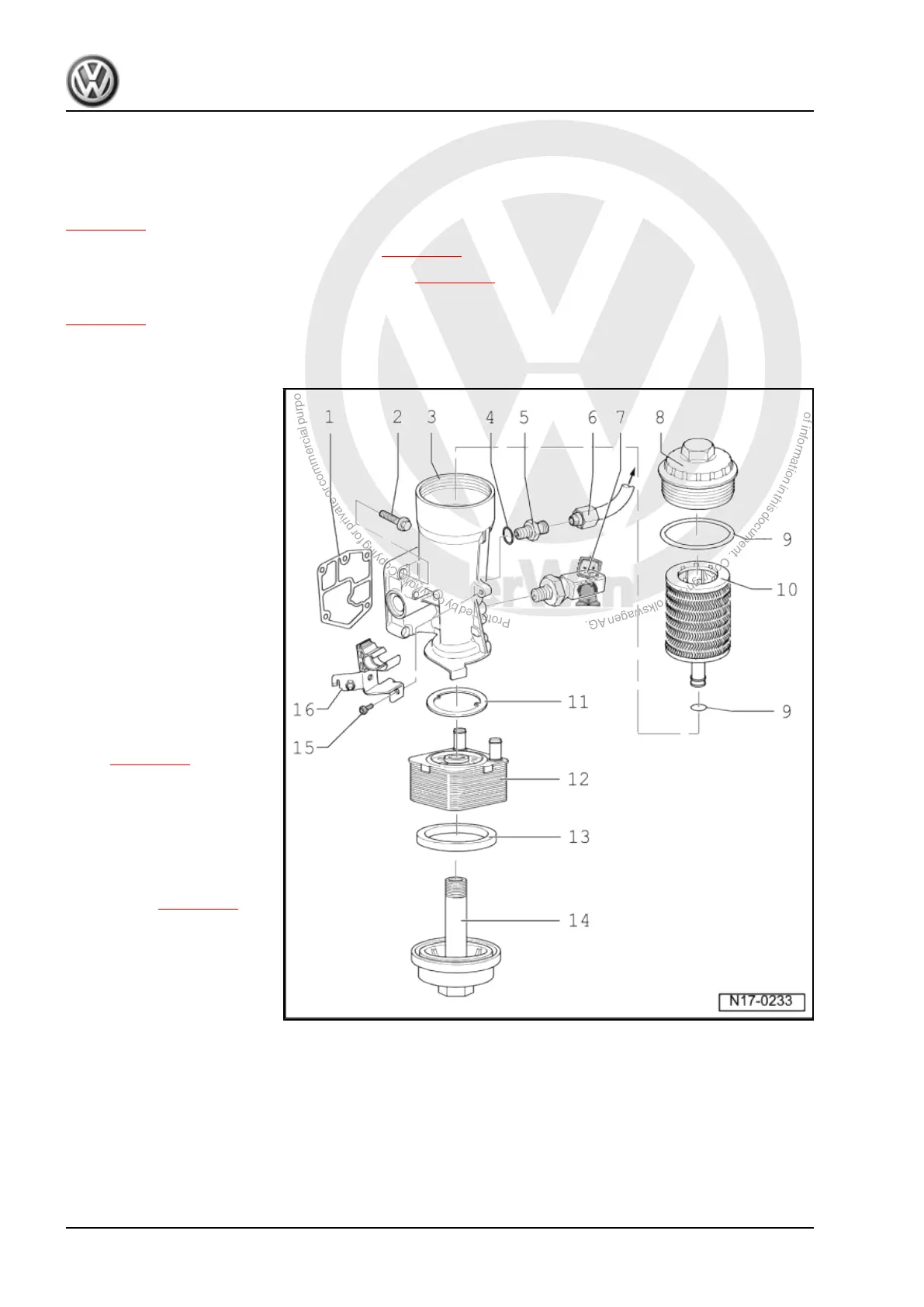

4.1 Assembly overview - oil filter bracket and oil cooler
1 - Seal
❑ Renew.
2 - 15 Nm +
1
/
4
turn (90°) fur‐
ther
❑ Renew.
❑ First fit upper left and
lower right bolts and
then tighten all four bolts
diagonally.
3 - Oil filter bracket
❑ Ensure clearance to ad‐
jacent components.
4 - Seal
❑ Renew.
5 - Connection, 30 Nm
6 - Oil supply line, 22 Nm
❑ Removing and installing
⇒ page 123 .
❑ To turbocharger.
7 - 0.7 bar oil pressure switch -
F1- , 22 Nm
❑ Identification: brown.
❑ If seal is leaking, nip
open and renew.
❑ Check
⇒ page 121 .
8 - Sealing cap, 25 Nm
9 - O-ring
❑ Renew.
10 - Oil filter element
❑ See note.
❑ Observe change intervals.
11 - Seal
❑ Renew.
❑ Lubricate before installing.
❑ Fit into lugs on oil cooler.
12 - Oil cooler
❑ Ensure clearance to adjacent components.
Golf 2004 ➤ , Golf Plus 2005 ➤ , Passat 2006 ➤ , Touran 2003 ➤
4-cylinder diesel engine (2.0 l engine, 4 valve) - Edition 02.2011
120 Rep. gr.17 - Lubrication
