2.2 Removing and installing oil sump

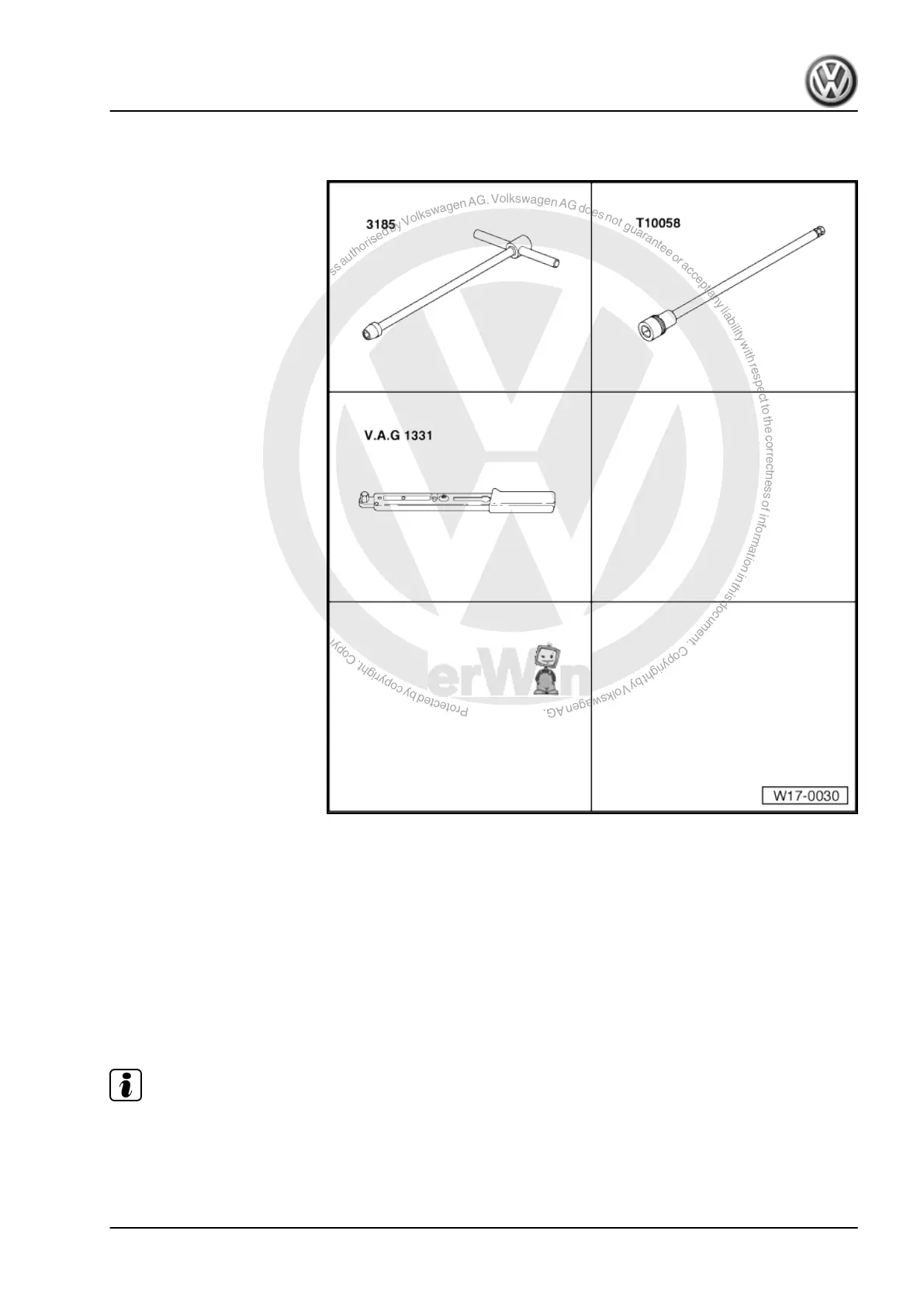

Special tools and workshop
equipment required
♦ Jointed wrench 10 mm -
VAS 3185-
♦ Special wrench, long reach
-T10058-
♦ Torque wrench (5…50 Nm)
-V.A.G 1331-
Special tools and workshop equipment required
♦ Silicone sealant -D176404A2-
♦ Hand drill with plastic brush attachment
♦ Eye protection
♦ Flat scraper
Removing
– Remove noise insulation tray ⇒ Rep. gr. 50 .
– Drain engine oil ⇒ Maintenance ; Booklet .
Note
Observe environmental regulations for disposal.
– Pull connector off oil level and oil temperature sender -G266- .
– Remove connecting bolts for sump to gearbox.
Golf 2004 ➤ , Golf Plus 2005 ➤ , Passat 2006 ➤ , Touran 2003 ➤
4-cylinder diesel engine (2.0 l engine, 4 valve) - Edition 02.2011
2. Parts of lubrication system (Golf, Golf Plus, Touran) 89
