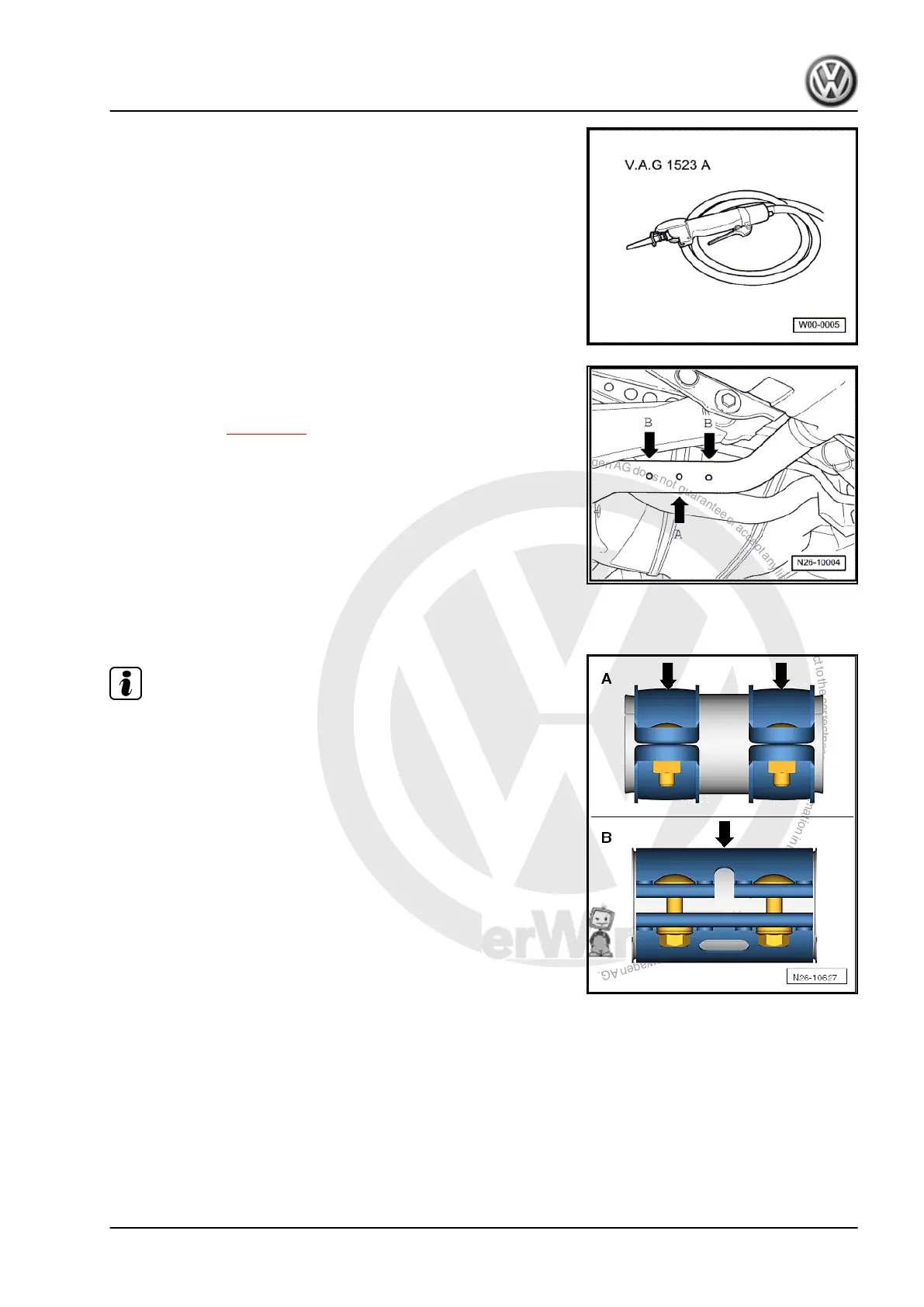

♦ Pneumatic sabre saw -V.A.G 1523/A-
– Cut exhaust pipe at right angles at separating point -A-.
– When installing, position repair clamp at side markings -B-.
Specified torque ⇒ page 279
2.4 Installation position and specified torque
of the clamp
Note
Gradual introduction of clamp with continuous clip.
Specified torque and installation dimensions of clamp
Clamp -A- with 2 individual clips.
Specified torque: 25 Nm.
Installation dimensions -a- 5 mm (only for front clamp)
Clamp -B- with continuous clip.
Specified torque: 35 Nm.
Installation dimensions -a- 8.5 mm (only for front clamp)
Golf 2004 ➤ , Golf Plus 2005 ➤ , Passat 2006 ➤ , Touran 2003 ➤
4-cylinder diesel engine (2.0 l engine, 4 valve) - Edition 02.2011
2. Silencer (Golf, Golf Plus) 279
