1.2 Assembly overview - front exhaust pipe
with particulate filter
Note
♦
Removing and installing exhaust manifold ⇒ page 232
♦
After working on the exhaust system ensure that the system
is not under stress, and that there is sufficient clearance to the
bodywork. If necessary, loosen clamp and align silencer and
exhaust pipe so that sufficient clearance is maintained to the
bodywork and the support rings are evenly loaded.
♦
Renew self-locking nuts.

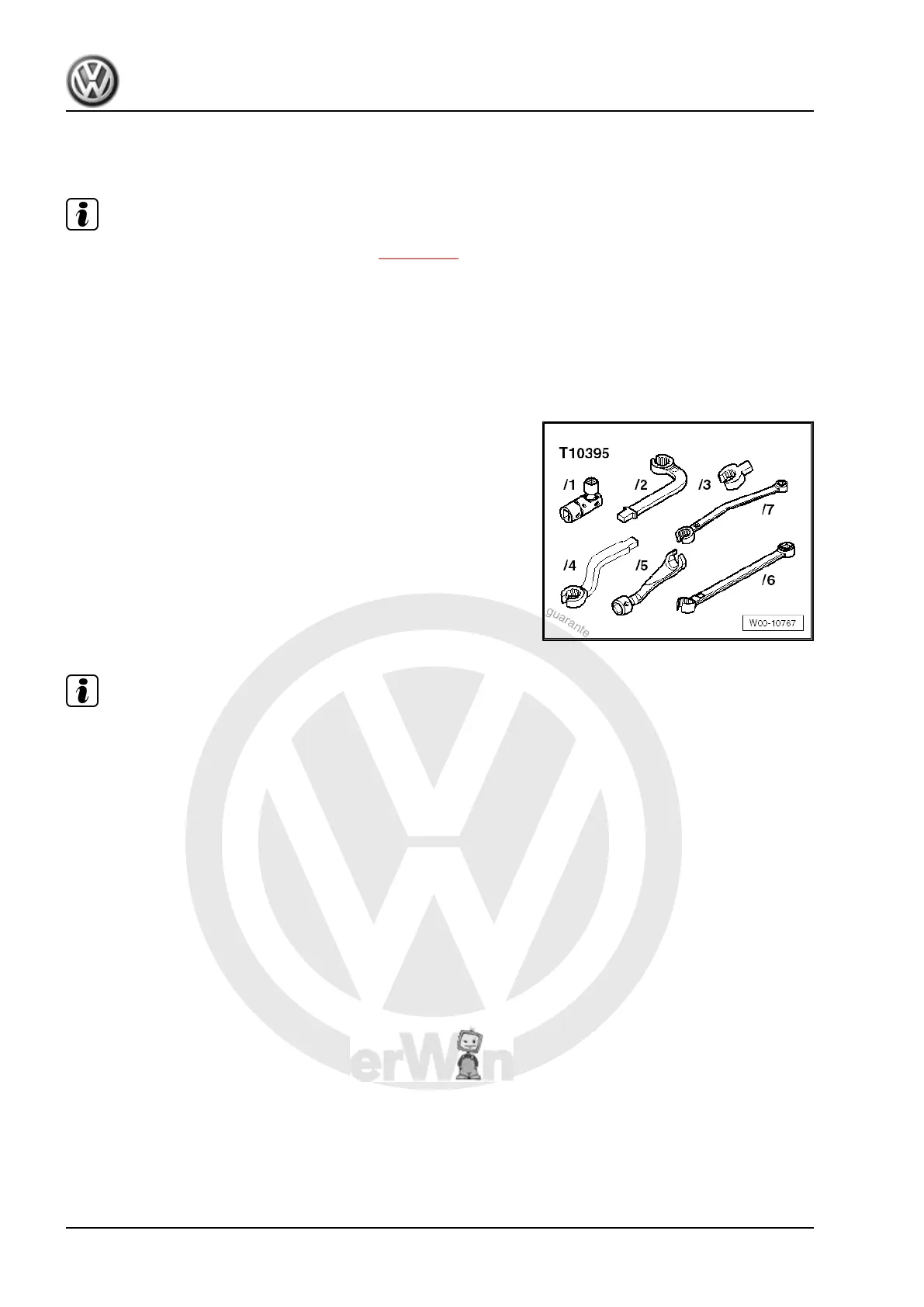

Special tools and workshop equipment required
♦ Tool set, 17 mm -T10395-
Note
If the particulate filter or the exhaust gas pressure sensor 1 -G450- is changed, the exhaust gas pressure sensor
1 -G450- must always be adapted using diagnosis tester : Guided functions; adapting exhaust pressure sensor
1 -G450- .
Golf 2004 ➤ , Golf Plus 2005 ➤ , Passat 2006 ➤ , Touran 2003 ➤
4-cylinder diesel engine (2.0 l engine, 4 valve) - Edition 02.2011
274 Rep. gr.26 - Exhaust system
