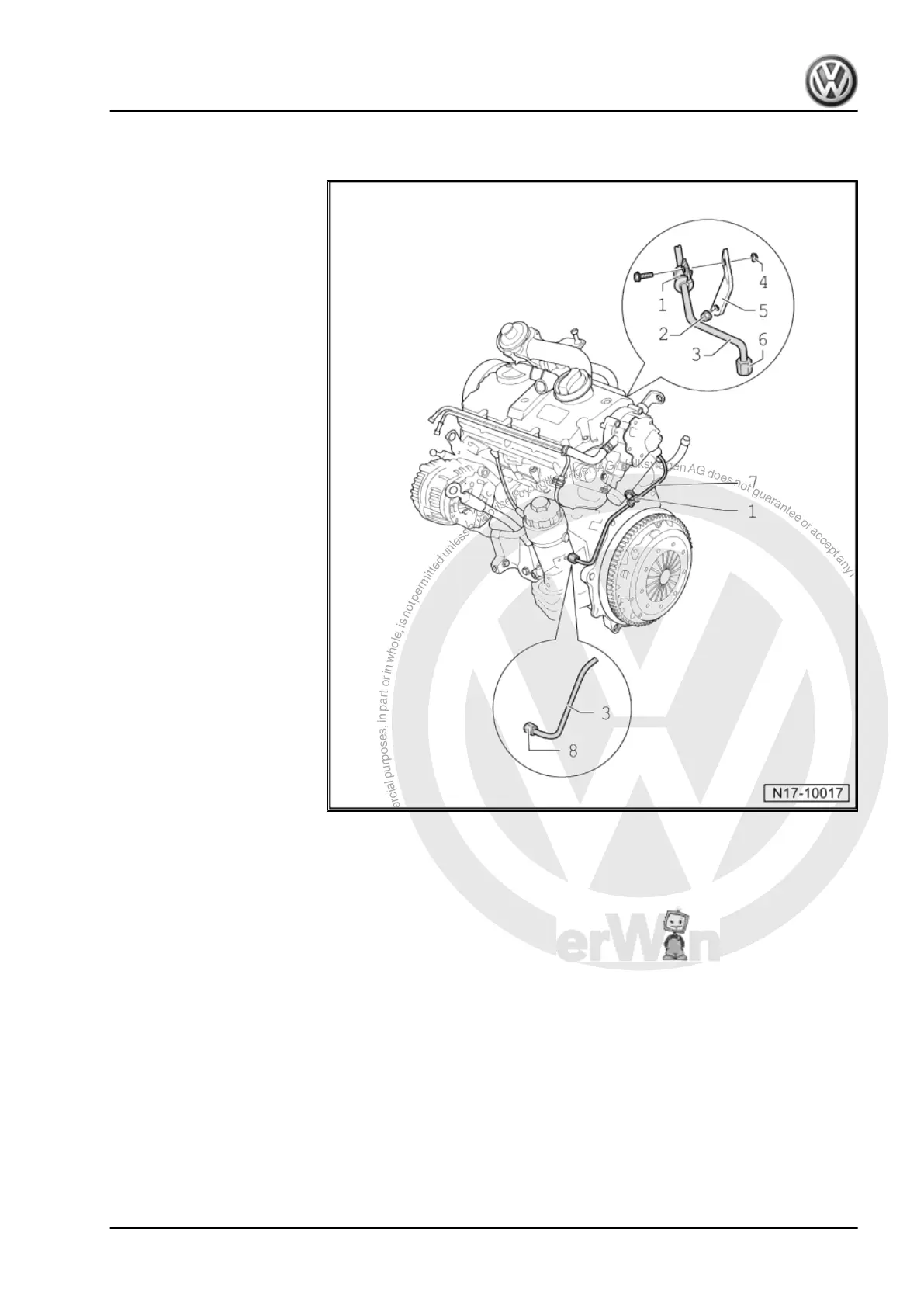

4.3 Assembly overview - oil supply line to turbocharger
1 - Retaining clamp
2 - 25 Nm
❑ Renew.
3 - Oil supply line
❑ To turbocharger.
4 - 10 Nm
5 - Retainer
6 - Union nut, 22 Nm
7 - 10 Nm
8 - Union nut, 22 Nm
4.4 Removing and installing oil supply line
to turbocharger
Removing
– Remove noise insulation tray ⇒ General body repairs, exteri‐
or; Rep. gr. 50 ; Body - front; Assembly overview - noise
insulation .
– Remove air filter housing.
– Loosen union nuts on oil filter bracket and turbocharger.
– Loosen securing bolts for retaining clips.
– Remove oil supply line.
Golf 2004 ➤ , Golf Plus 2005 ➤ , Passat 2006 ➤ , Touran 2003 ➤
4-cylinder diesel engine (2.0 l engine, 4 valve) - Edition 02.2011
4. Oil filter bracket, oil cooler, oil pressure and oil supply line 123
