5.6.1 Fuel filter upper part
Type A ⇒ page 221
Type B ⇒ page 221

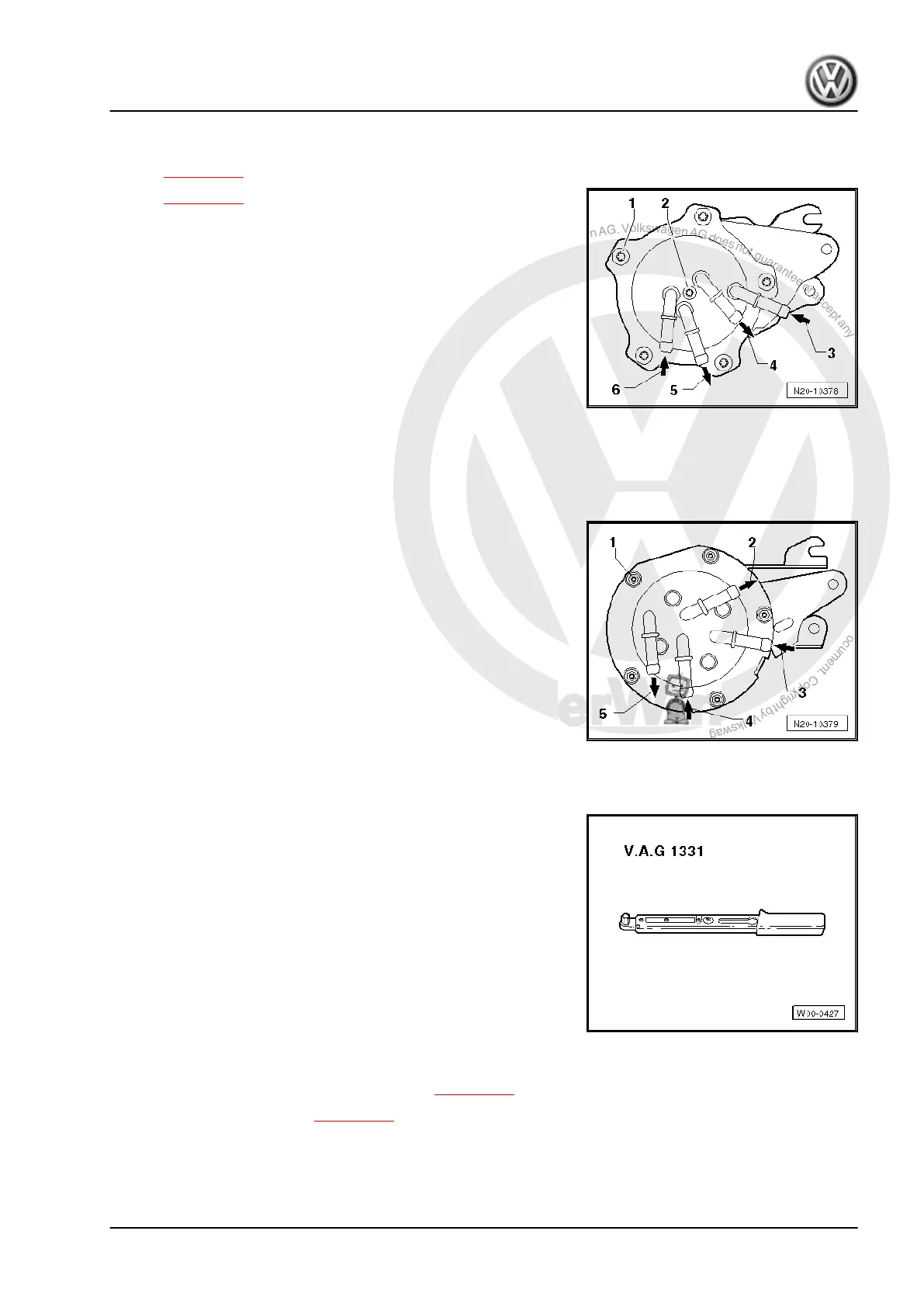

Fuel filter upper part, type A
1 - 8 Nm
2 - Plug for water extraction (remove and extract about 100 cm
3
liquid using hand-operated vacuum pump with accessories -
V.A.G 1390- and water drainage container -V.A.G 1390/1- , renew
seal)
3 - Fuel tank supply line, white or white marking. Check for secure
seating.
4 - Fuel tank return line, blue or blue marking. Check for secure
seating.
5 - Fuel supply line to engine, white or white marking. Check for
secure seating.
6 - Fuel return line from engine, blue or blue marking. Check for
secure seating.
Fuel filter upper part, type B
1 - 5 Nm
2 - Fuel tank return line, blue or blue marking. Check for secure
seating.
3 - Fuel tank supply line, white or white marking. Check for secure
seating.
4 - Fuel return line from engine, blue or blue marking. Check for
secure seating.
5 - Fuel supply line to engine, white or white marking. Check for
secure seating.
5.7 Removing and installing fuel cooler
Special tools and workshop equipment required
♦ Torque wrench (5…50 Nm) -V.A.G 1331-
Removing
Note safety precautions before beginning work ⇒ page 150 .
Observe rules for cleanliness ⇒ page 151 .
Golf 2004 ➤ , Golf Plus 2005 ➤ , Passat 2006 ➤ , Touran 2003 ➤
4-cylinder diesel engine (2.0 l engine, 4 valve) - Edition 02.2011
5. Parts of fuel supply system (Passat) 221
