26 – Exhaust system
1 Front exhaust pipe
Note
♦
Removing and installing exhaust manifold ⇒ page 232
♦
After working on the exhaust system ensure that the system
is not under stress, and that there is sufficient clearance to the
bodywork. If necessary, loosen clamp and align silencer and
exhaust pipe so that sufficient clearance is maintained to the
bodywork and the support rings are evenly loaded.
♦
Renew self-locking nuts.
Assembly overview - front exhaust pipe with catalytic converter
⇒ page 273
Assembly overview - front exhaust pipe with particulate filter
⇒ page 274 .

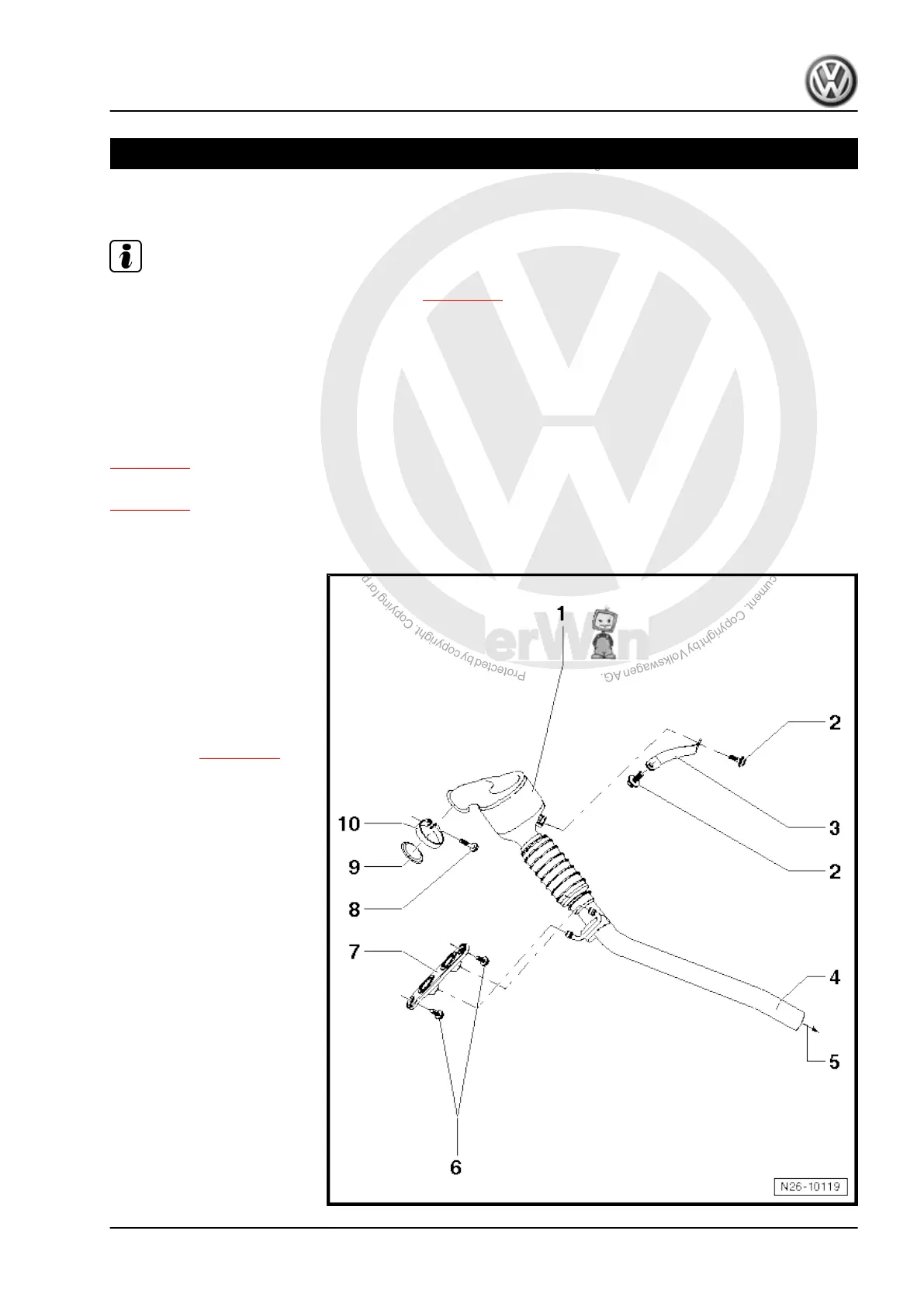

1.1 Assembly overview - front exhaust pipe with catalytic converter
1 - Front exhaust pipe with cat‐
alytic converter
2 - 40 Nm
3 - Support
4 - Marking
❑ For clamp.
❑ Specified torque and in‐
stallation position of
clamp ⇒ page 279
5 - To front silencer
6 - 25 Nm
7 - Mounting
❑ Renew if damaged.
8 - 7 Nm
9 - Seal
❑ Note installation posi‐
tion.
10 - Clip
Golf 2004 ➤ , Golf Plus 2005 ➤ , Passat 2006 ➤ , Touran 2003 ➤
4-cylinder diesel engine (2.0 l engine, 4 valve) - Edition 02.2011
1. Front exhaust pipe 273
